Wolff Audio Freq

FREQ is a sweepable 4-band Proportional Q parametric EQ designed for the 500 Series. Engineered by Paul Wolff, it combines classic musical shaping with precise corrective control, delivering exceptional accuracy and flexibility across any production or mixing environment.

True to proportional Q design, gentle adjustments remain wide and natural, while deeper boosts or cuts progressively narrow for controlled, surgical work. FREQ extends this concept further with 1/3-octave capability, allowing the same EQ to perform both broad tonal shaping and tight notching.

The High and Low bands include a dedicated Wide mode, providing smooth, three-octave curves that enhance extremes without the artifacts or headroom issues of traditional shelving filters. The Mid bands feature a 1/3-octave lock for precise frequency targeting when needed.

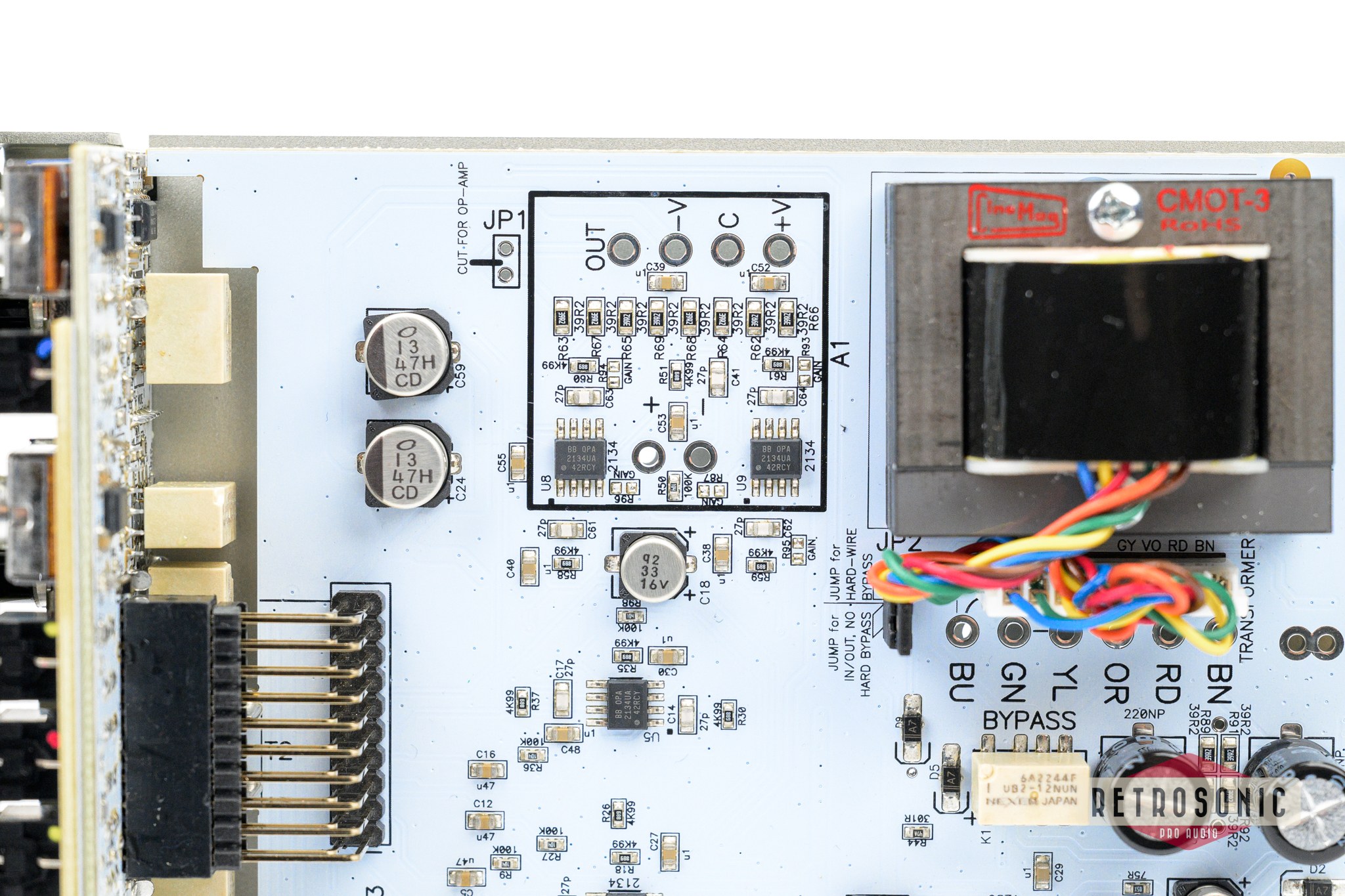

A custom Cinemag nickel and steel output transformer ensures clarity and transparency, while a relay-based hard-wire bypass preserves signal integrity.

Specifications

• 4-band equalizer with Proportional Q
• HF band: 2 kHz to 20 kHz with Wide mode
• HM band: 350 Hz to 10 kHz with 1/3-octave lock
• LF band: 25 Hz to 700 Hz with Wide mode
• LM band: 75 Hz to 2.2 kHz with 1/3-octave lock
• Custom Cinemag nickel and steel output transformer
• True relay hard-wire EQ bypass
• Distortion under 0.03% (100 Hz and above)
• Clipping onset at +28 dBu
• Current draw under 100 mA per rail
