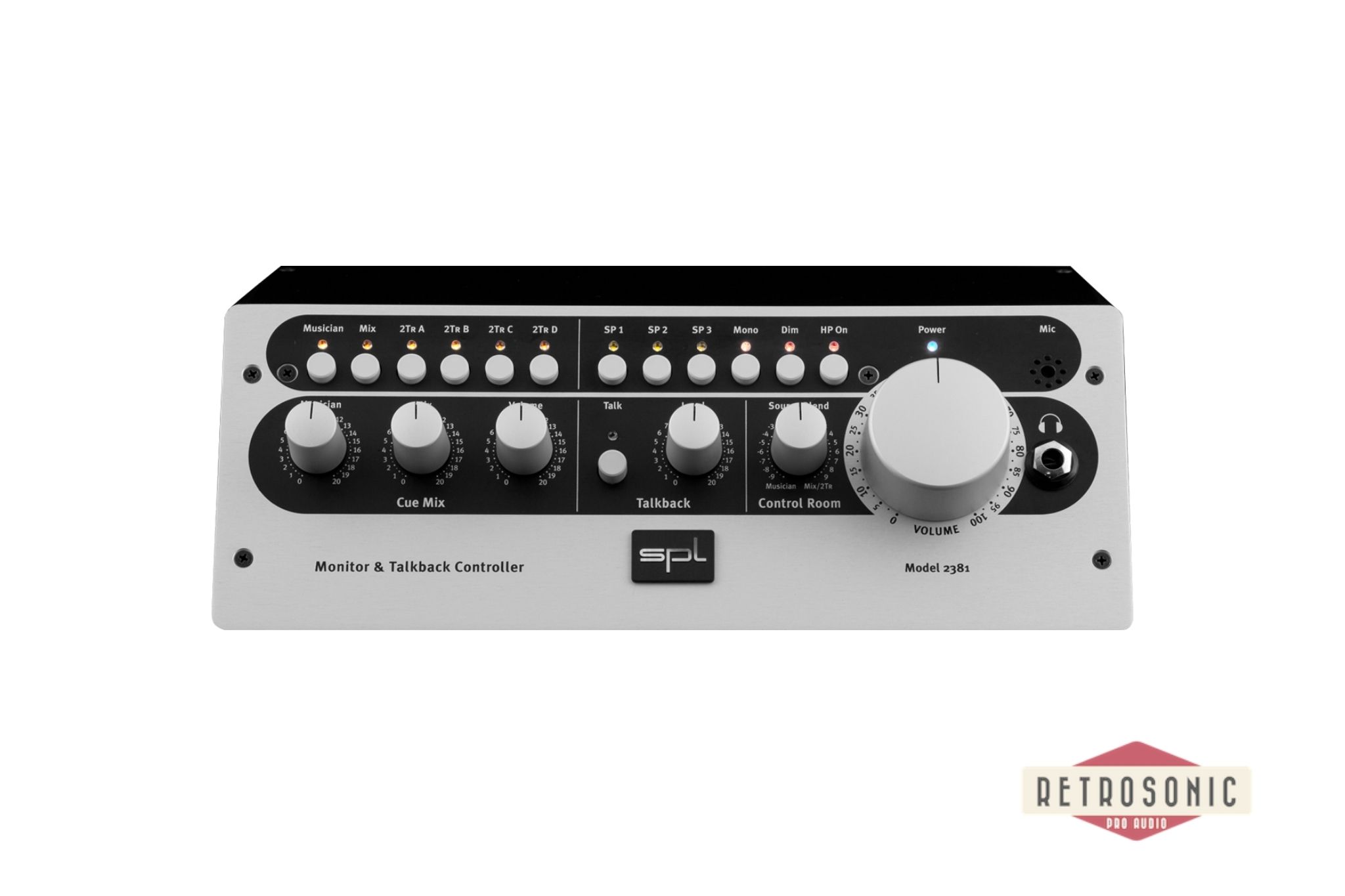

format_quote The MTC is the complete monitoring solution. Source and loudspeaker selection, mono, dim and mute switching functions, talkback with built-in talkback microphone up to the creation of a headphone mix for the artist.

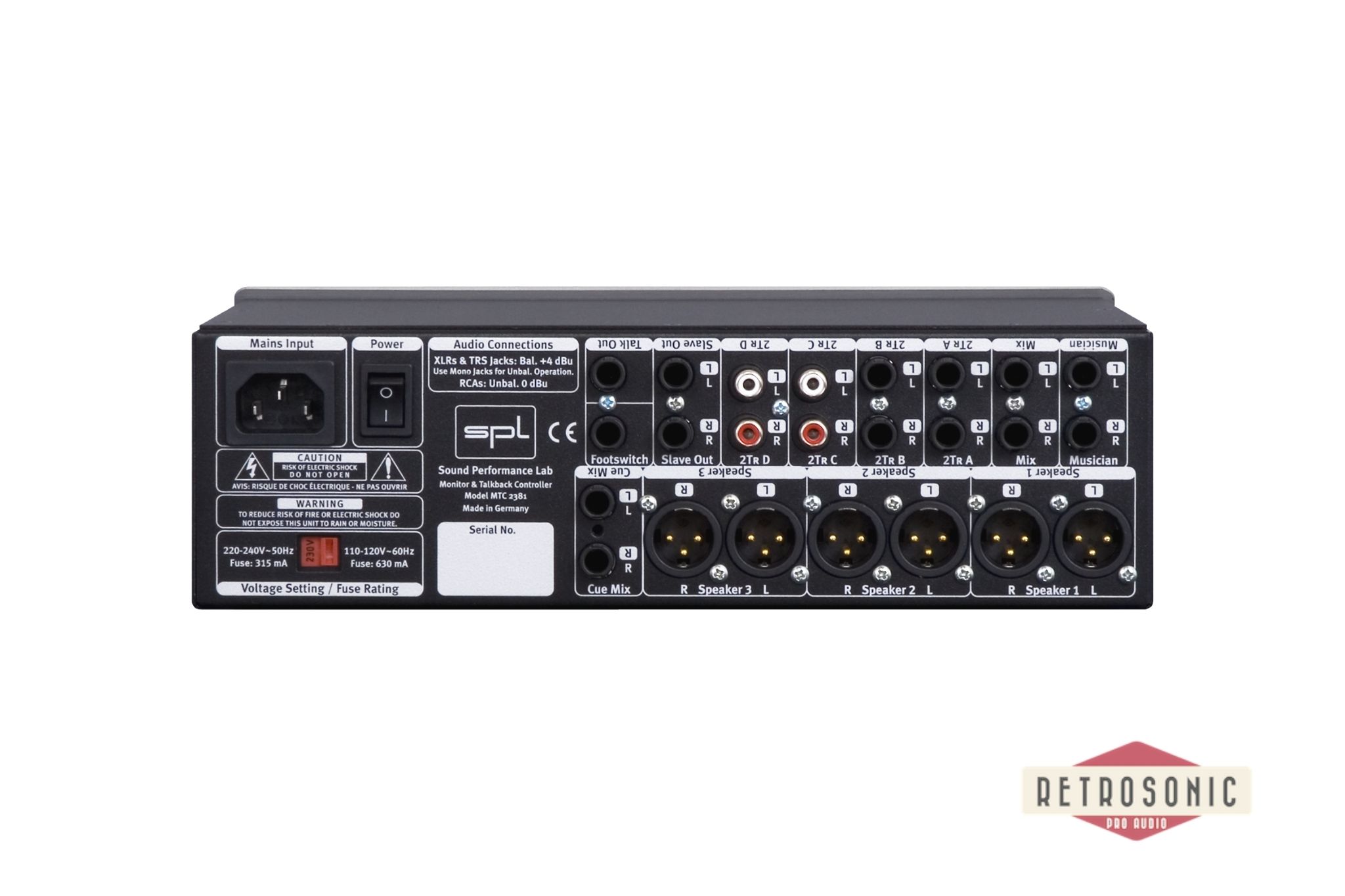

The MTC offers six stereo inputs. The Musician input should preferably contain the musician’s signal, so that this signal is also available at the Musician control in the Cue Mix section.
The Mix input is then intended for the DAW’s master output. Musician and Mix and 2TrA and 2TrB are balanced input stages.
A mono signal should always be fed into the left channel to be heard on both channels in the phantom center.
2Tr C and 2Tr D are unbalanced and have RCA connectors. HiFi equipment can also be connected here.
All inputs are additive! The MTC mixes all input signals together.
The slave out stereo output always carries out the selected input signal(s) (except Musician) unprocessed. Among other things, metering can be connected here.
Three pairs of loudspeakers can also be operated in parallel on the MTC.
The volume is controlled by an analog potentiometer and a 45mm full aluminium knob.
With the Source Blend control an optimal monitor mix can be created quickly.
The headphone output can be used to listen in parallel to the selected speaker pair.
The headphones are switched on or off with the HP On switch, so that they can remain plugged in even if they are to be muted.
