SPL ADC8

The ADC8 analog-to-digital converter module is a pre-installed or re-installable ADAT digital output
for the SPL P8 – eight-channel microphone preamplifer with discrete technology.

Centerpiece

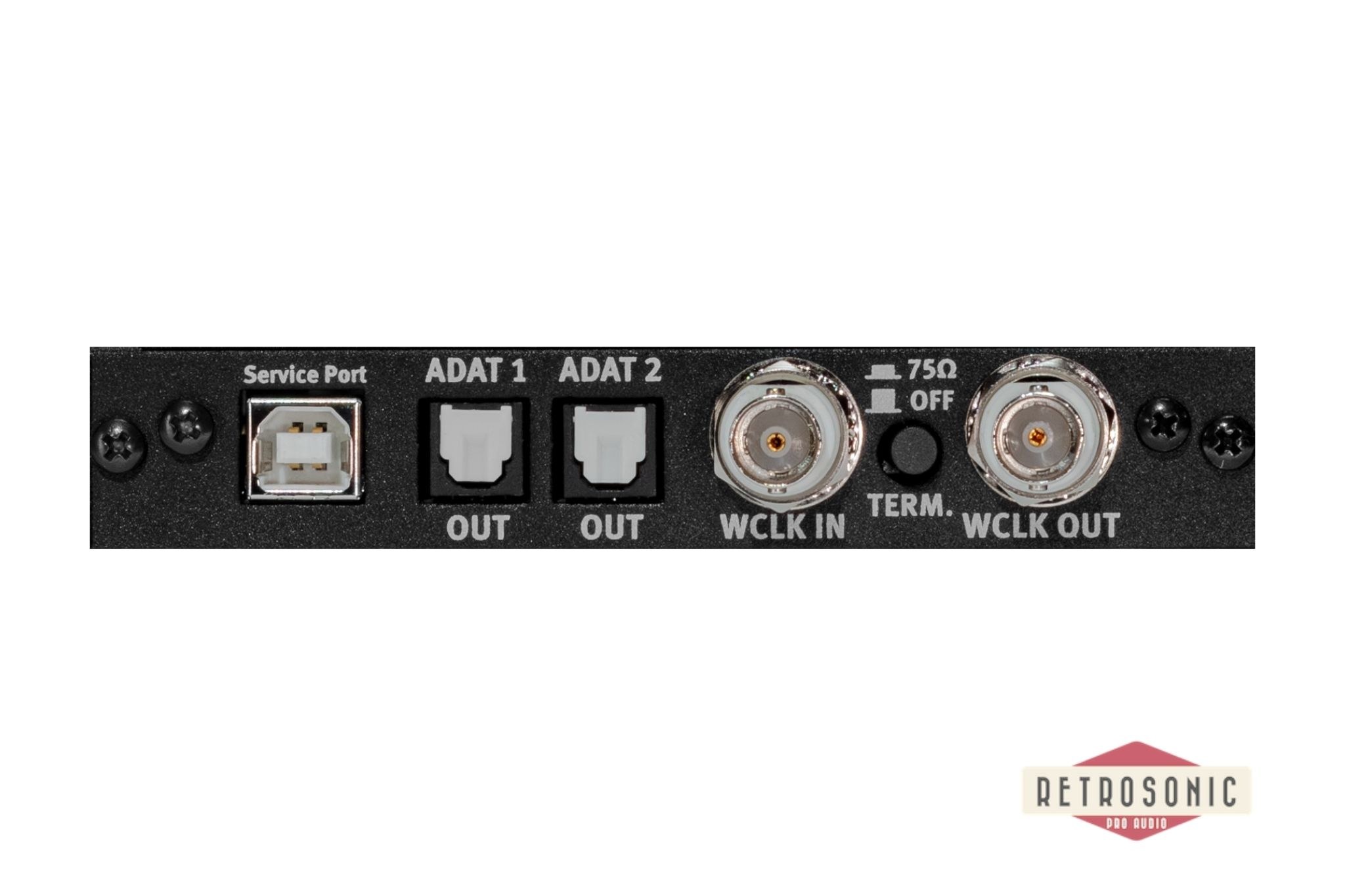

The centerpiece is an eight-channel 24-bit converter chip (AKM 5538) with sampling rates from 44.1 kHz up to 192 kHz. The converter module offers an ADAT output (TOSLINK) and a word clock in and output. Highly accurate quartz oscillators ensure a clean, low-jitter master clock and
as soon as an external synchronization signal is present, all internal oscillators are automatically
disabled to prevent interference.

Pre-installed
P8 devices with pre-installed ADC8 are usually build to order. Please ask you dealer for a BTO unit if the device is not offered with the optional converter installed.

Reinstalled
The ADC8 converter module can also be reinstalled after purchase by qualified technicians.

Important:
The ADC8 converter is only compatible to the product SPL P8 – eight-channel microphone preamplifier with discrete technology. The converter module cannot be installed in other devices.
