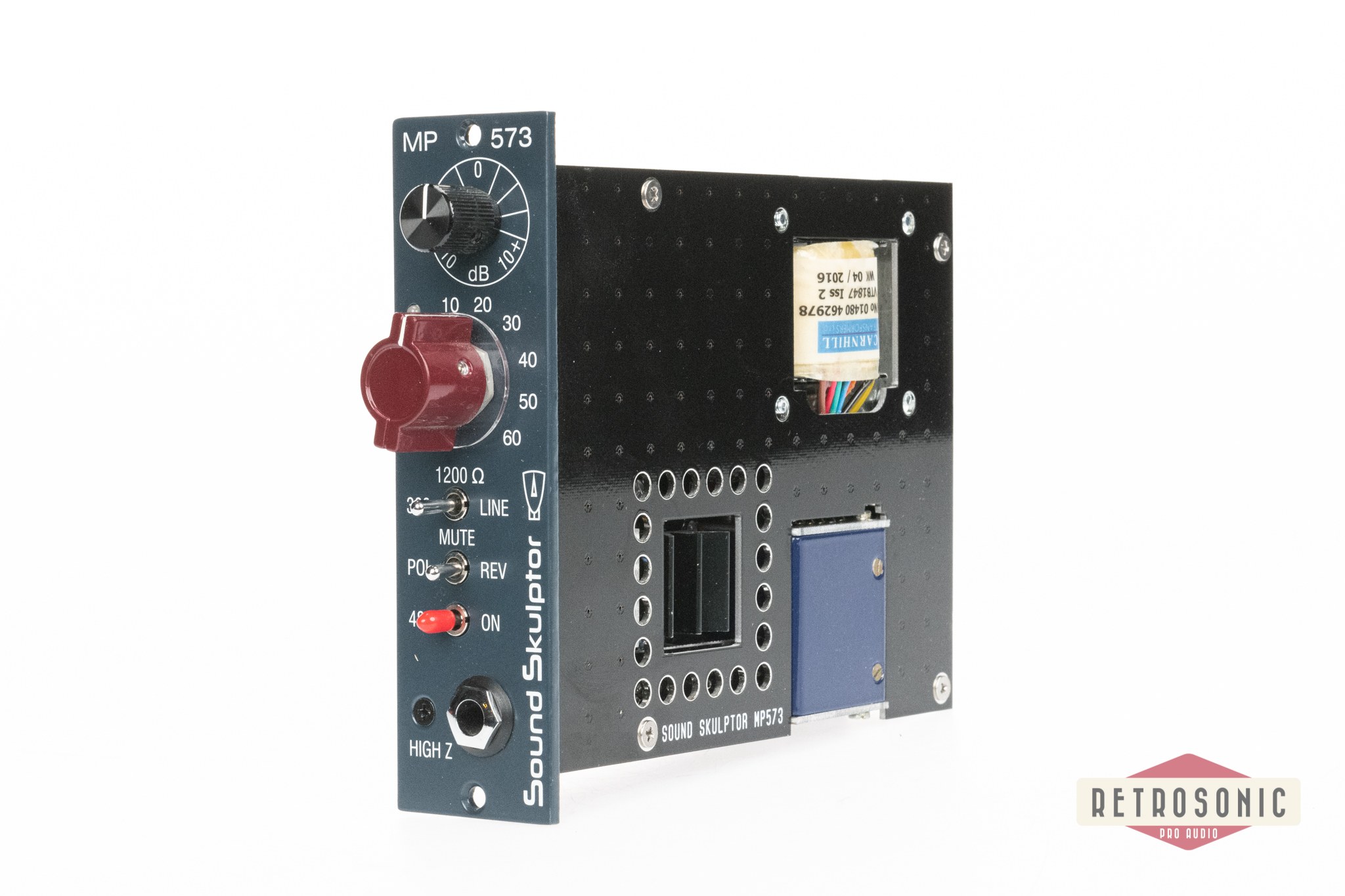

Sound Skulptor 573 500-Series Preamp

The MP573 preamp is a two-stage, single-ended Class A based on the Neve 1290/1073 module design. Easily install it in an API-compatible LunchboxTM rack and start recording. Its sound is full, silky, detailed, and musical, creating a larger-than-life energy that works well within a digital recording environment. The MP573 is perfect for vocals, acoustic instruments, and other close-miked sources that need to stand out in the mix.

Features:

- Single ended class A design

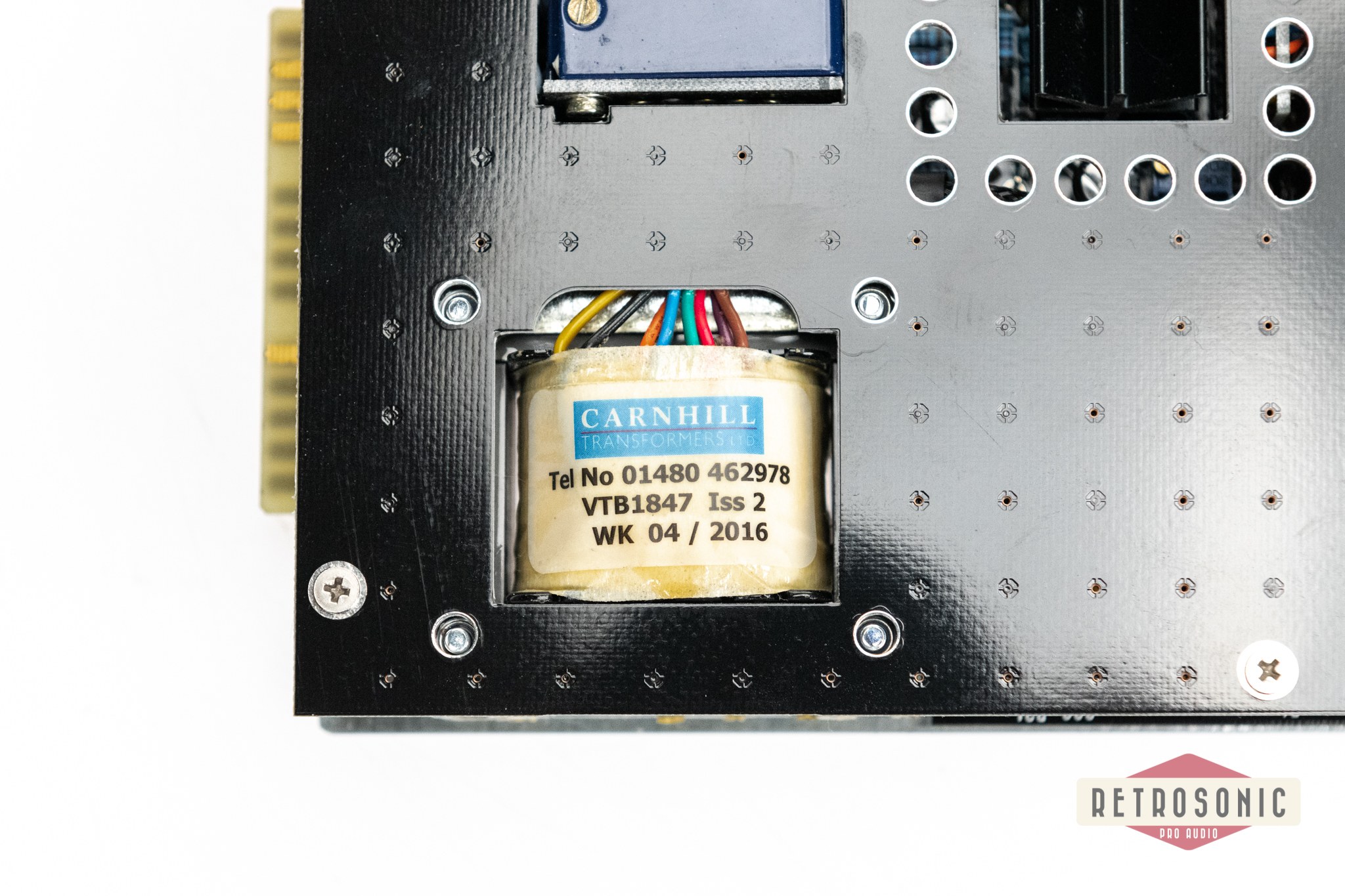

- Carnhill/St. Ives transformers on input and output
- 0 to 70 dB of gain
- Switchable 300 & 1200 Ohms and line level input impedance
- Switchable first stage
- The output stage is biased in a rich Class A with 70mA of iddle current

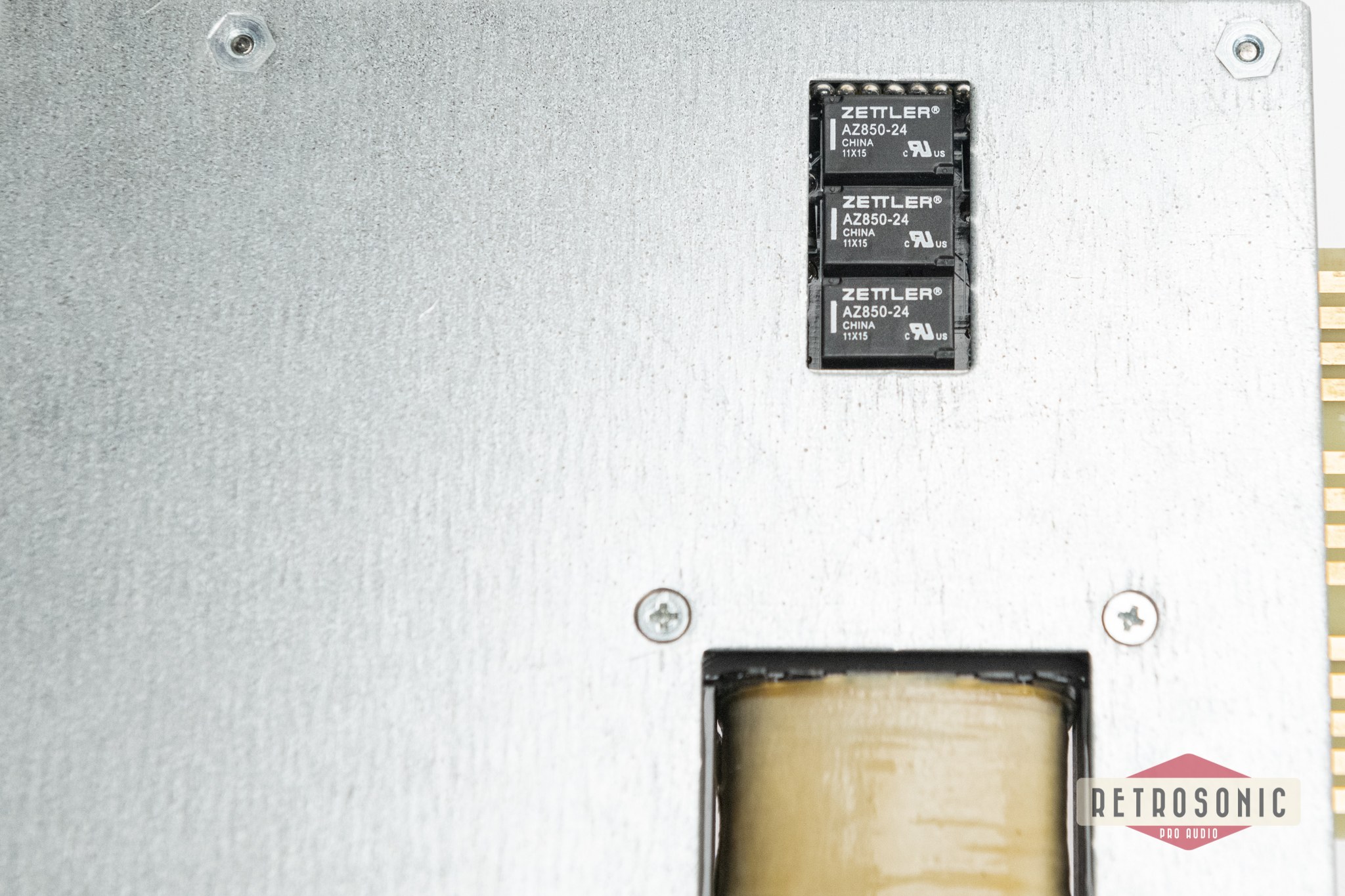

- Fet DI input, relay switched, the signal passes through the input transformer
- Signal/Clip LED monitors clipping in both stages
- 24V supply built from the +/-16V with a linear regulator
- Controlled inrush current for lunchboxes with sensitive power supply
- Golden contacts on relays and switches
- High quality Grayhill gain switch
- High precision aluminium knobs
- Tantalum capacitors in the audio path (as in original)
- High grade 105°C low ESR electrolytic capacitors
- WIMA film capacitors
- High grade double sided PCB with plated holes
- Easy build, dense but straightforward
- Available assembled or as a full kit (everything included)
