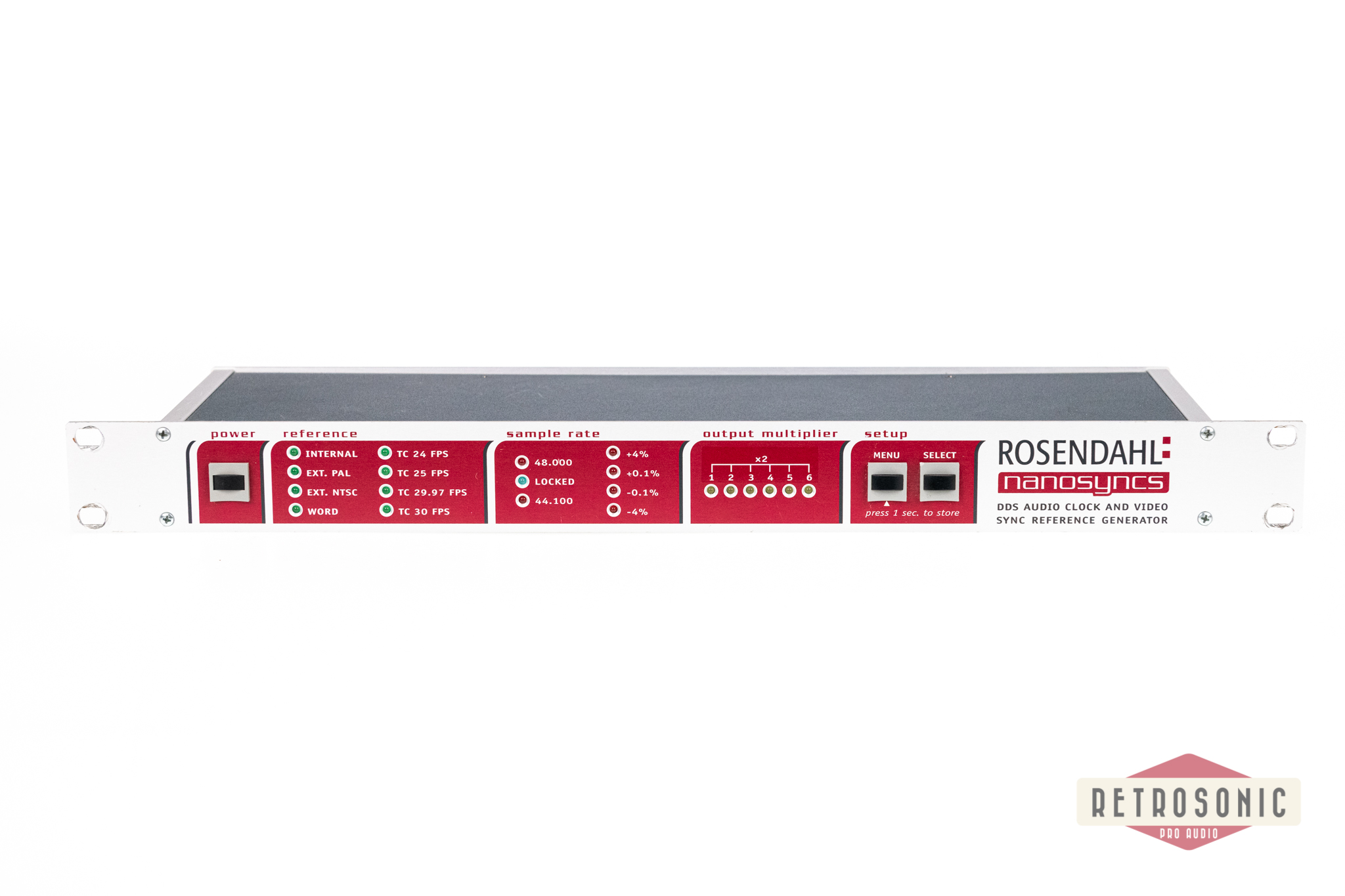

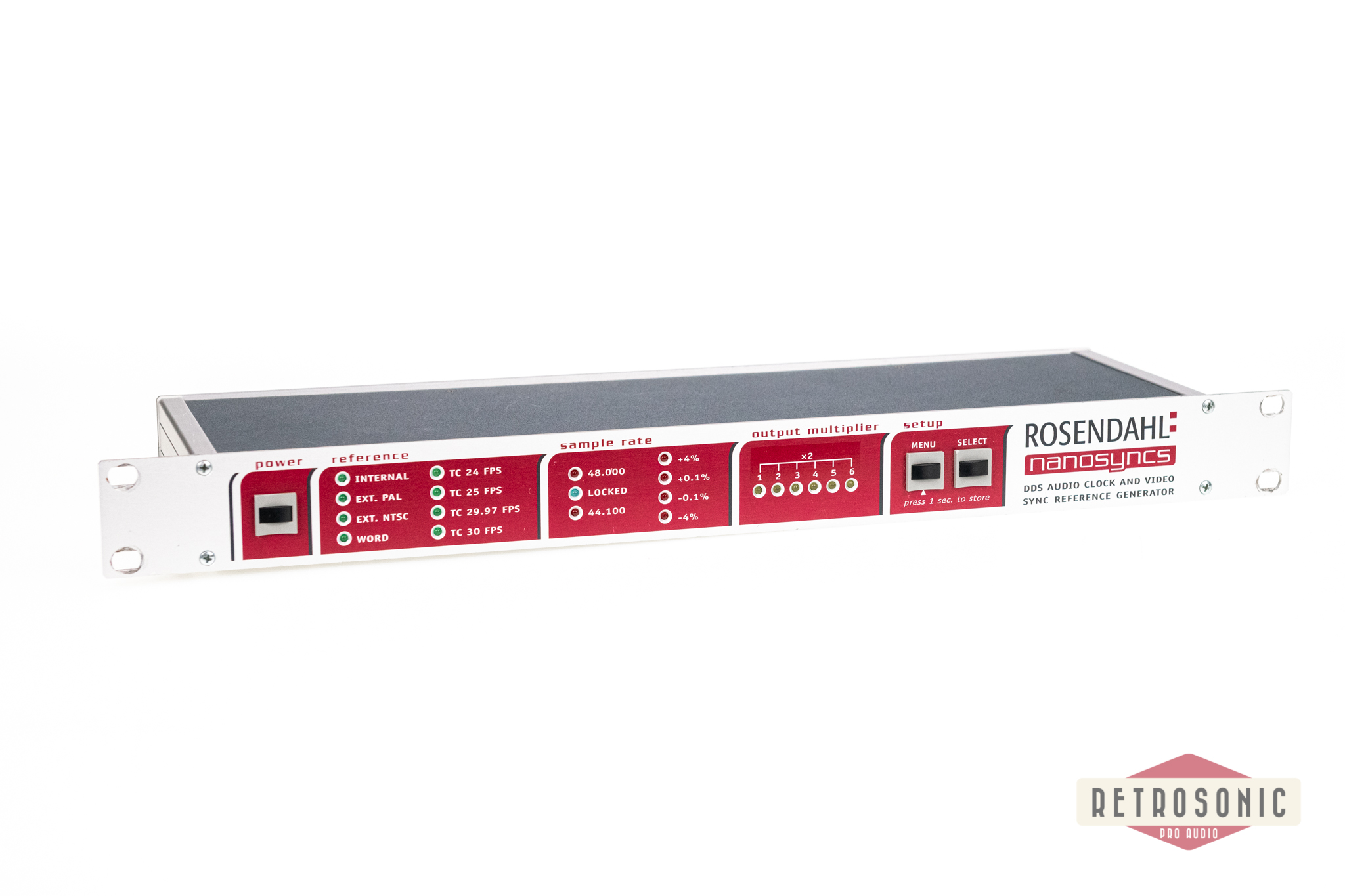

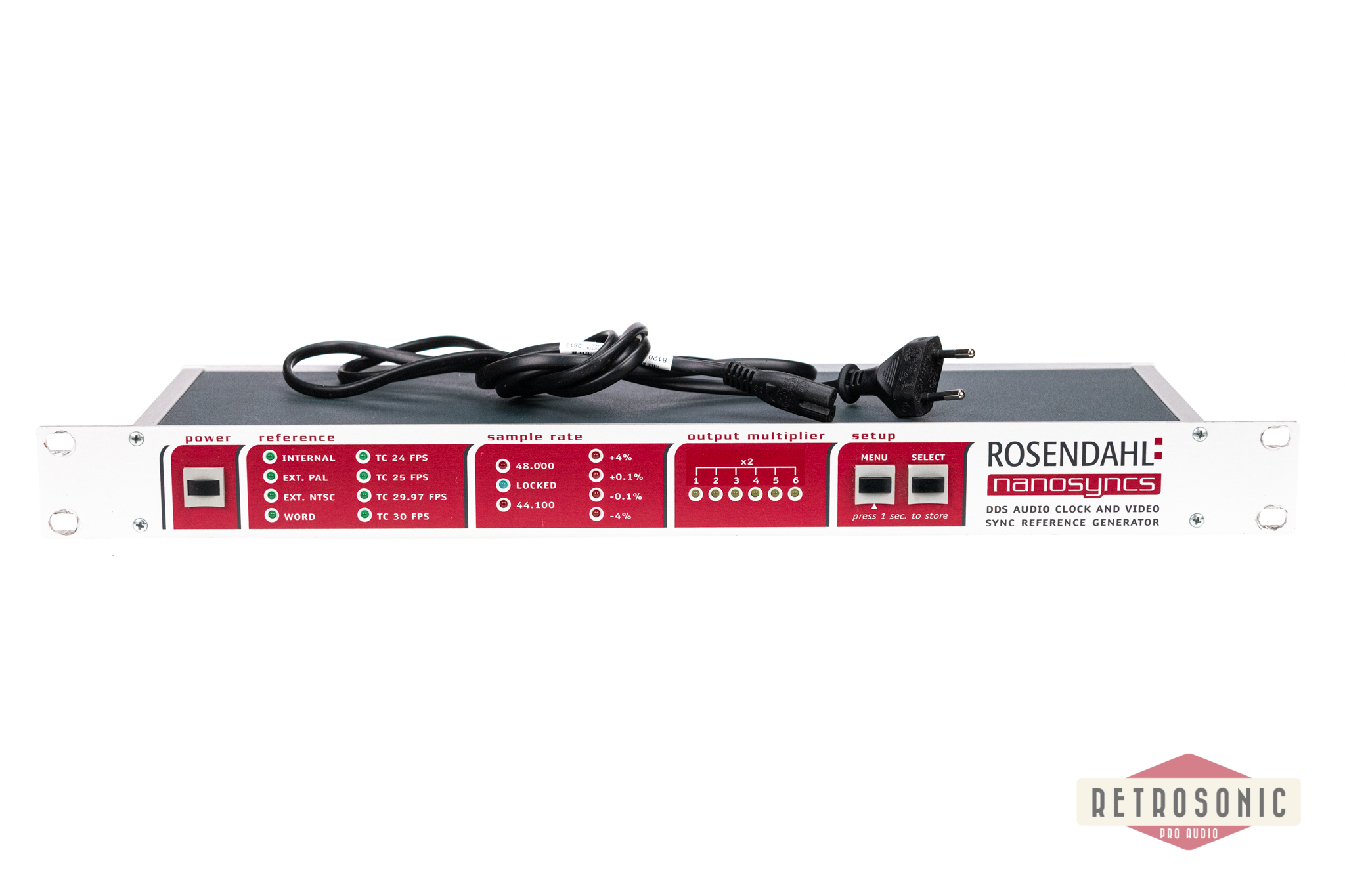

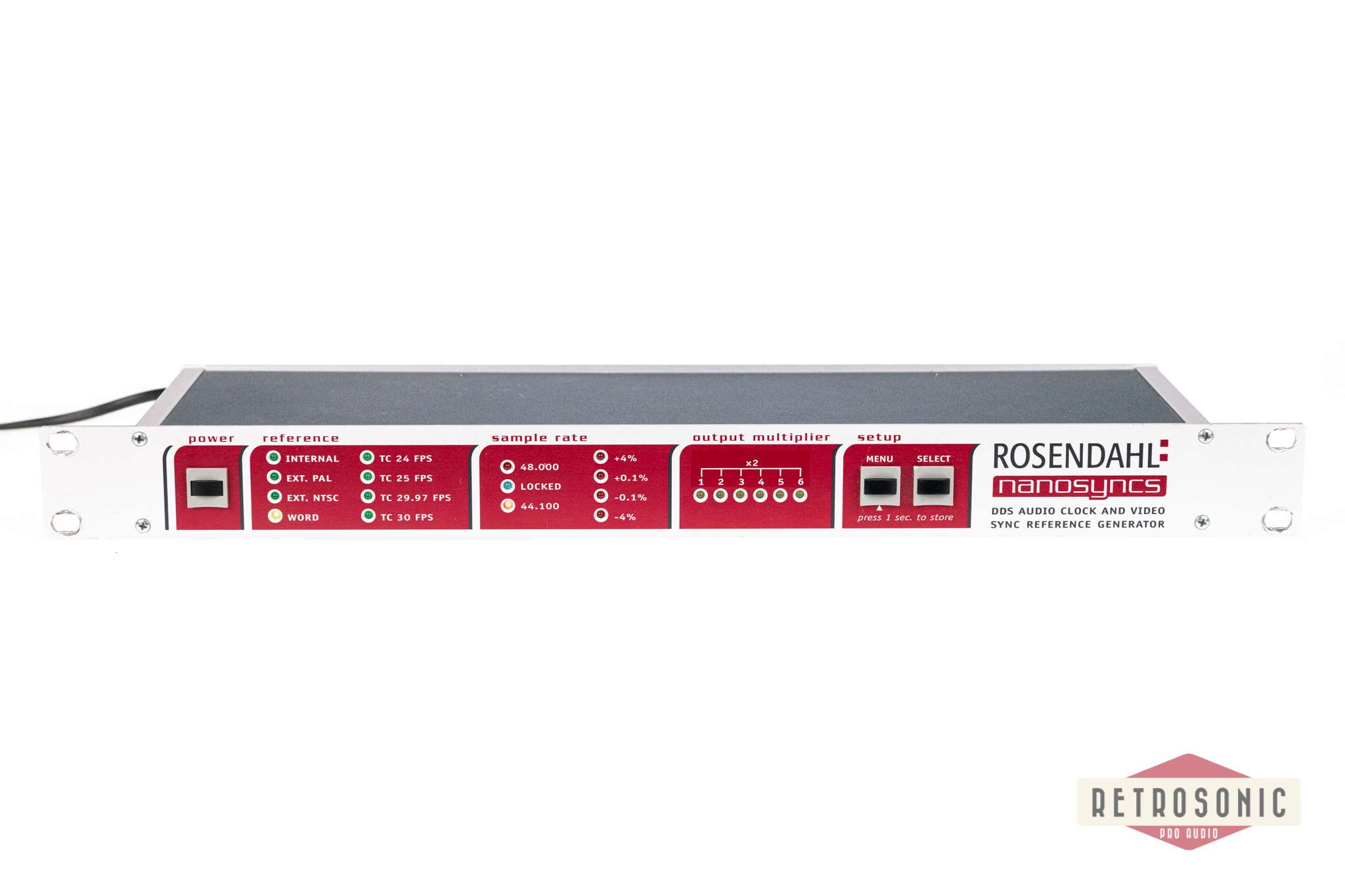

Rosendahl Nanosyncs Audio Clock &Video Sync Generator

The nanosyncs series have been in production by Rosendahl Studiotechnik since 1999, and in these decades they have become well respected as reliable clocking and synching devices.

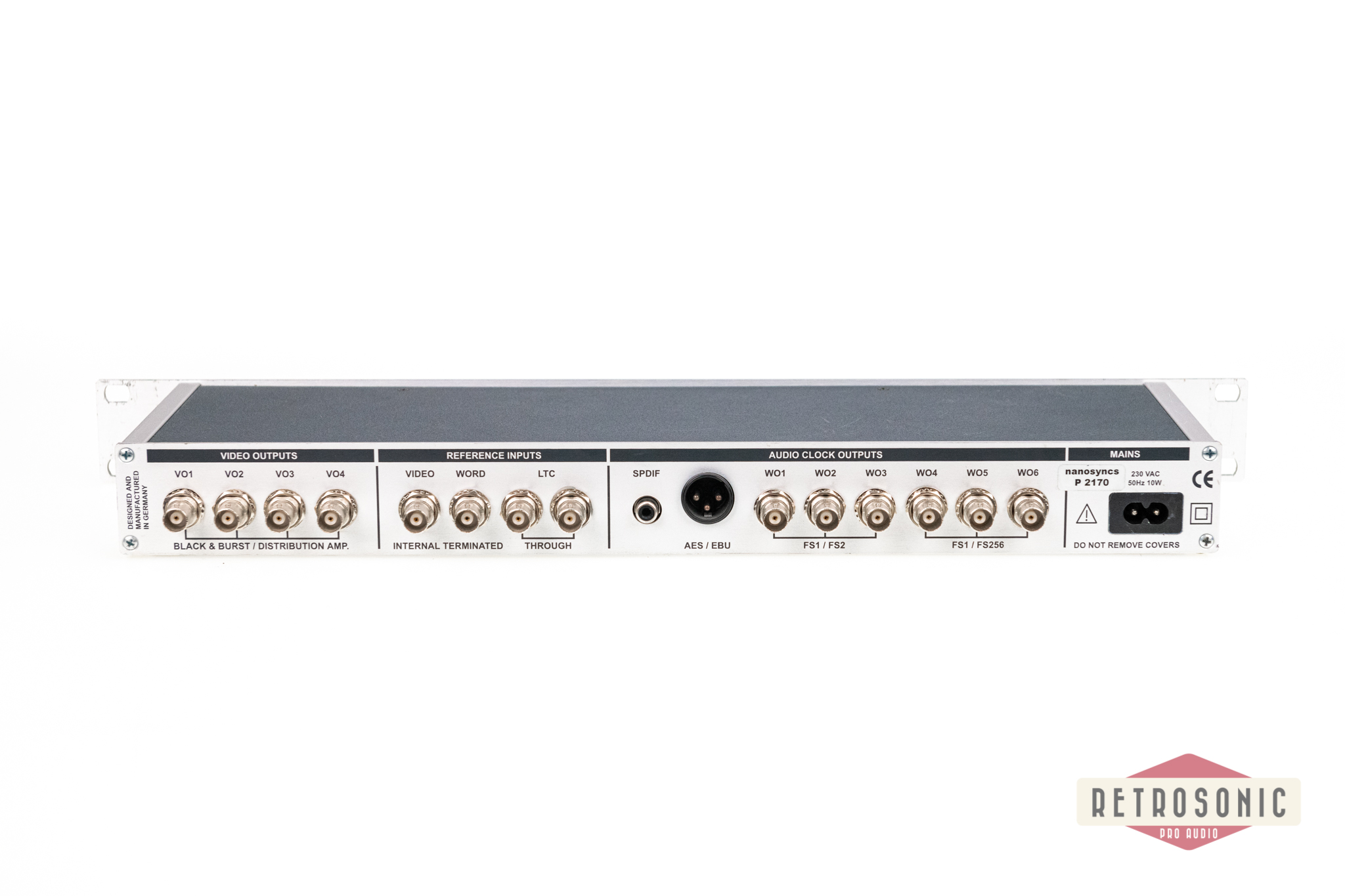

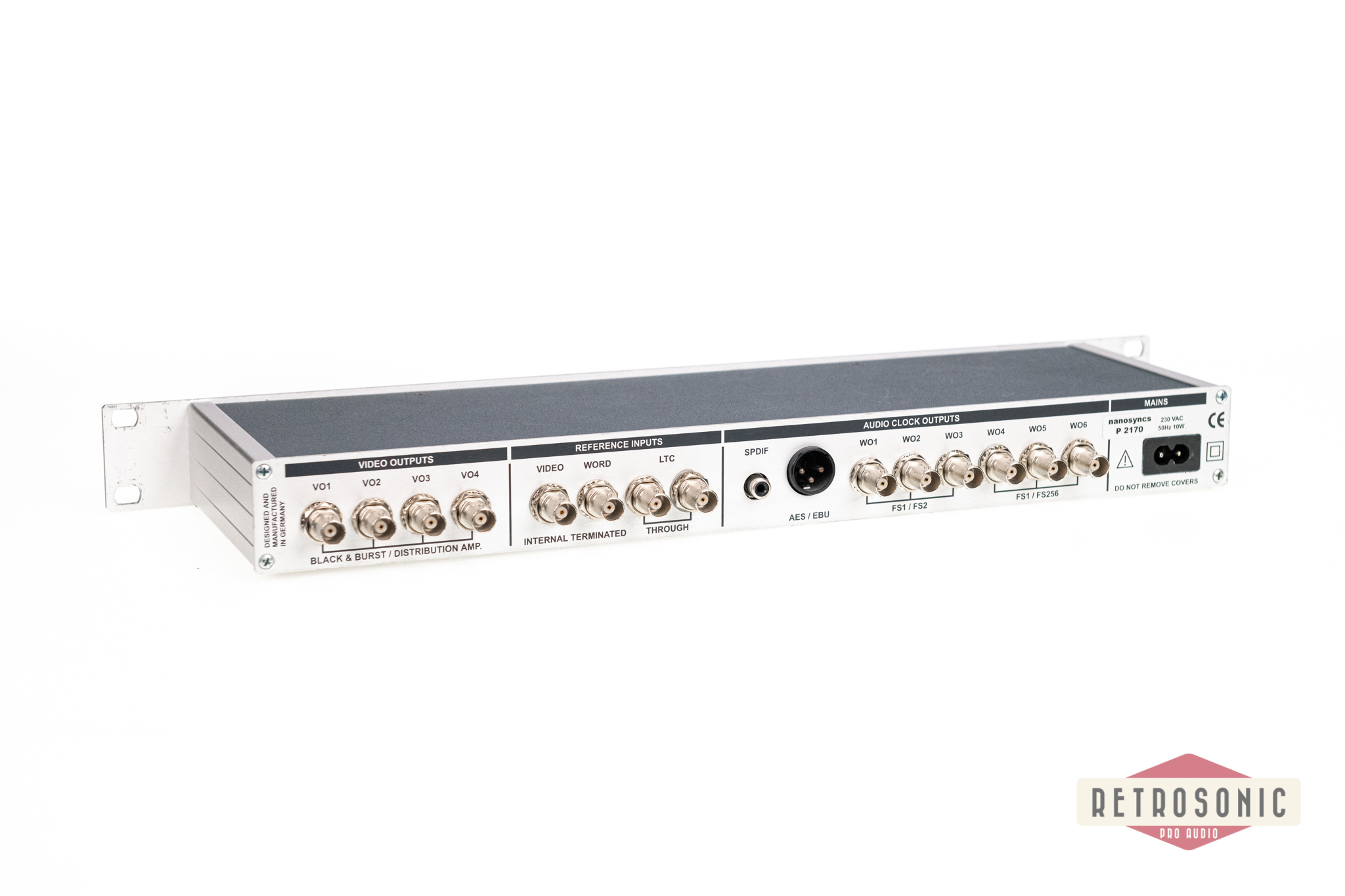

OUTPUTS:
8 word clocks, 2 AES/EBU and 1 SPDIF reference outputs
6 video sync outputs, individually configurable as standard video syncs or HD tri-level syncs
LTC (SMPTE 12M) timecode output.

INPUTS:
video reference input, accepts standard and HD tri-level signals
word clock input, LTC timecode input

SECTIONS:
DDS audio clock generator, jitter < 12ps RMS within the audio spectrum (20Hz -20kHz), sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz including all +/- 0.1% or +/- 4% pulls
Internal timebase: 0.2 ppm accurate, temperature compensated crystal oscillator
SD video sync generator: 23.98 FPS, 24 FPS, PAL 25 FPS, NTSC 29.97 FPS
HD tri-level sync generator: 720p, 1080p and 1080i at 23.98, 24, 25, 29.98, 30, 50, 59.97, 60 FPS
Timecode generator: 23.98, 24, 25, 29.98, 30 FPS, local or remote controlled via USB
Timecode reader: all rates, LTC to MTC conversion, generator jam sync
USB: device class compliant audio device with MIDI port, MTC, MMC and Rosendahl SysEx, free remote software nanoSETUP for Mac OSX and Windows available.

NEW FEATURES IN FIRMWARE 2.1:
generates black dolby compatible bi-level syncs
generates pilot tones for MAG machines
configurable NTSC pedestal 7.5 IRE
Adjustable H-phase, SC-H phase settings
