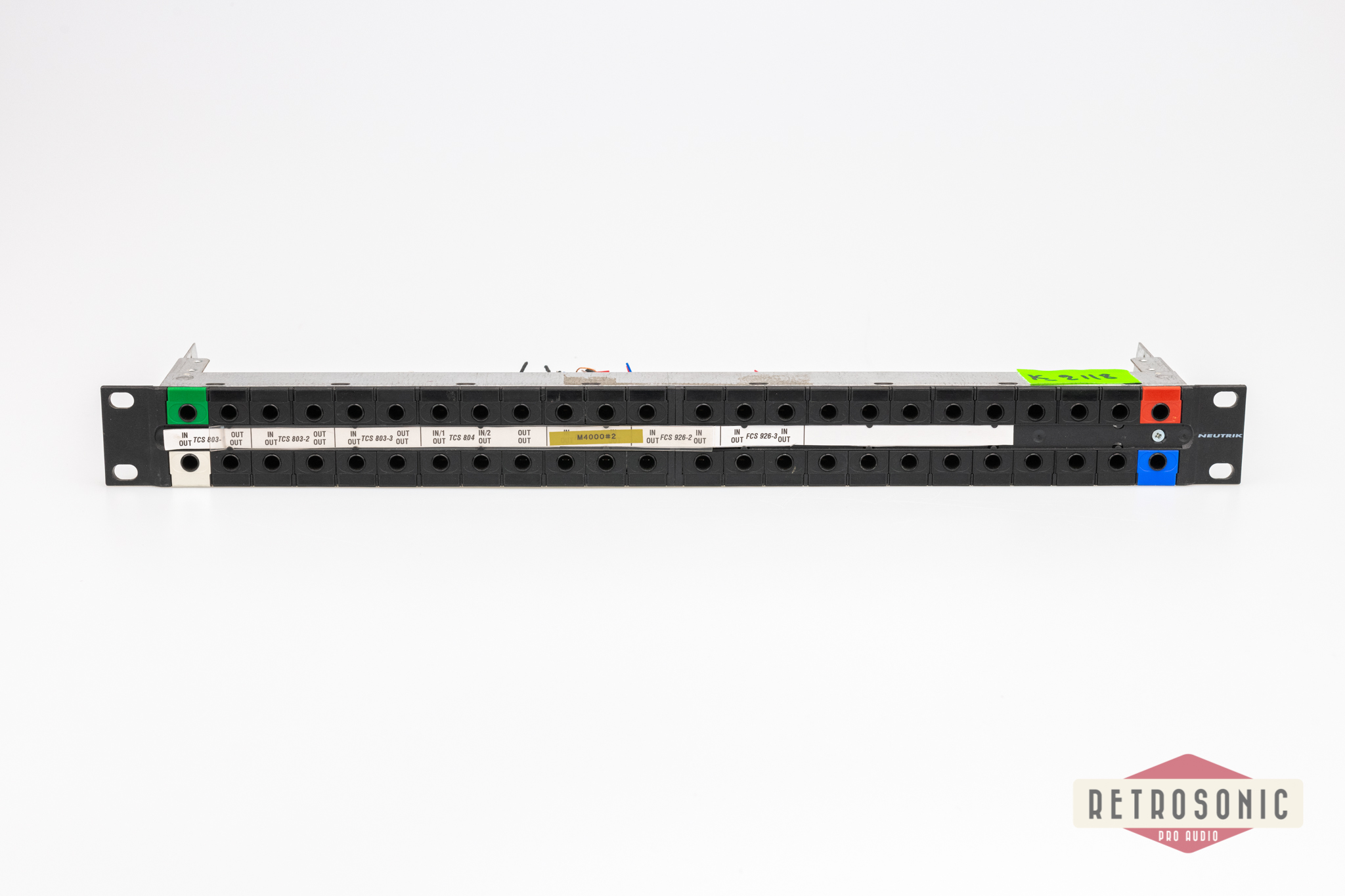

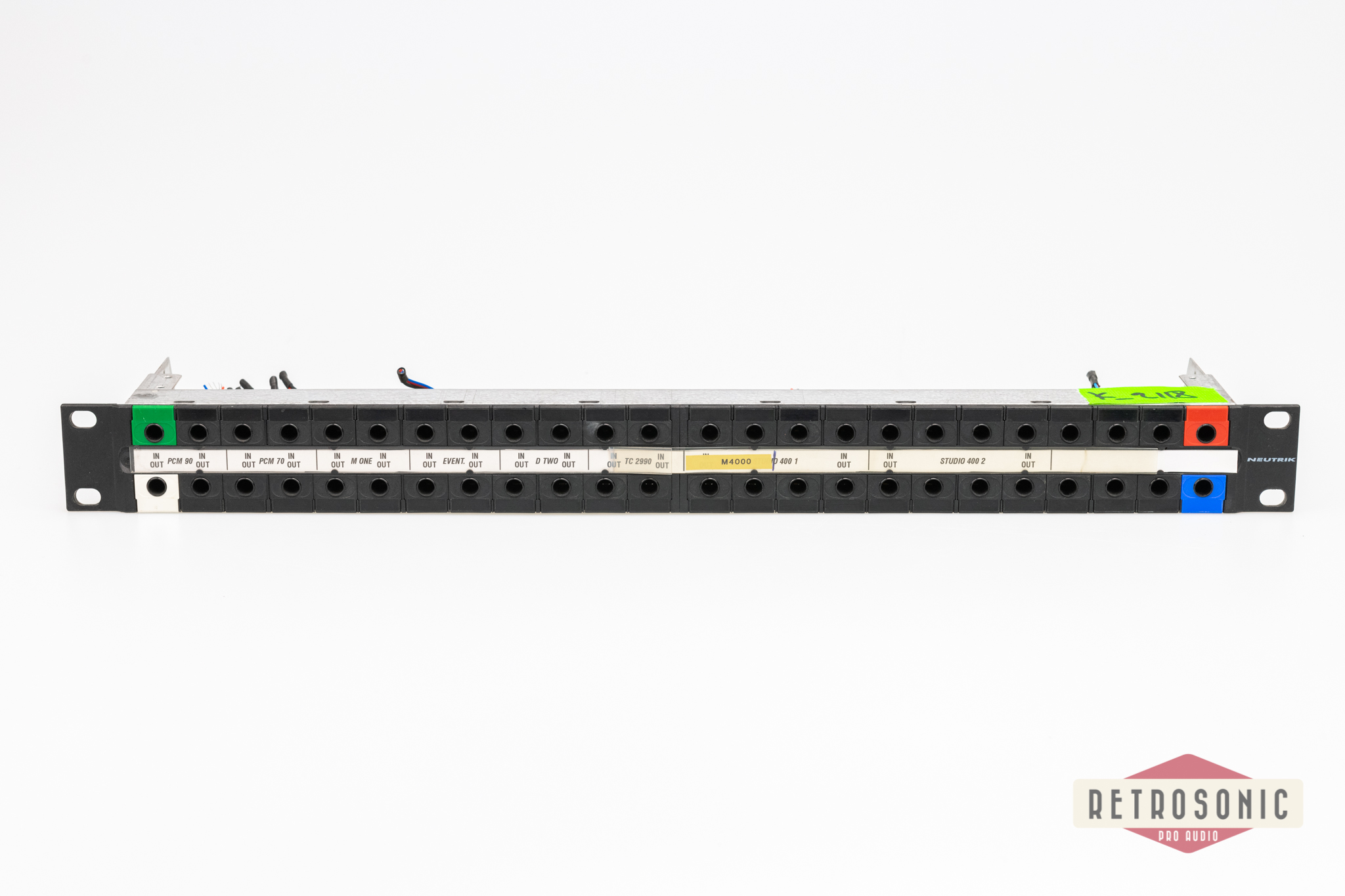

2 x 24-way patchbay with 1/4 TRS jacks
SKU: K_2118
€ 200.00 ex VAT
€ 240.00 incl. VAT
used Good Sold
Paypal Wise
Invoice
Description
Features
Shipping & VAT

Total of 2 units available. Both untested. No patch cables included.

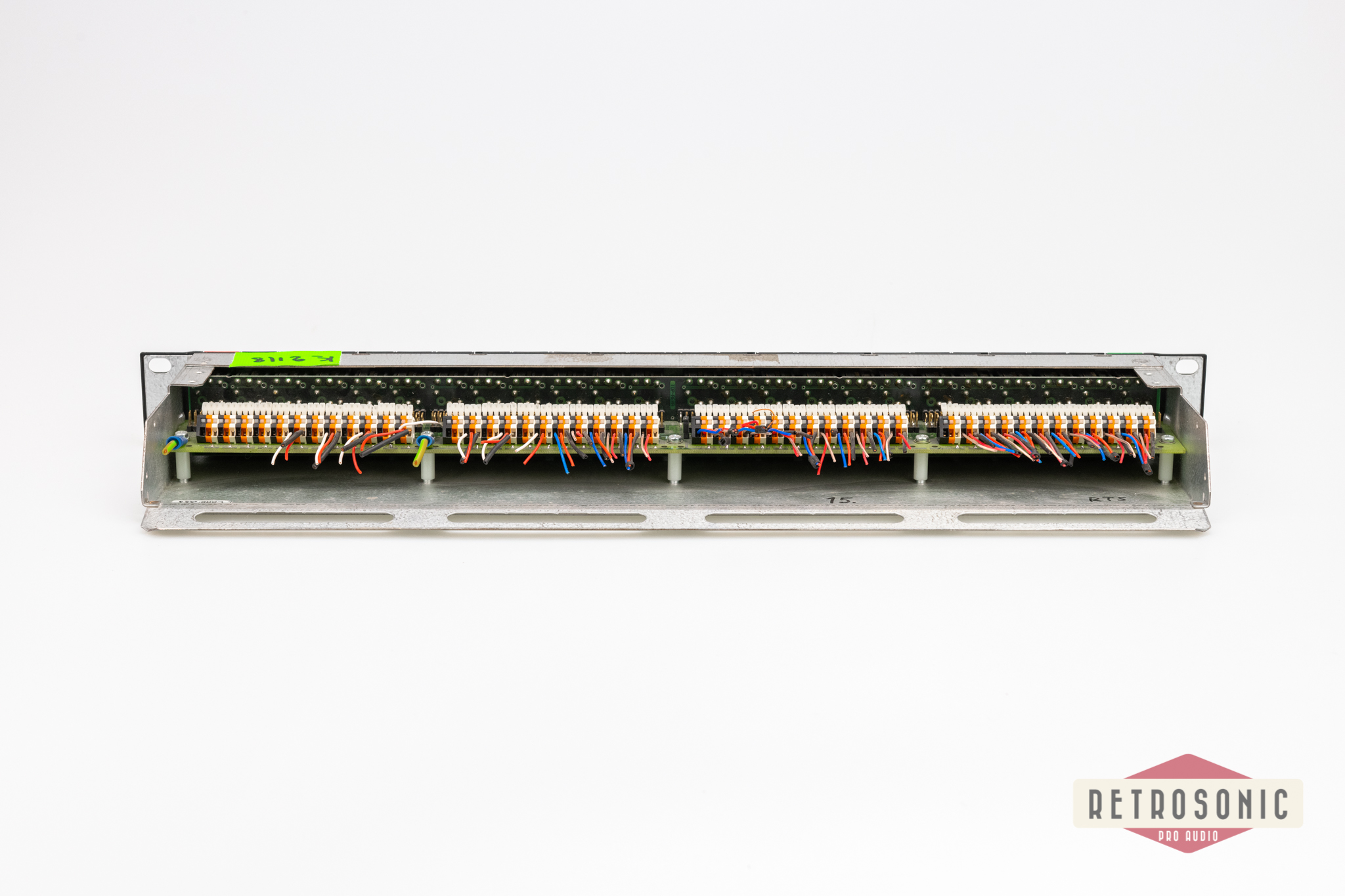

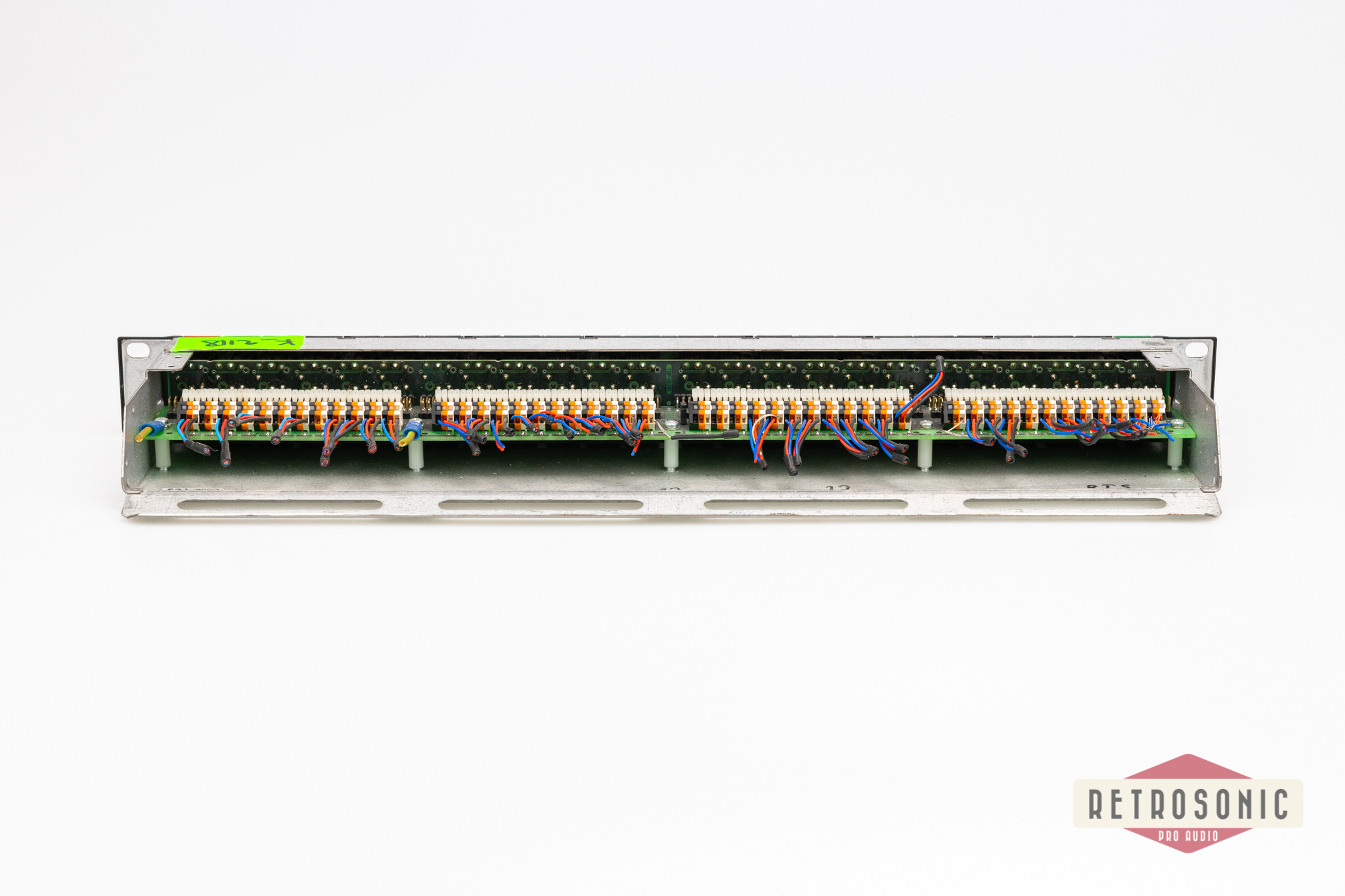

2 x 24 TB (BP0316/MIL-P-642/2) jacks, full normalled (programmable), push terminals, wire O.D. 0,08 - 0,5 mm² (AWG 28 - 20), stripping length 5 - 6 mm (0,236 in)

The NPP-TB patch panels are equipped with gold plated, high quality long life NJ6TB-V Jacks for BPO/MIL style plugs. The panels are easily programmable for six switching configurations and offer a flexible grounding system.

The NPP-TB patch panels are very robust and compactly designed for 19" rack mount (19" x 1U) with galvanized metal housing and a built-in cable bar on the rear for securing wires. There is a rear extension bar (NPP-S) available as an option. On the front side there is an attractive additional lettering area for each channel pair with a marking strip and individual snap-on colour coding plates.

2 x 24 Neutrik NJ6TB-V long frame 1/4" TRS jacks acc. to BPO 316 / MIL-P-641/3

Very robust and compact galvanized metal housing

Eye catching channel identification through colored snap-on coding tabs6 easily programmable switching configurations by jumpers (see assembly instruction)

Qualified for analog and digital signals acc. AES3, 48 kHz sampling frequency

With high quality long life gold plated Neutrik jacks

Flexible grounding system (see Assembly Instruction)
