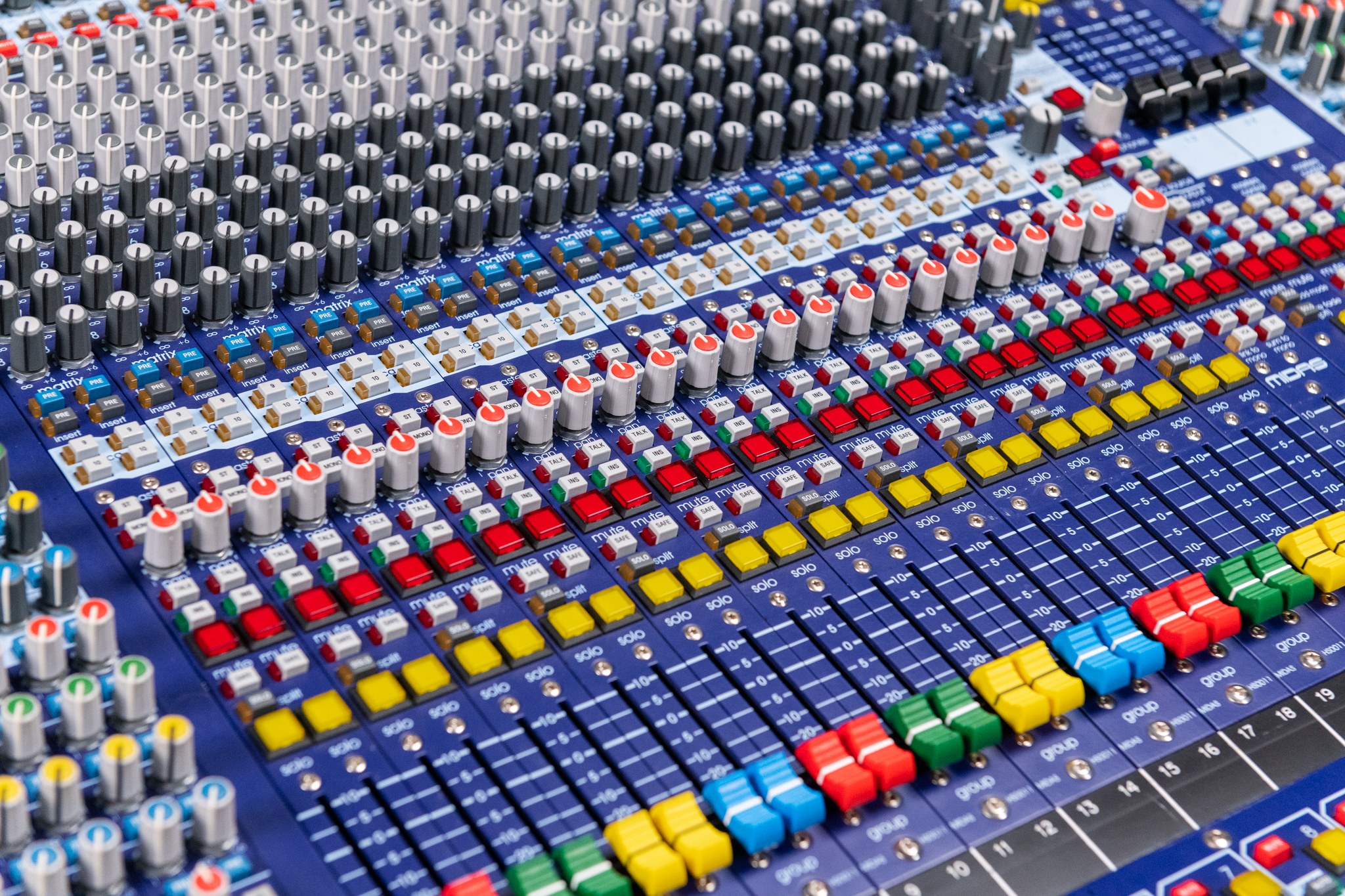

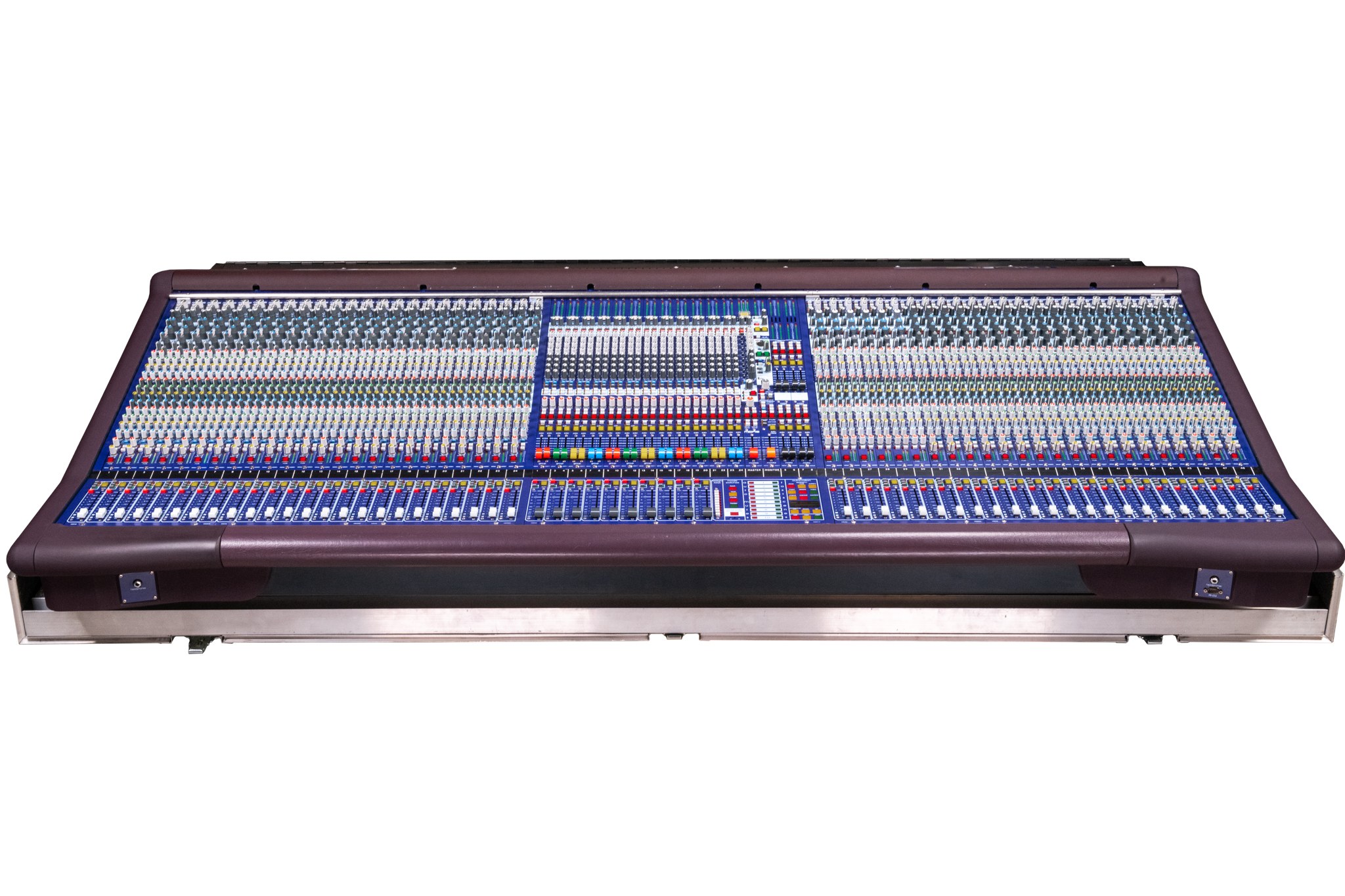

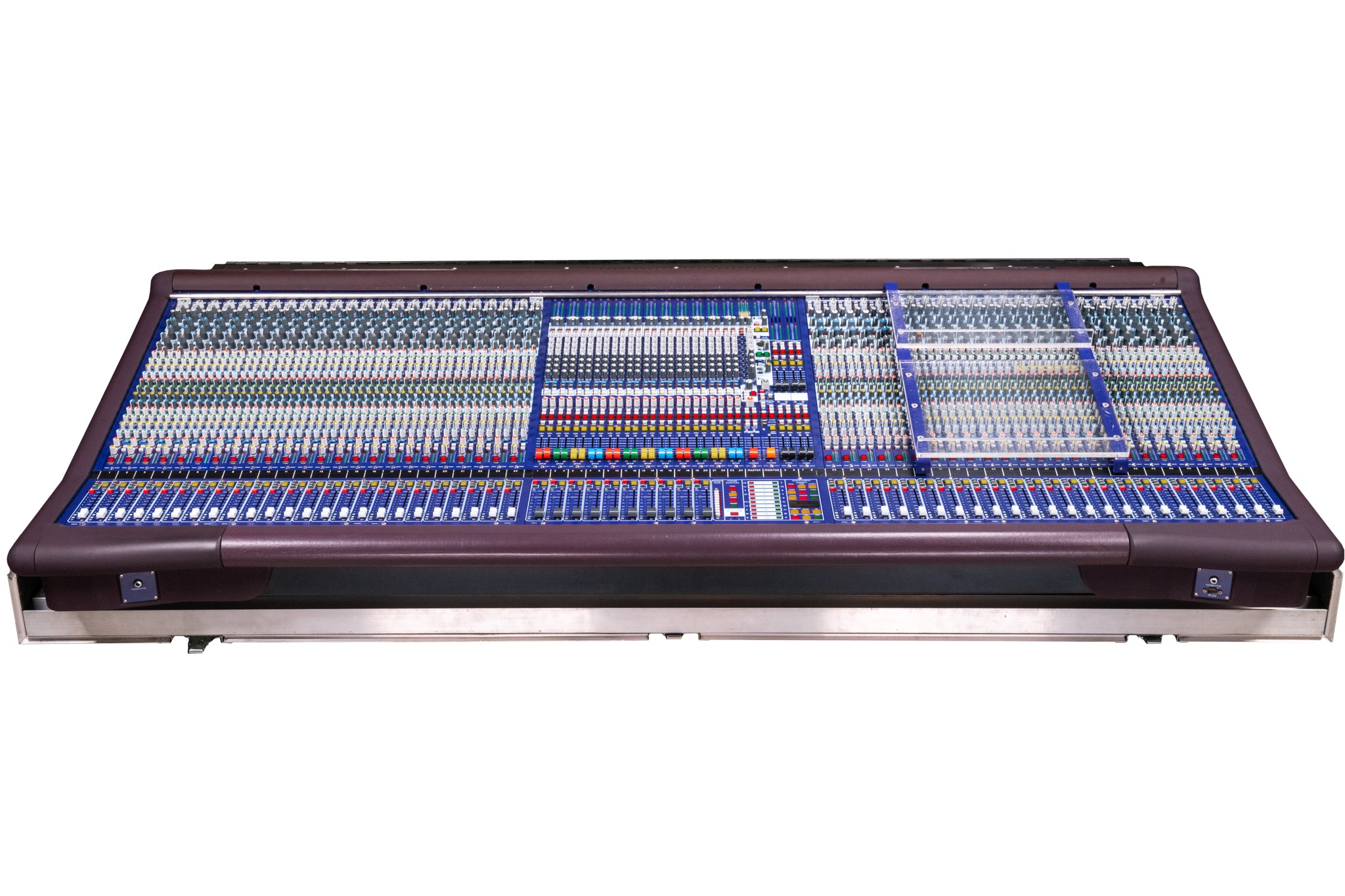

The Heritage 3000 live performance mixing console offers remarkable flexibility for various live scenarios. Its three-position switching system adapts output functions for different uses like theatres, broadcast trucks, and stages.
Interchangeable Modules: The fully modular design allows easy swapping of stereo and mono modules within the input positions.
Frame Sizes: The console has 44 mono and 6 stereo inputs
Improved XL4 Mic Pre Amp: The mic preamp with a +30dB CMR improvement while retaining XL4's stable HF bandwidth topology.
Equaliser: Four-band fully parametric XL4 Equaliser for warm and responsive audio adjustment.

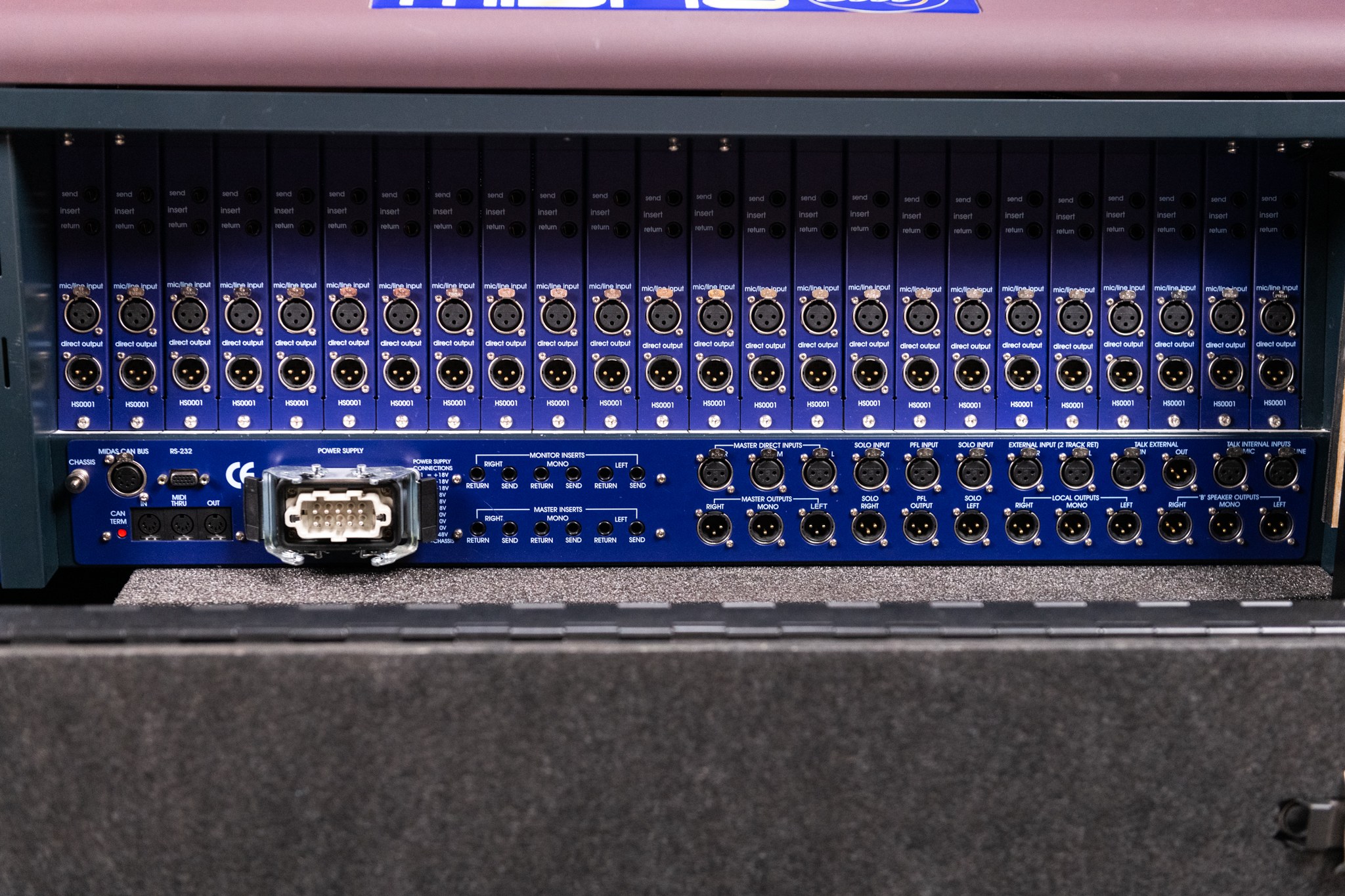

Direct Outputs: Every input module has its direct output with level control and source selection.
24 Mix Sends: Flexible configuration of 24 mix sends, memorized on power down.
Inserts: Each channel has a balanced insert send and return, switchable pre or post equaliser.
Spacial Image System (SIS): Enhances pan control for distributing center-panned sounds across multiple loudspeaker systems.
VCA and Mute Groups: Channels controlled by VCA and mute groups, assignable and automatable.
Link Capability: Direct inputs for linking consoles together or to a sidecar/extender.
Matrix: 8 matrix outputs sourced from 24 mix sends, left, right, and mono masters.
Automation: Stores up to 500 scenes, automates VCA sub group routing, input levels, and major output mutes.
Mechanical and Electronic Design: Extruded modules for exceptional strength.
PCB Material: Military-spec PCB material (FR4).
Frame: Zinc-plated steel chassis with audio and digital separation for audio purity.

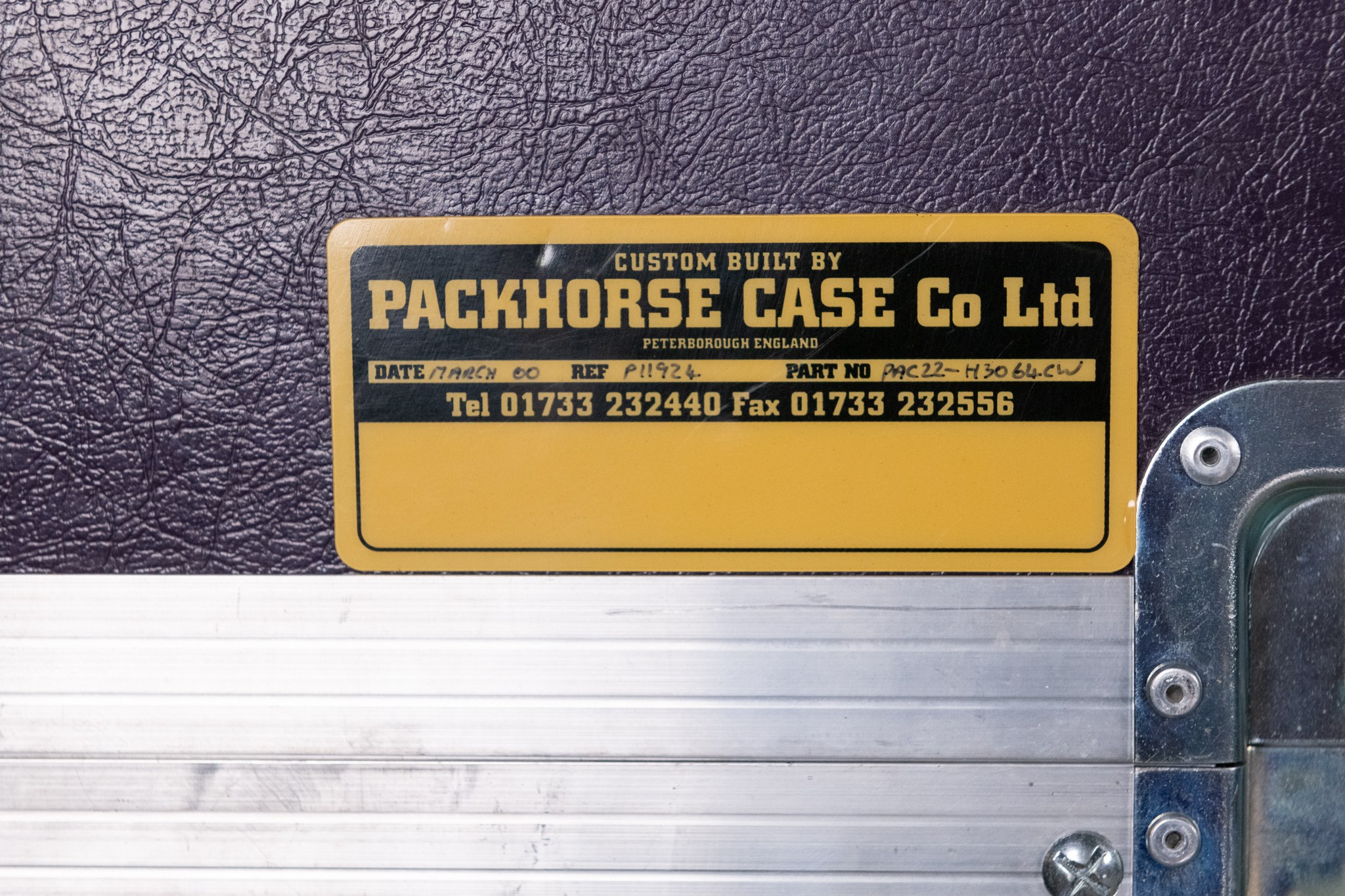

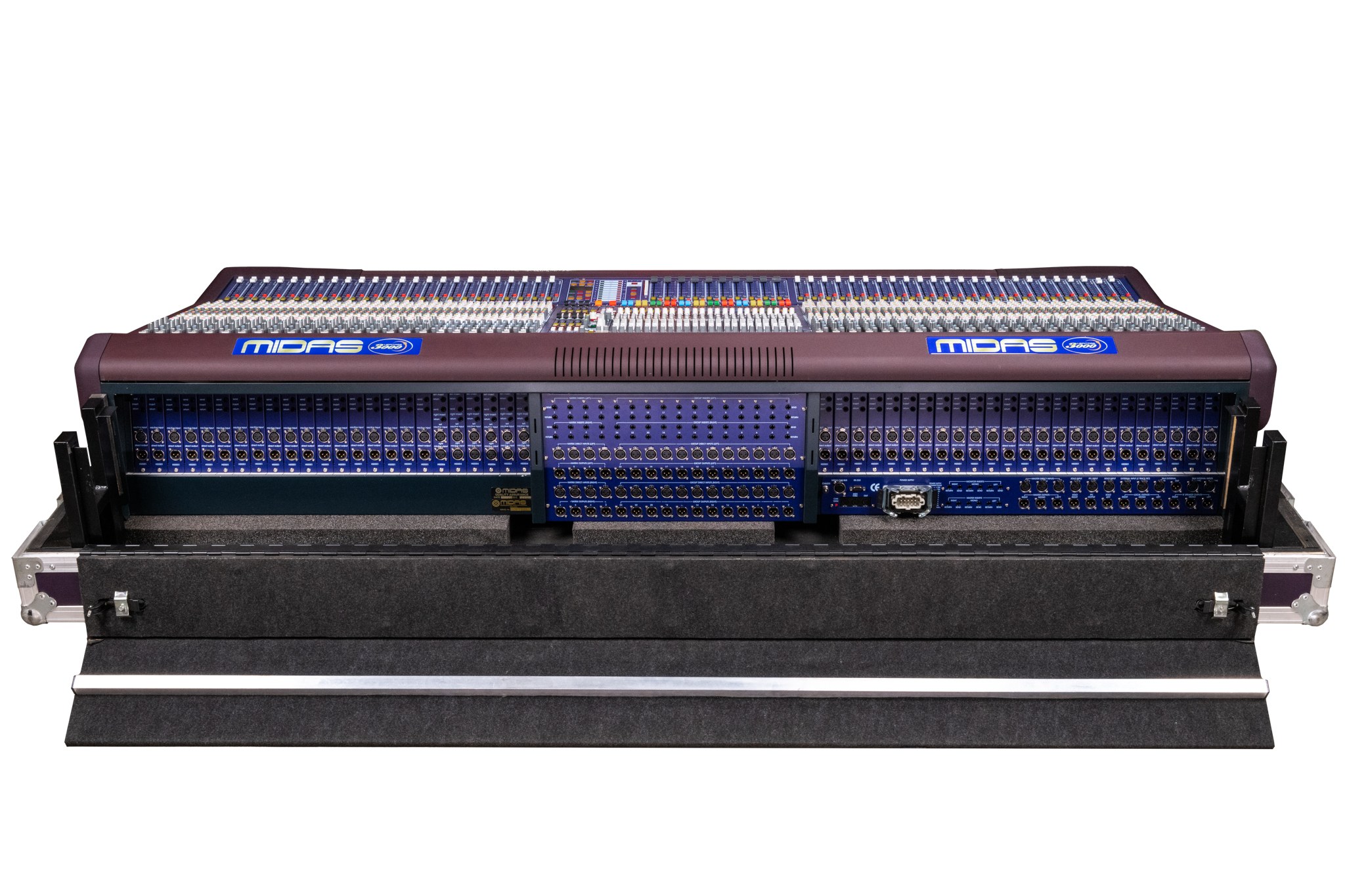

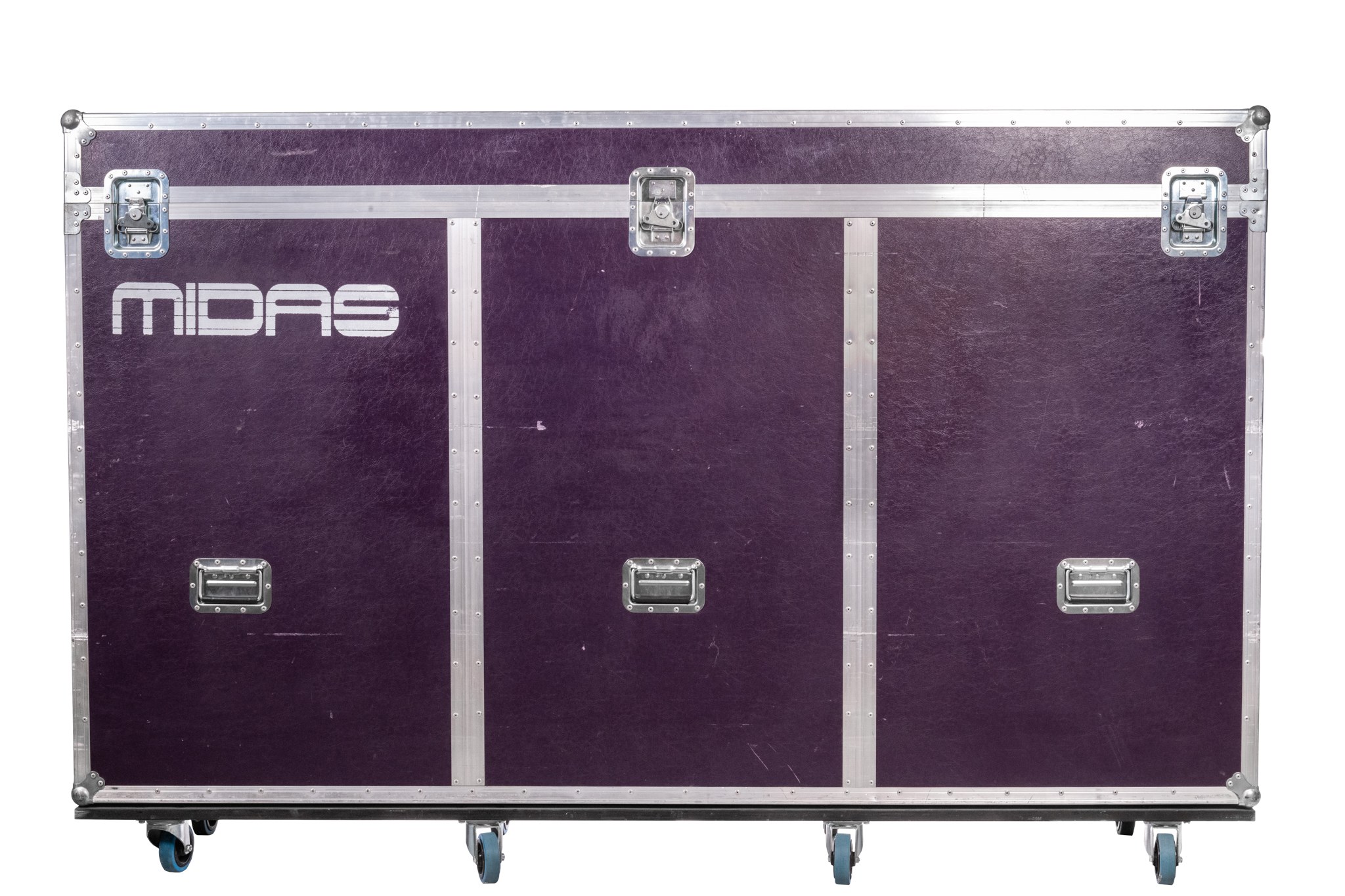

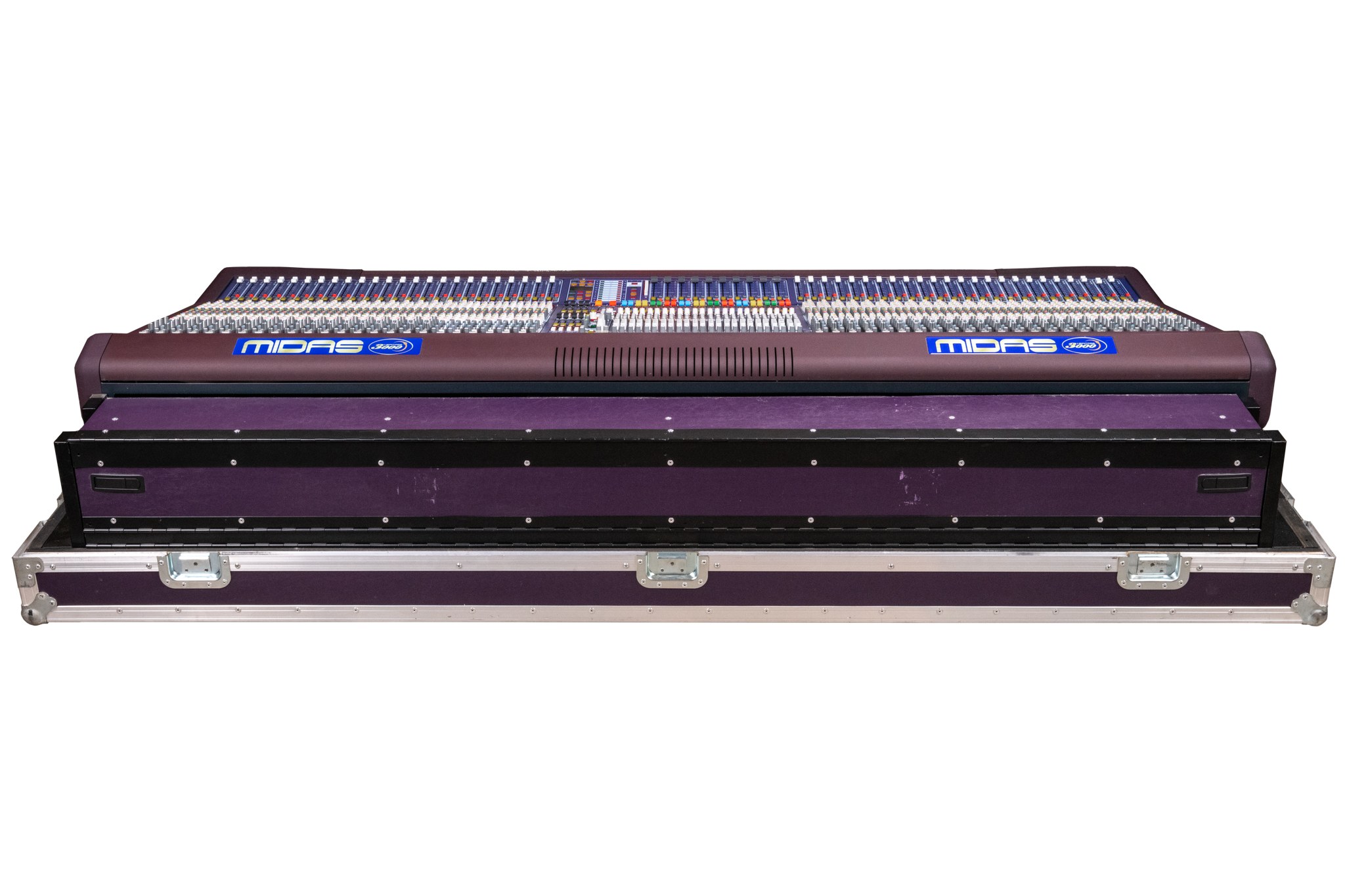

This Heritage 3000 console comes in a Packhorse flightcase and includes a dust cover.

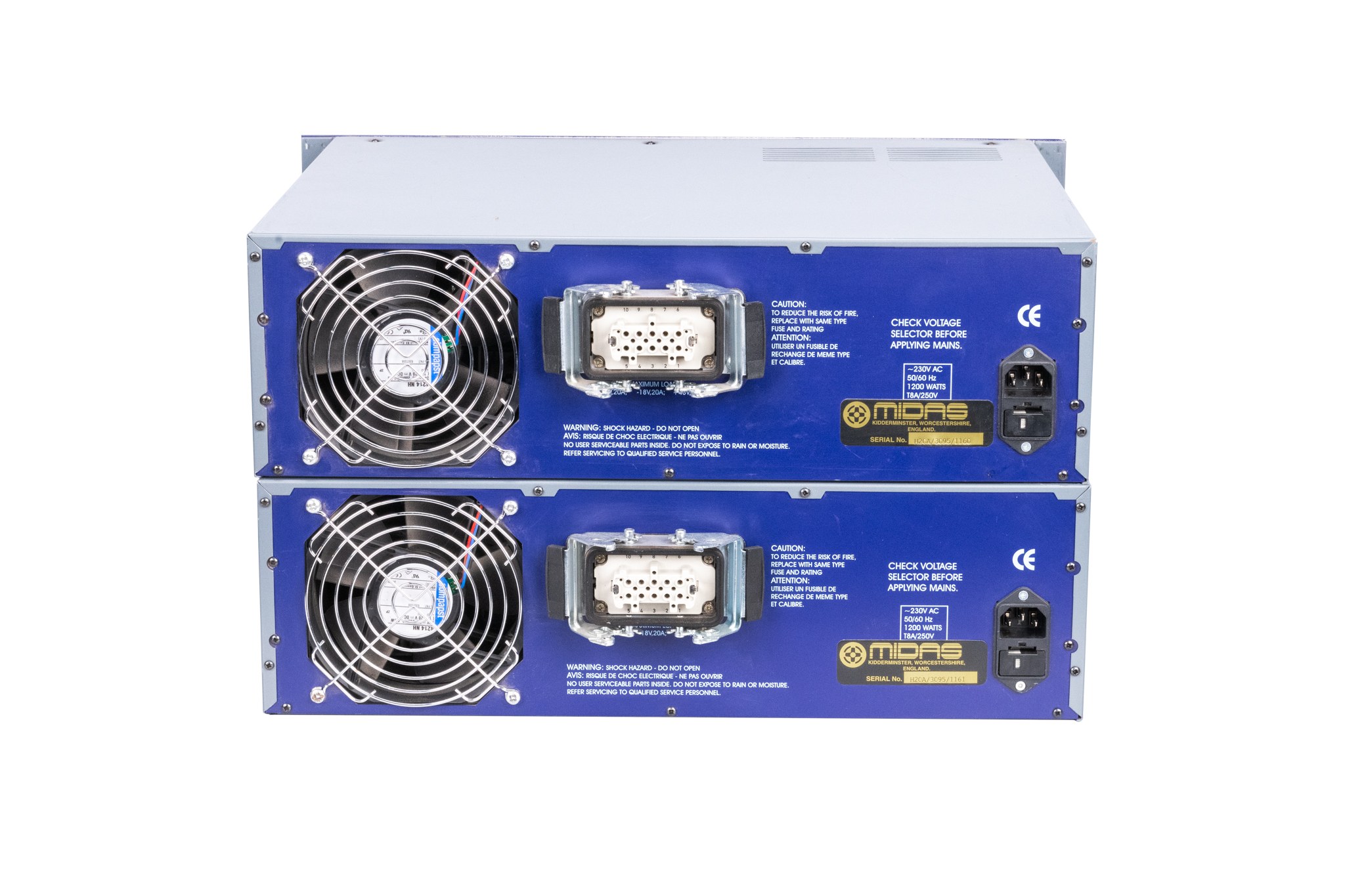

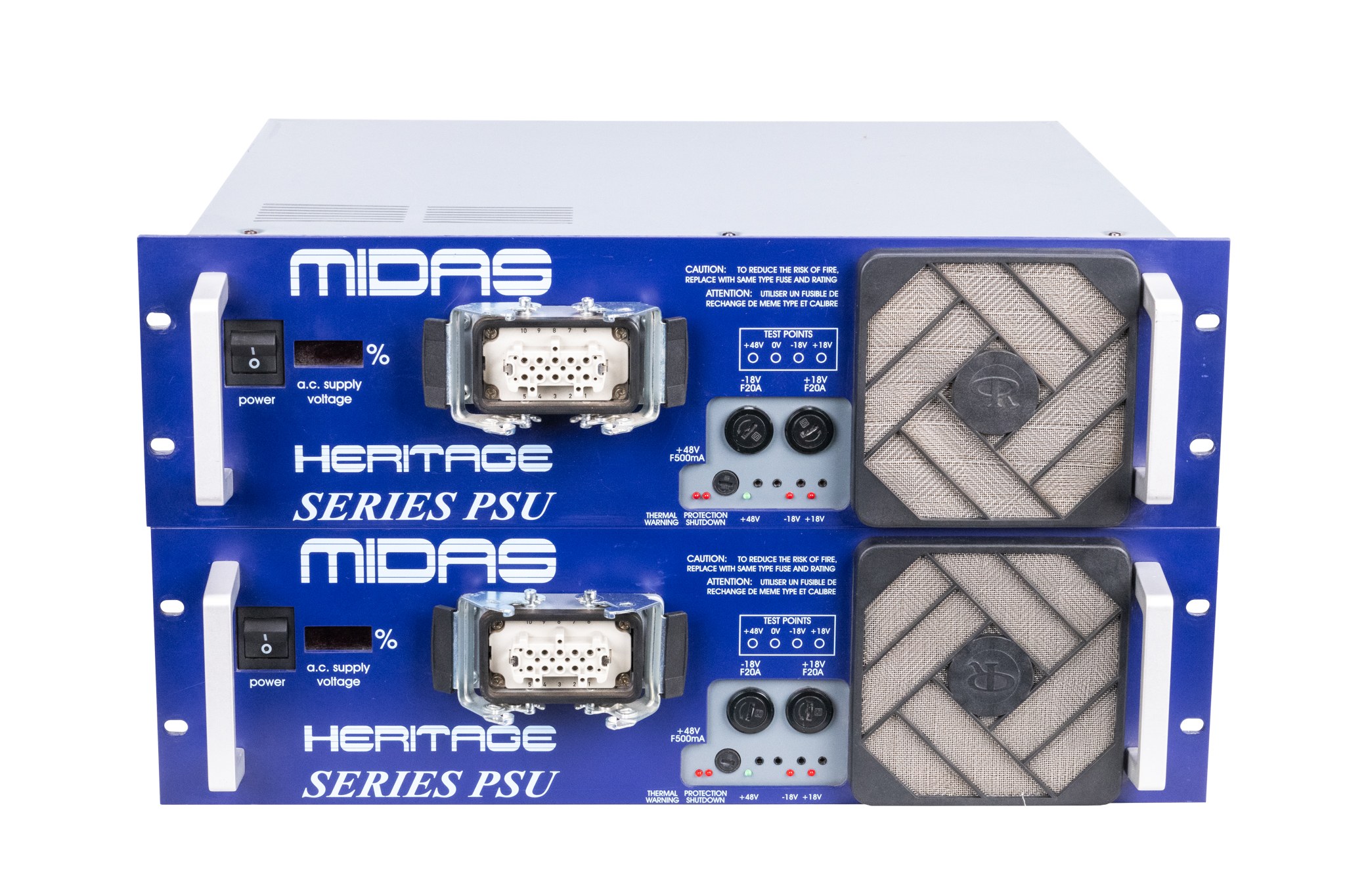

External PSUs work on 230V. EU power cords included.
