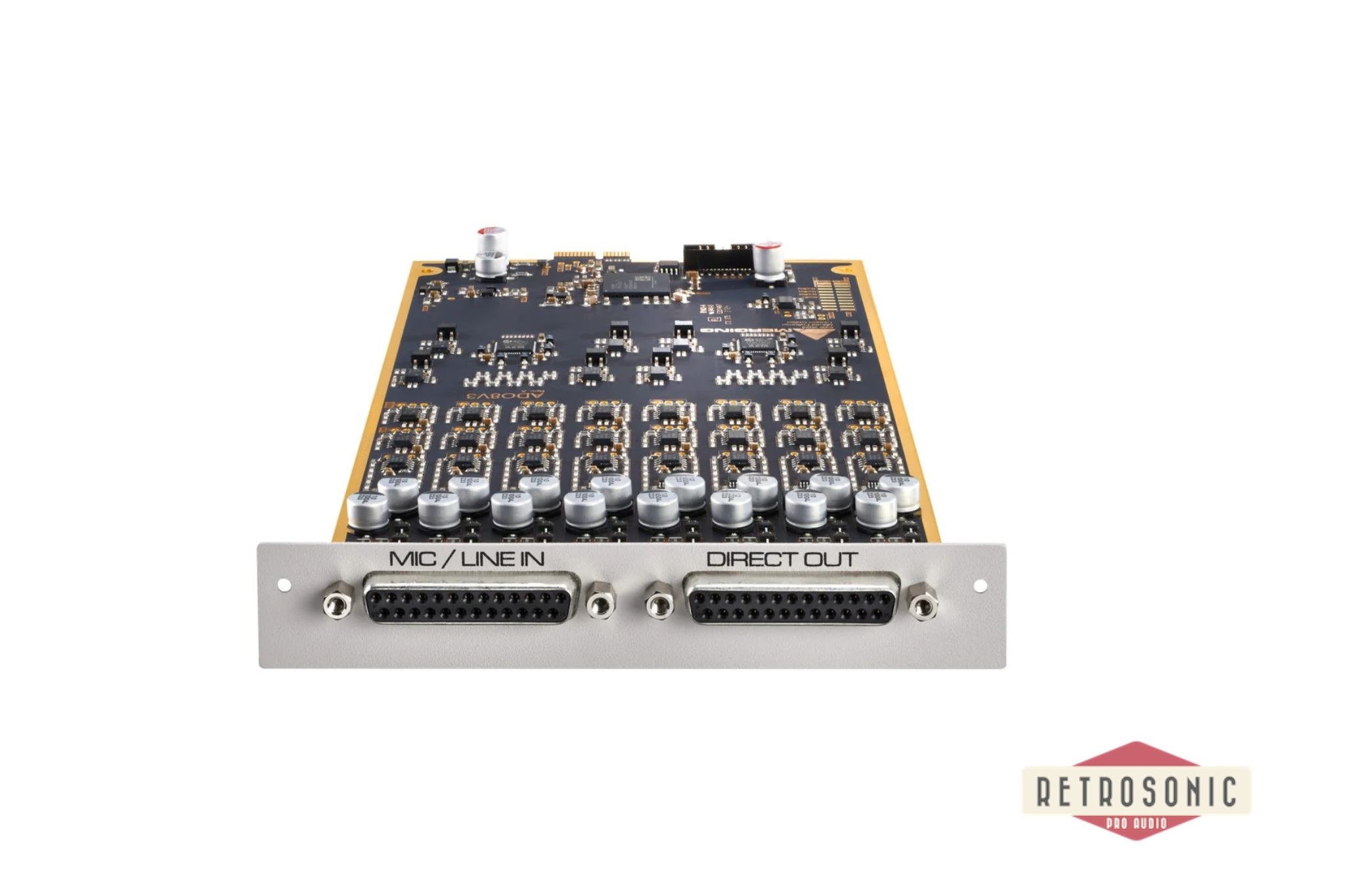

Merging Hapi ADO8V3P 8-Ch Mic/Line AD with Direct Outs DSD/DXD Option Card

Built around Swiss-engineered microphone preamps, this card offers up to 78 dB of gain, exceptional clarity, and an impressive 139 dB A-weighted dynamic range. It supports sample rates up to 384 kHz as well as DSD256, making it a serious front end for high-resolution recording, demanding studio work, and audiophile-grade applications.

The design is based on Merging’s 3rd generation dual-gain topology, delivering very low distortion, excellent transparency, and a wide usable gain range. Each channel features individually switchable phantom power, polarity inversion, low-cut filtering, and impedance selection, along with remote or local mic/line level switching for flexible operation.

Dedicated analogue direct outputs on every channel, taken post mic preamp, make it easy to feed external processors without giving up routing freedom inside the system. External DI boxes are often unnecessary, which makes this card especially practical in compact but high-end setups.

Full remote control, advanced signal routing, MIDI remote support, and auto-mute protection during power cycling all add up to a design that is as refined in daily use as it is on paper. Connectivity is handled via two 25-pin Sub-D connectors, with careful calibration and quality control ensuring consistent performance across all eight channels.

For Hapi Mk III users looking for a premium analogue input stage with precision, flexibility, and real recording pedigree, this is a very elegant solution.

US and EU parcels ship via UPS, ETA 1-7 working days from pickup day zero. That also applies to most locations worldwide.

All shipments are fully insured.

Bigger shipments requiring pallets or custom made crates ship to US, CA, JP, CN, AU and other outside of EU locations via DHL Air Freight, ETA is normally approx. 7-14 working days from pickup day zero.

Big shipments inside EU ship via different freight companies, recently mostly via ACE Logistics. Freight forwarders can use different courier companies for deliveries to final destinations.

Palletising and crating time can vary depending on the size of the shipment and packaging queue. We pack all our shipments with great care.

You are most welcome to pick your order up yourself from our Retrosonic Pro Audio showroom, studio and warehouse in Tallinn, Estonia.

We ship worldwide – contact us for a personal shipping quote or any other questions.

VAT (Value Added Tax) can be deducted if you have a company with a valid EU VAT number or if you're based outside of the EU. Non-EU buyers pay all and any import tax and duty as regulated by their local customs.
