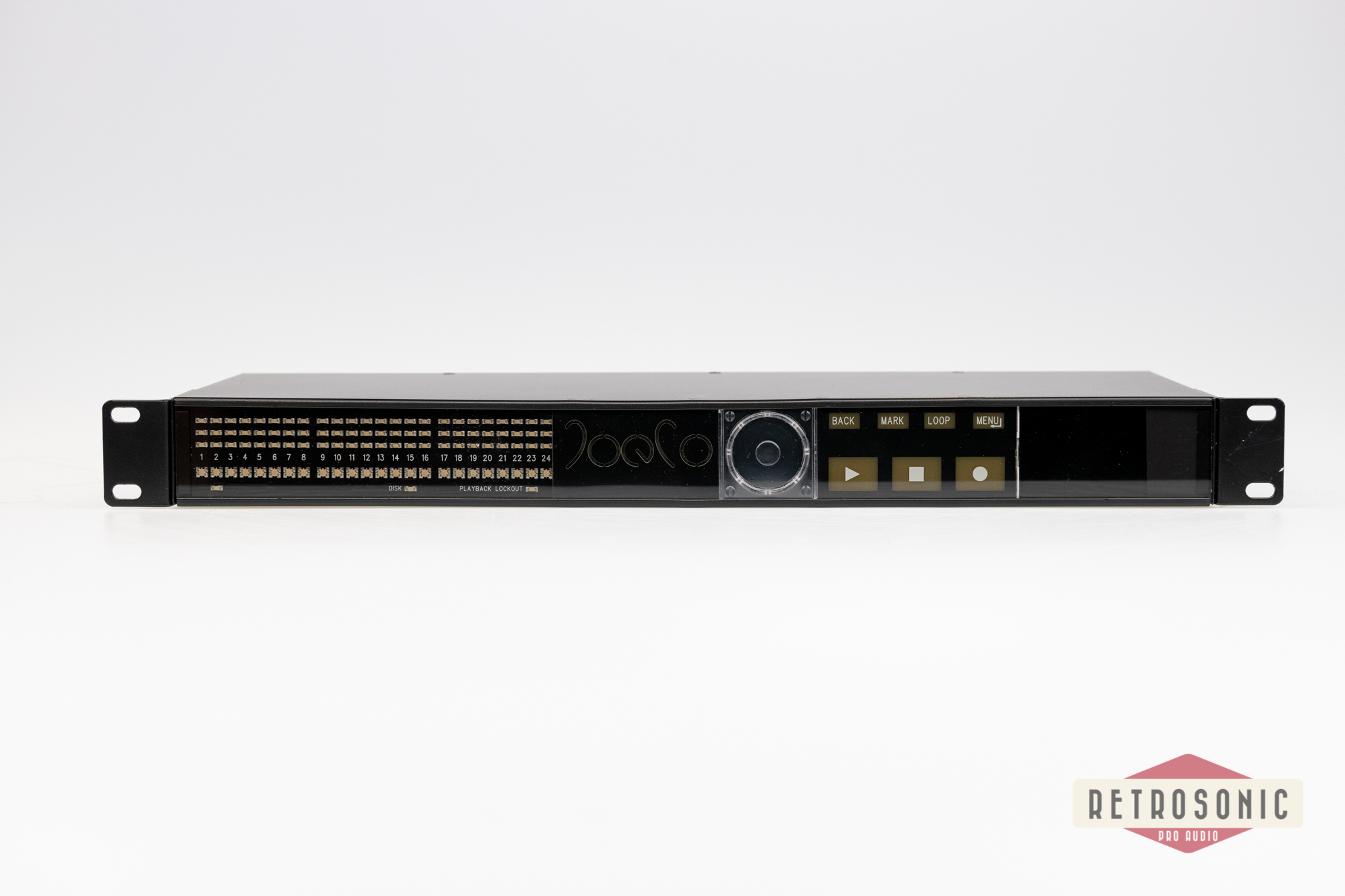

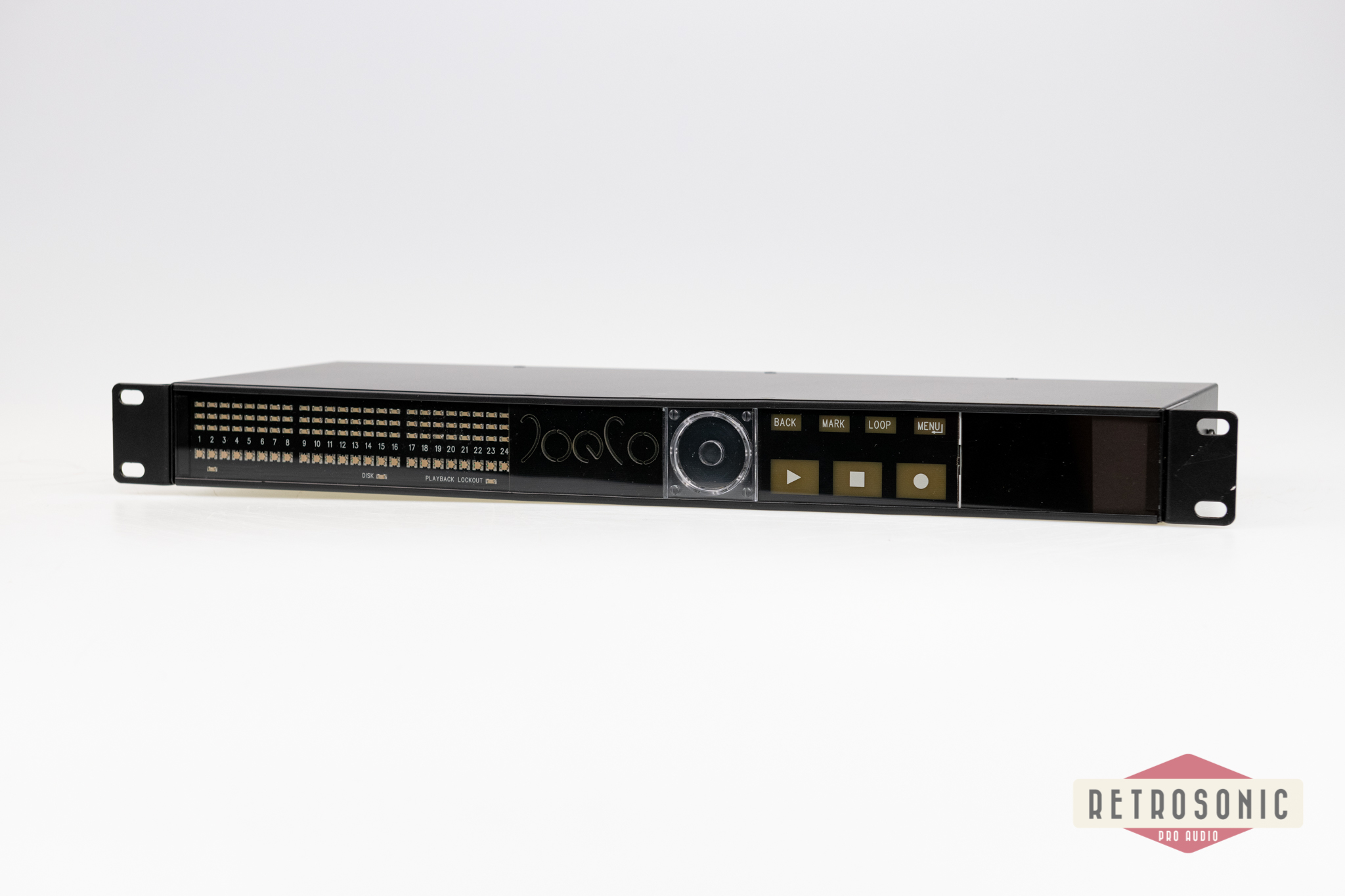

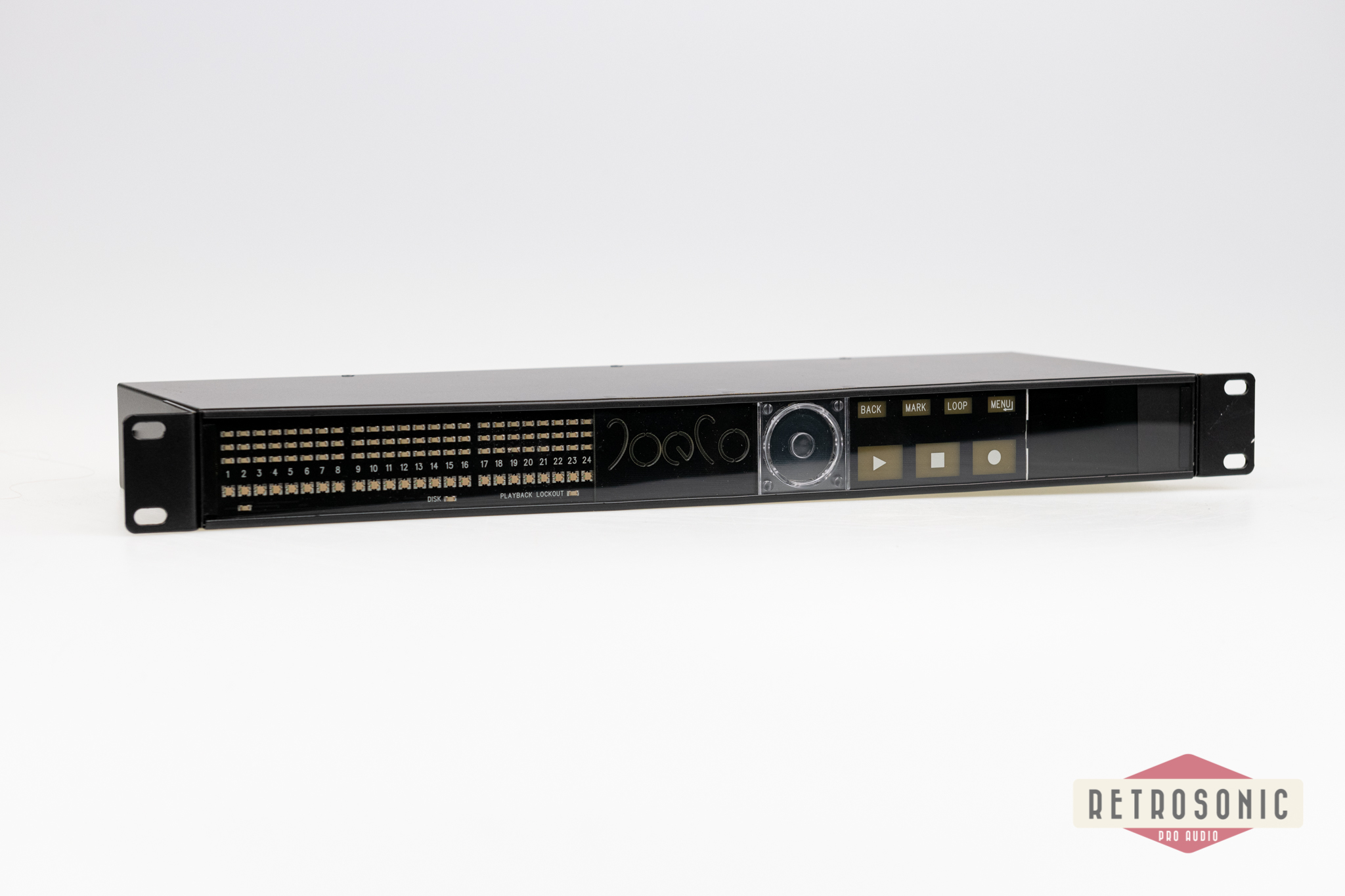

JoeCo Blackbox BBR1 24-ch USB Recorder. 24-ch Analog I/O (DB25)

Item - K_2184
JoeCo
€790.00
€948.00 incl. VAT contact_support
Good
In stock
Select quantity:
add to cart
description
features
Shipping & VAT
format_quote The BBR1U multi-track recorder brings the high quality recordings and failsafe dependability for which the BLACKBOX Recorder is known to more traditional analogue set-ups.

The BBR1U is designed to plug across the insert points of a standard analogue console via three 25-way female D-type connectors on the rear of the unit. Inside the BBR1U multi-track recorder, relays route the audio signal from input to output in all modes except during playback. This provides an additional level of safety so that in the event of a power failure on the BBR, the audio through the PA will not be affected in live scenarios.

In this model, eight insert returns are also brought out to TRS jacks on the rear of the unit, allowing additional outboard equipment to be plugged into insert points as required.

JoeCo Blackbox BBR1is designed and built to the highest standard with rugged construction and a suite of unique multi-track audio capture features.

Unbalanced i/o via 3 x 25way D-sub connectors (3 x ¼” TRS multicore looms supplied – TASCAM analogue format). Designed to plug across the insert points on a standard analogue console

The unit comes with an EU PSU and 2 DB25 to TRS looms.
format_quote US parcels are shipped fully insured with DHLExpress and they usually arrive within 2-3 working days from pickup day zero.

EU parcels arrive within 4-6 working days and are shipped with DPD or ACE Logistics.

You are also most welcome to pick up your order from Retrosonic Pro Audio showroom, studio and warehouse in Tallinn, Estonia.

We ship worldwide! Contact us for a personal shipping quote or if you have any questions.

VAT (Value Added Tax) is deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays all and any import duty and tax as regulated by your local customs.
format_quote
Technical Specifications:

Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz.
Bit depths: 16 / 24bit
Disk interface: USB2 – easy to obtain
Disk format: FAT32 – compatible with both Mac and PC
File type: Standard mono Broadcast WAV files
Monitoring: 1 x 1/4” TRS jack socket, headphone mix / solo
Physical: 19” rack mounted 1U (425x44x150m). Weight 2.1kg
Power: (9V-16V dc (<30W). 2.1mm dc inlet. PSU supplied
Audio i/o: Analogue inputs / outputs
Levels: -10dBu / +4dBu switchable
Max input / output level: +22dBu = 0dBFS
A-D / D-A conversion: 24bit, 96kHz 106dB S/N, 96dB THD+N
(typical A-weighted)
