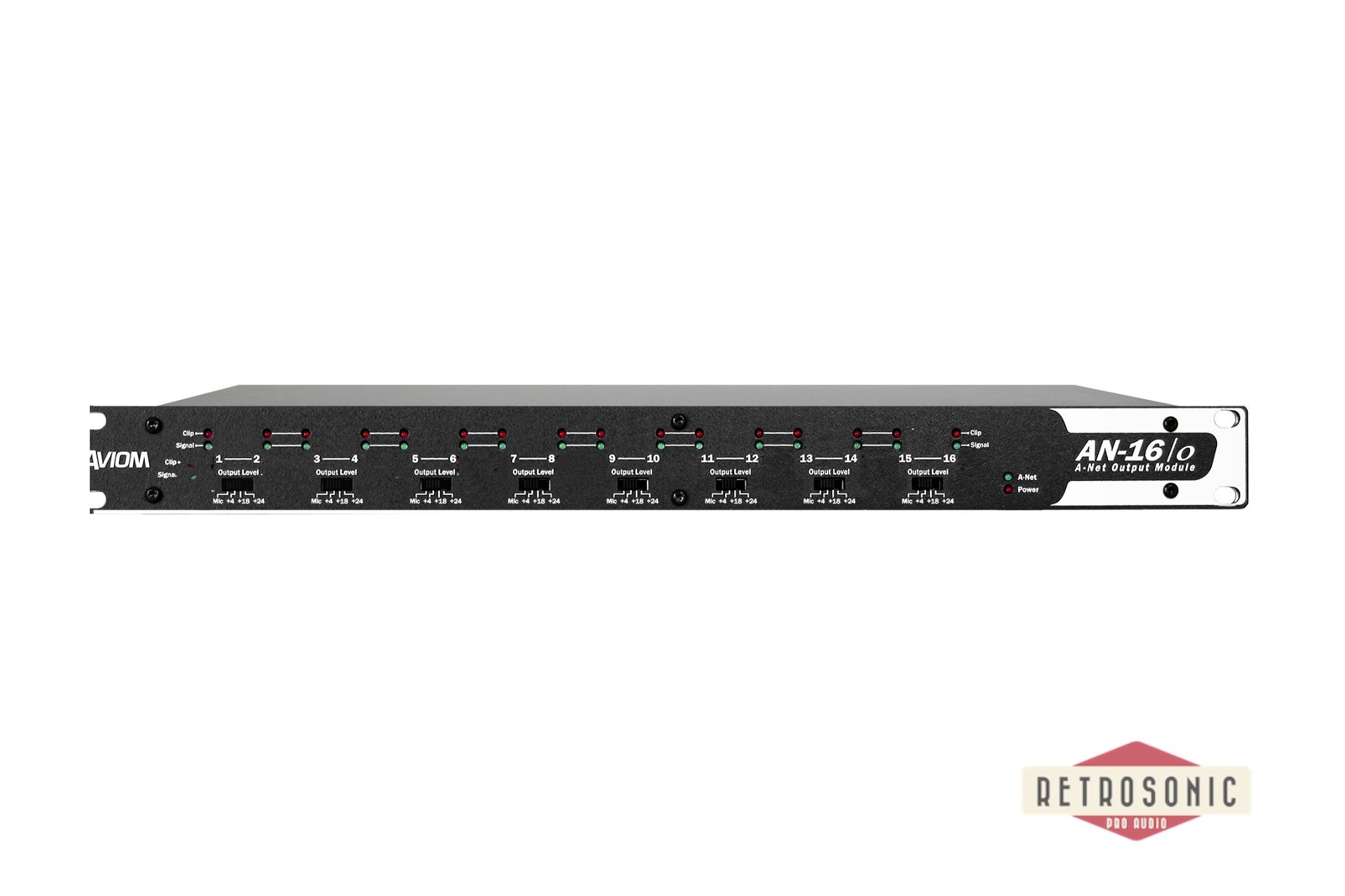

Aviom AN-16/o v.4, 16-ChMic- and Line-Level Out Module

The Aviom AN-16/o v.4 is a 16-channel analogue output module for Pro16 digital snake and audio distribution systems. It takes incoming A-Net audio and converts it back to balanced analogue outputs, making it a practical bridge between an Aviom network and consoles, wireless IEM transmitters, recorders, stage racks or studio equipment.

The unit provides 16 balanced outputs on two DB25 connectors, with output level selectable per channel pair. Choose between mic level, +4 dBu, +18 dBu or +24 dBu, depending on what you are feeding. This makes the AN-16/o v.4 easy to drop into different setups, from line-level console inputs to wireless in-ear transmitters or recording splits.

In A640 and A360 personal mixing systems, the AN-16/o v.4 can be used with Aviom’s Network Mix Back feature to collect stereo mixes from personal mixers and feed up to eight wireless IEM systems from a central rack. It is also useful anywhere you need clean analogue outputs from a Pro16 system, whether on stage, at FOH, in the studio or as part of a digital split.

A simple, tidy and dependable Aviom solution for getting audio out of the network and back into the analogue world.

Main features

* 16-channel digital-to-analogue output module
* Designed for Aviom Pro16 digital snake and audio distribution systems
* Converts A-Net Pro16 audio to balanced analogue outputs
* 16 balanced outputs on two DB25 multipin connectors
* Tascam analogue DB25 pinout
* Four-position output level switch per channel pair
* Output levels: mic, +4 dBu, +18 dBu and +24 dBu
* 24-bit, 48 kHz D/A conversion

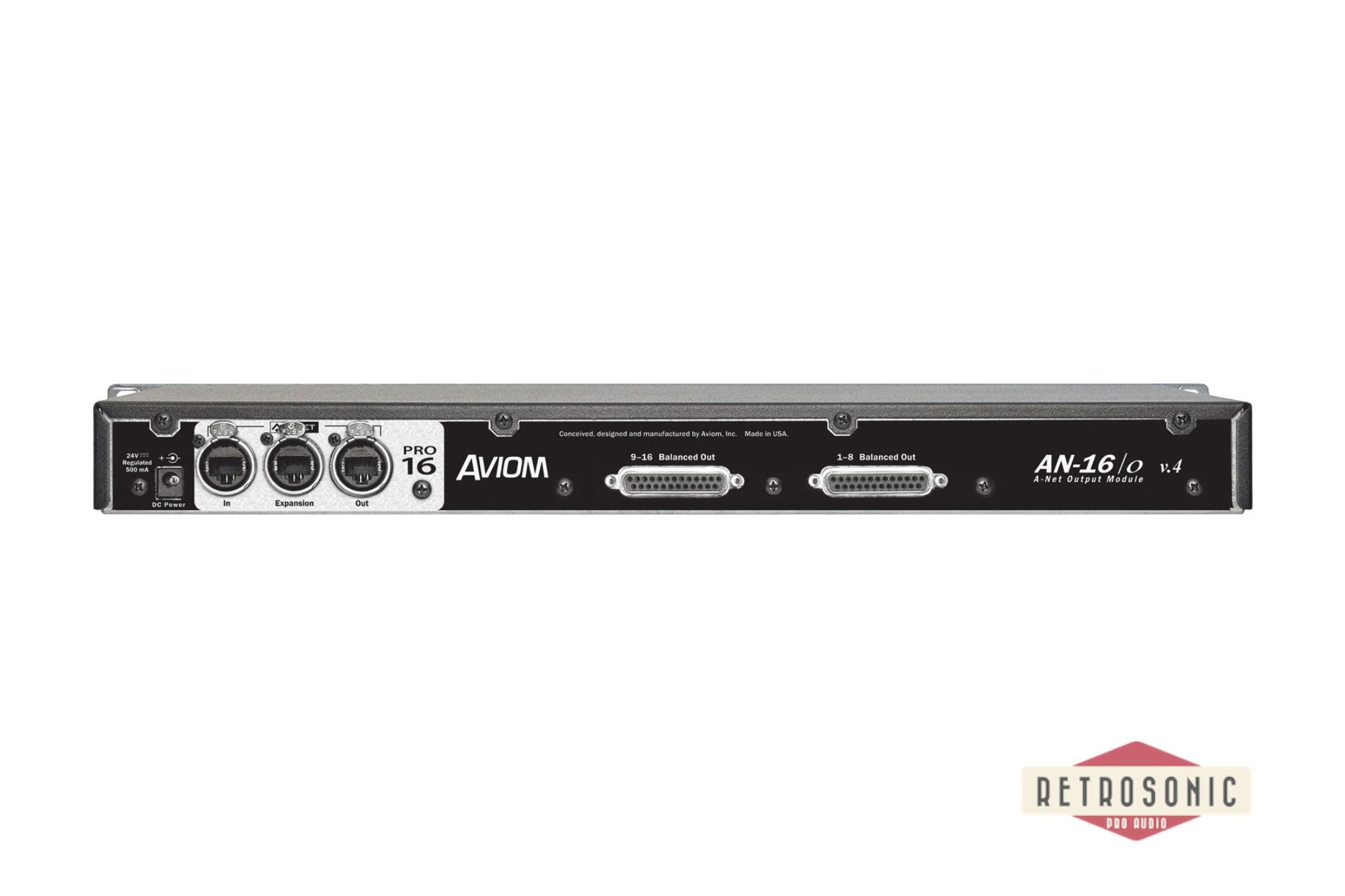

* A-Net In, A-Net Out and A-Net Expansion on Neutrik EtherCon connectors
* A-Net Expansion can combine two A-Net streams, up to 32 channels, on one Cat-5e cable
* Per-channel signal present and clip LEDs
* Maximum output level: +24 dBu
* Frequency response: 4 Hz to 22 kHz
* THD+N: < 0.004%
* Crosstalk: -90 dB
* Latency: < 0.620 ms, measured from analogue input to analogue output
* Supports up to eight A640 or A360 stereo mixes via Network Mix Back
* Suitable for wireless IEM racks, digital snakes, recording splits and studio distribution
* 1U rackmount format
* External universal power supply, 100-240 V, 50/60 Hz
* DB25 breakout cables not included
