Aviom AN-16/i v.2, 16-Ch Line-Level Input Module

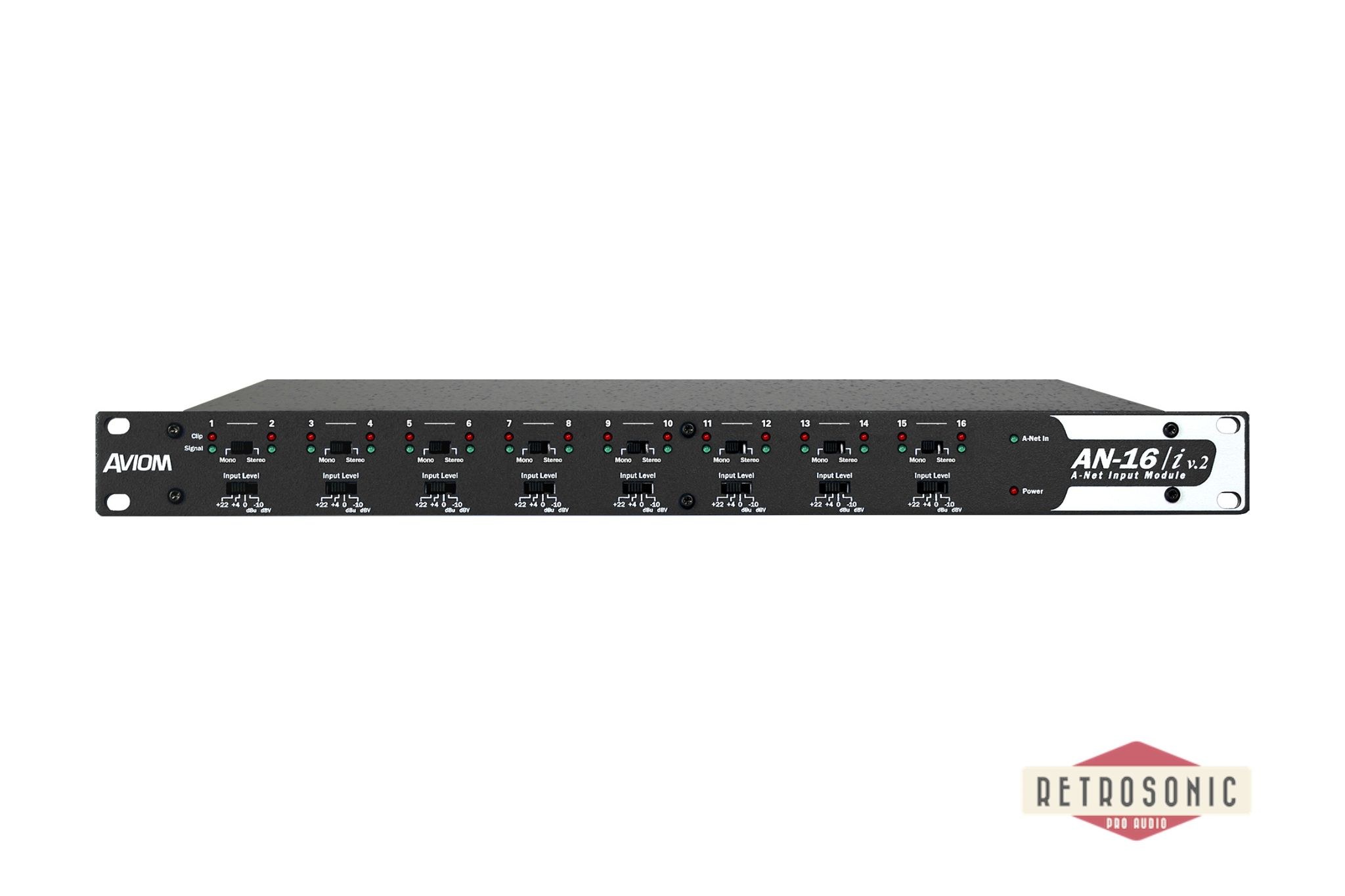

The Aviom AN-16/i v.2 is the front end of a Pro16 personal mixing system, made to take up to 16 balanced line-level signals from your console and send them into the Aviom world over a single Cat-5e cable.

Place it near the FOH or monitor desk, connect direct outs, inserts, aux sends, groups or submixes, and the AN-16/i v.2 converts those analogue signals into 24-bit, 48 kHz A-Net audio for Aviom personal mixers and output devices. Each input also has a matching TRS thru, so the unit can sit neatly inside an existing signal path without stealing your patch points.

For larger systems, the A-Net In connection and slot range selector allow multiple Pro16 input devices to be chained together, creating higher channel count Pro16e streams for A640, A360 and A320 personal mixers. Stereo Link switches make it easy to keep paired sources together, while per-channel signal and clip LEDs help keep levels under control.

A clean, practical and very Aviom-style solution for building personal monitor systems, digital snakes and straightforward audio distribution rigs.

Main features

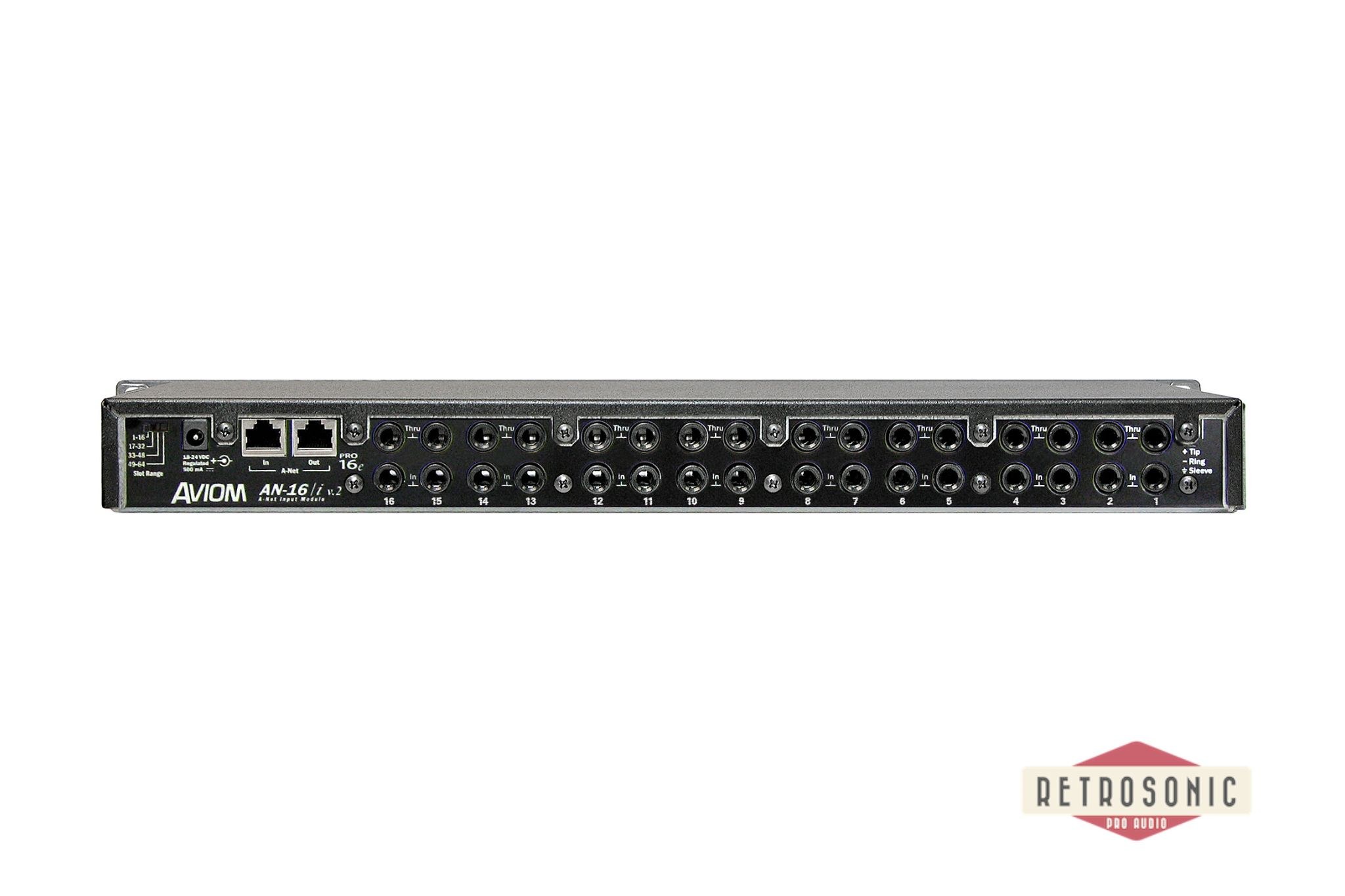

* 16 balanced line-level inputs on 1/4” TRS connectors
* 16 balanced TRS thru connectors
* Converts analogue line-level audio to Pro16e A-Net
* 24-bit, 48 kHz A/D conversion
* A-Net Out on RJ45 for Cat-5e connection
* A-Net In for chaining multiple Pro16 input devices
* Four-position slot range selector for Pro16e systems
* Supports up to 64 available audio sources when multiple units are chained
* Stereo Link switches for each odd/even channel pair
* Four-position input gain switches: +22, +4, 0 and -10 dB
* Signal present and clip LEDs per channel
* Frequency response: 4 Hz to 22 kHz
* THD+N: < 0.003%
* Crosstalk: -90 dB
* Latency: < 0.880 ms from analogue input to analogue output
* Compatible with A640, A360, A320 and A-16II personal mixers
* Can be used with AN-16/o v.4 Output Module for digital snake applications
* 1U rackmount format
* External universal power supply, 100-240 V, 50/60 Hz
