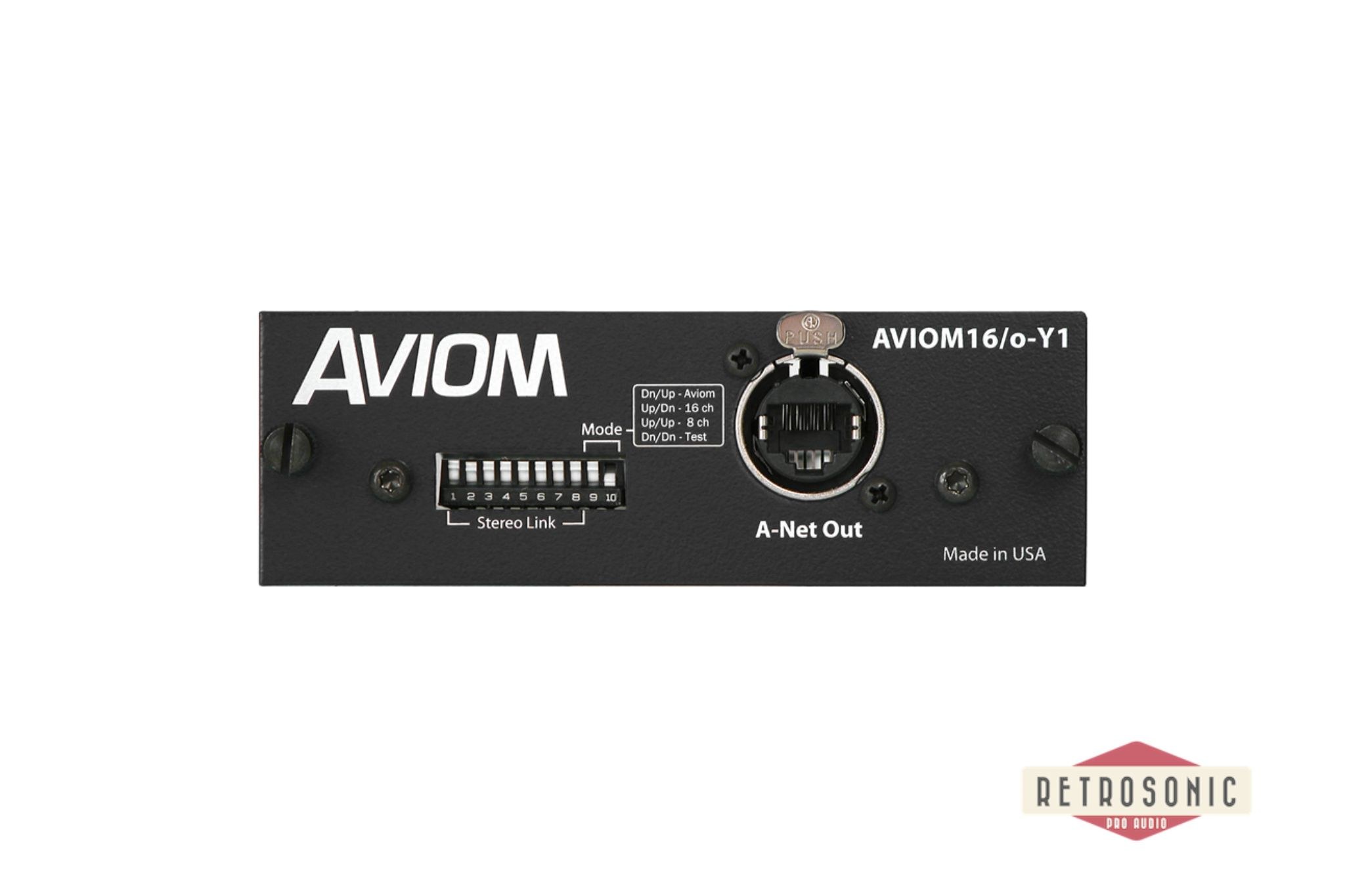

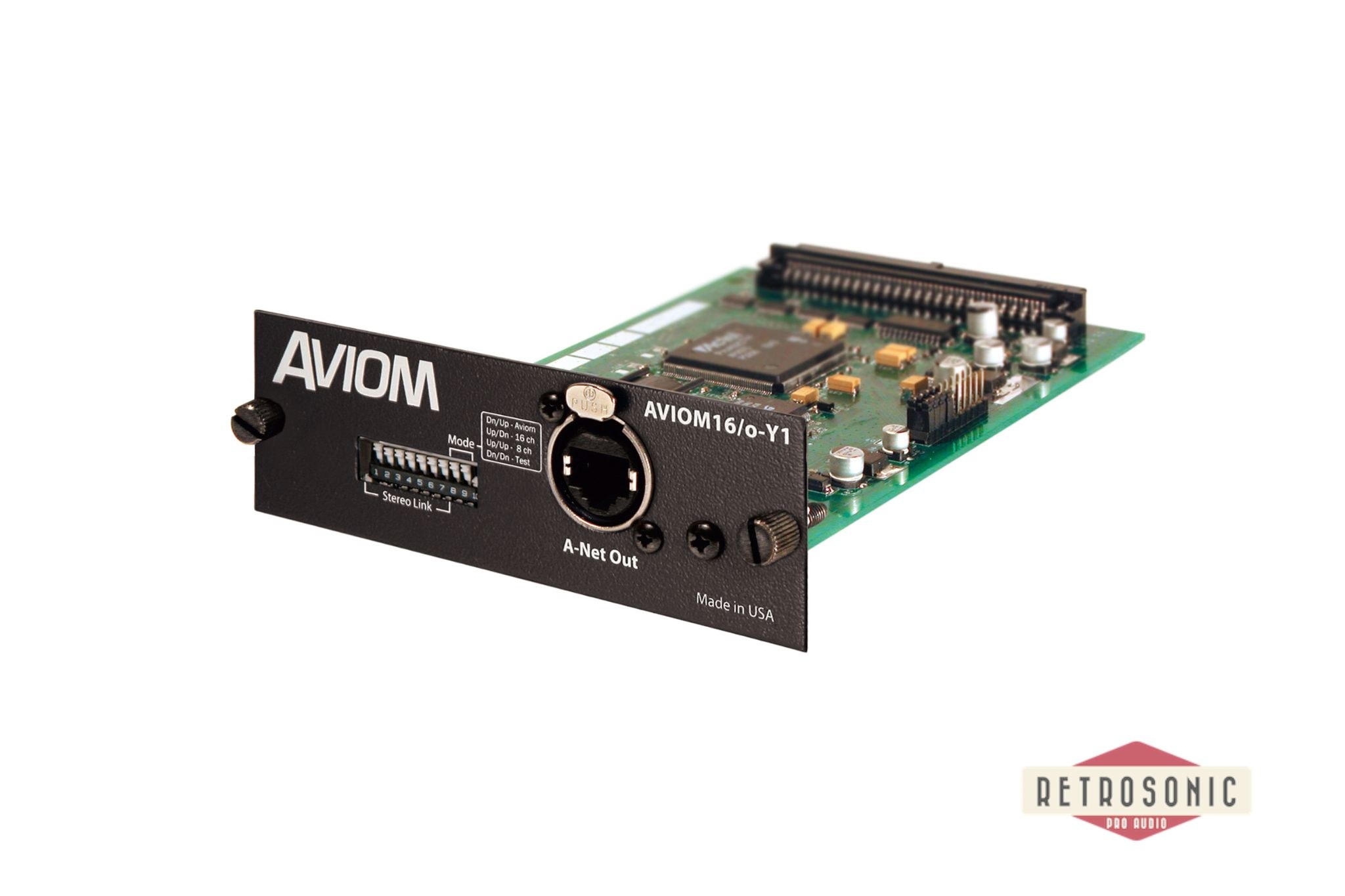

Aviom 16oY 16-Ch A-Net Card for Yamaha MY-Series

The Aviom AVIOM16/o-Y1 is a 16-channel Pro16 A-Net output card designed for Yamaha digital consoles and devices that use the mini-YGDAI MY expansion card format. It gives a Yamaha mixer a direct digital path into an Aviom personal monitoring system, without needing extra analogue outputs or a separate analogue input module.

Installed in a Yamaha MY slot, the card sends up to 16 channels of 24-bit audio over a single Cat-5e cable, keeping the monitor system tidy, reliable and easy to expand. Sources can be assigned directly from the Yamaha console, so channels, direct outputs, auxes, groups or submixes can be routed into the Aviom system as needed. From there, the A-Net output can feed Aviom Personal Mixers such as the A360, A320 or A-16II, or connect to compatible A-Net distributors for larger stage and studio setups.

Simple, practical and very “fit and forget”, the AVIOM16/o-Y1 is a clean solution for adding Aviom personal monitoring to compatible Yamaha desks. It keeps the signal digital, reduces cabling, and makes cue system setup feel much less like plumbing and much more like mixing.

Main features

* 16-channel Pro16 A-Net output card for Yamaha digital mixers
* Yamaha mini-YGDAI MY expansion card format
* 1 A-Net output on EtherCon RJ45 connector
* Sends up to 16 channels over a single Cat-5e cable
* 24-bit uncompressed digital audio
* Supports 44.1 kHz and 48 kHz sample rates
* Audio routing assigned directly from the Yamaha console interface
* Channel Link DIP switches for stereo source pairing
* Compatible with Aviom Pro16 personal mixing systems
* Works with A360, A320, A-16II and compatible A-Net distributors
* Cable runs up to 500 ft / 150 m between A-Net devices
* Powered directly from the Yamaha host device, no external PSU required
* Multiple cards can be used in compatible consoles with available MY slots
* Not compatible with Yamaha TF Series consoles, as they do not have MY expansion slots
