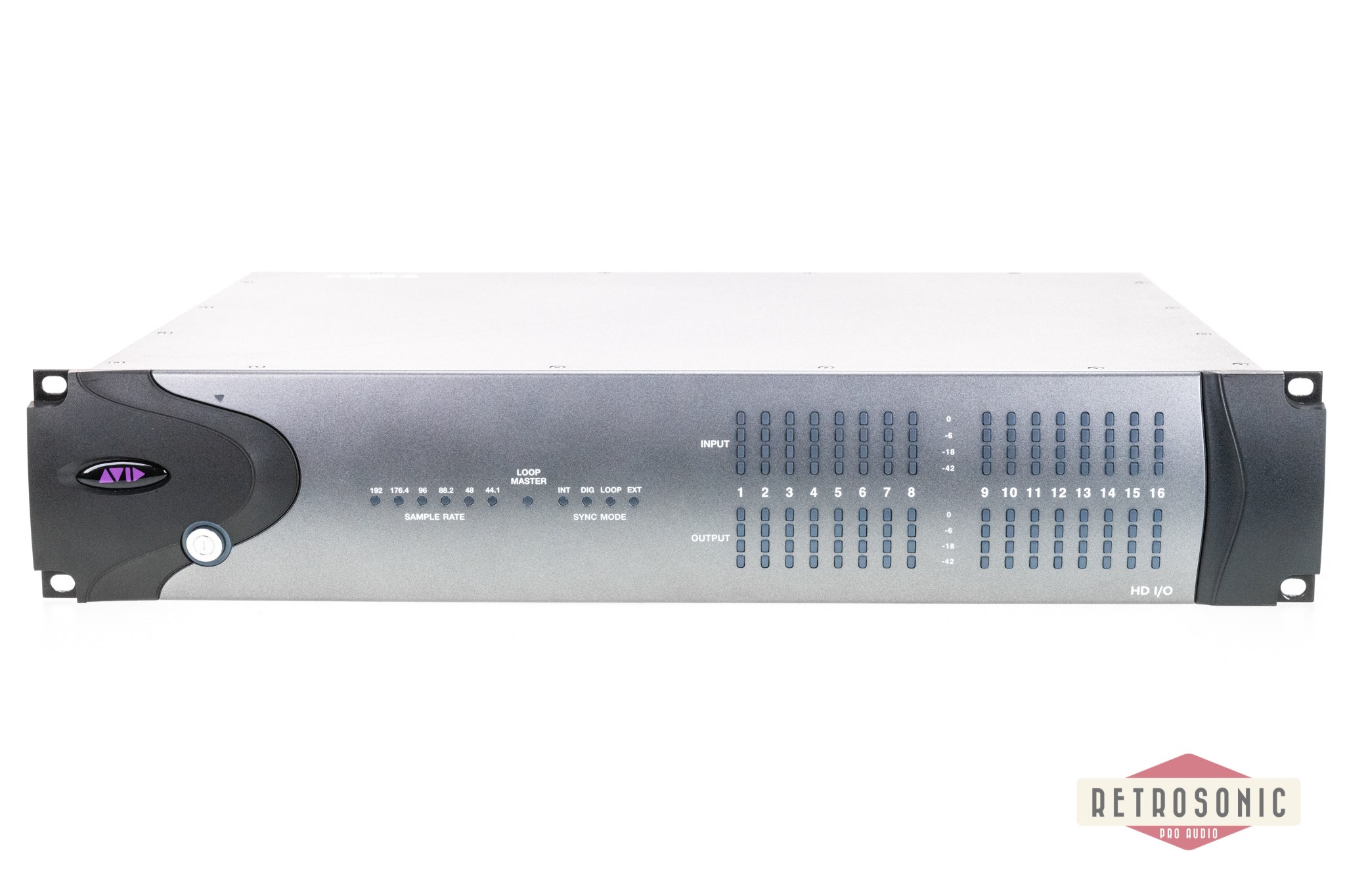

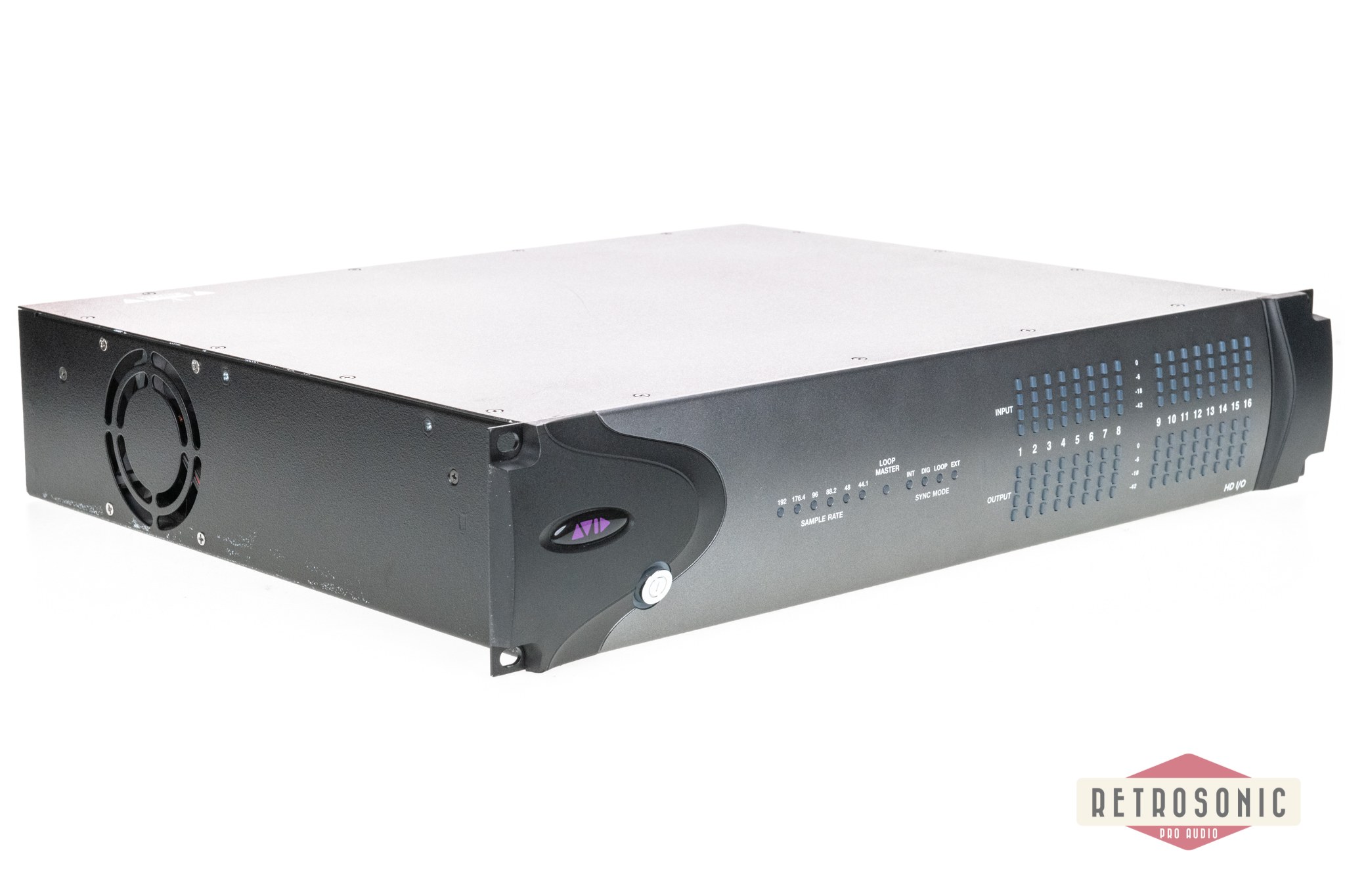

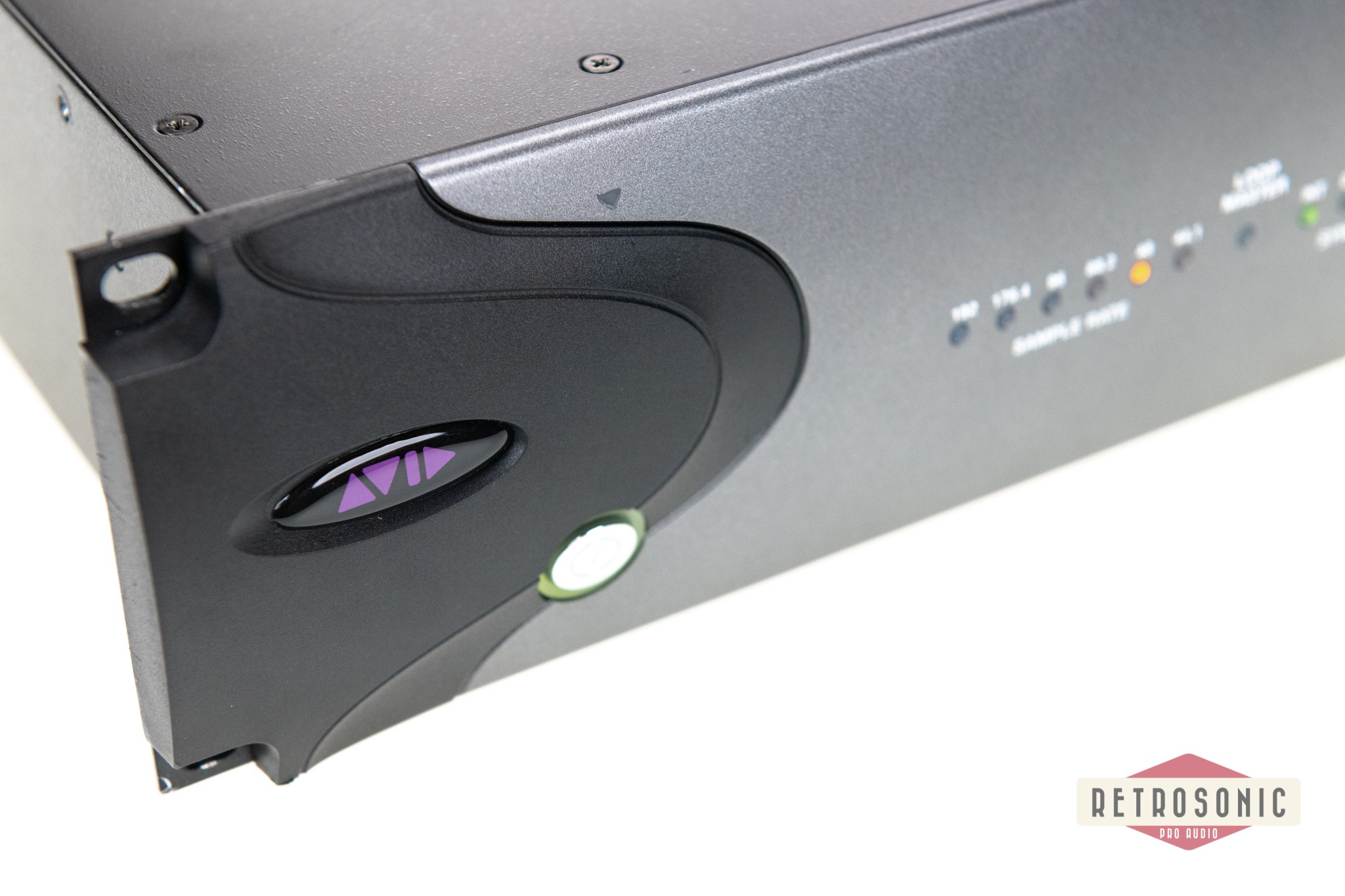

HD I/O is a multi-channel digital audio interface designed for use with Pro Tools|HD and Pro Tools|HD Native systems.
HD I/O features 24-bit analog-to-digital (A/D) and digital-to-an- alog (D/A) converters, and supports sample rates of up to 192 kHz.
This HD I/O comes in 16x16 configuration: 16 x 16 digital in and out

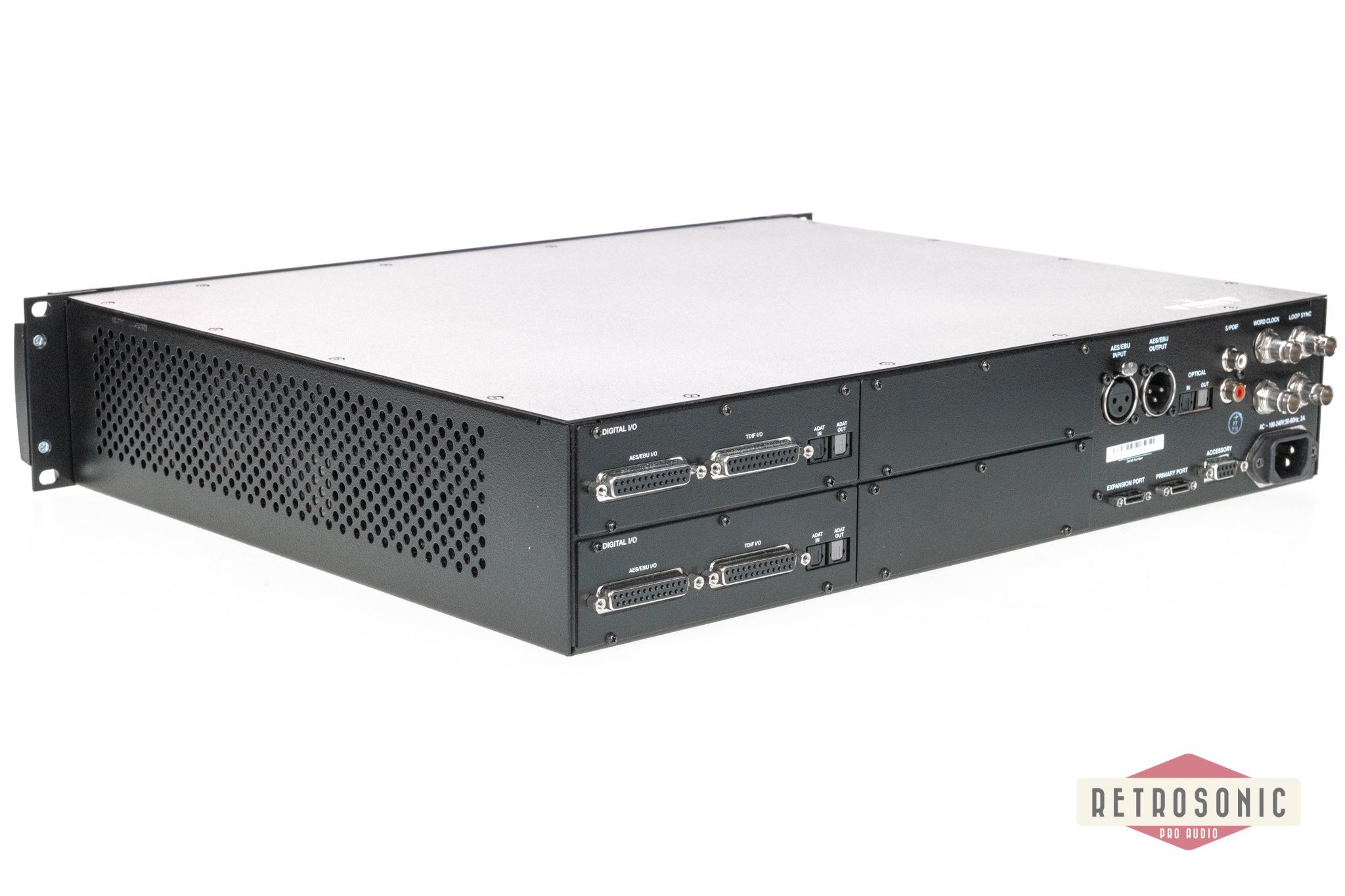

Cards can be removed and swapped for a different configuration.
HD I/O provides up to sixteen discrete channels of Pro Tools input and output, each with a 4-segment LED meter. The total available analog and digital I/O is dependent on the configuration of Analog and Digital Expansion I/O cards installed in HD I/O.

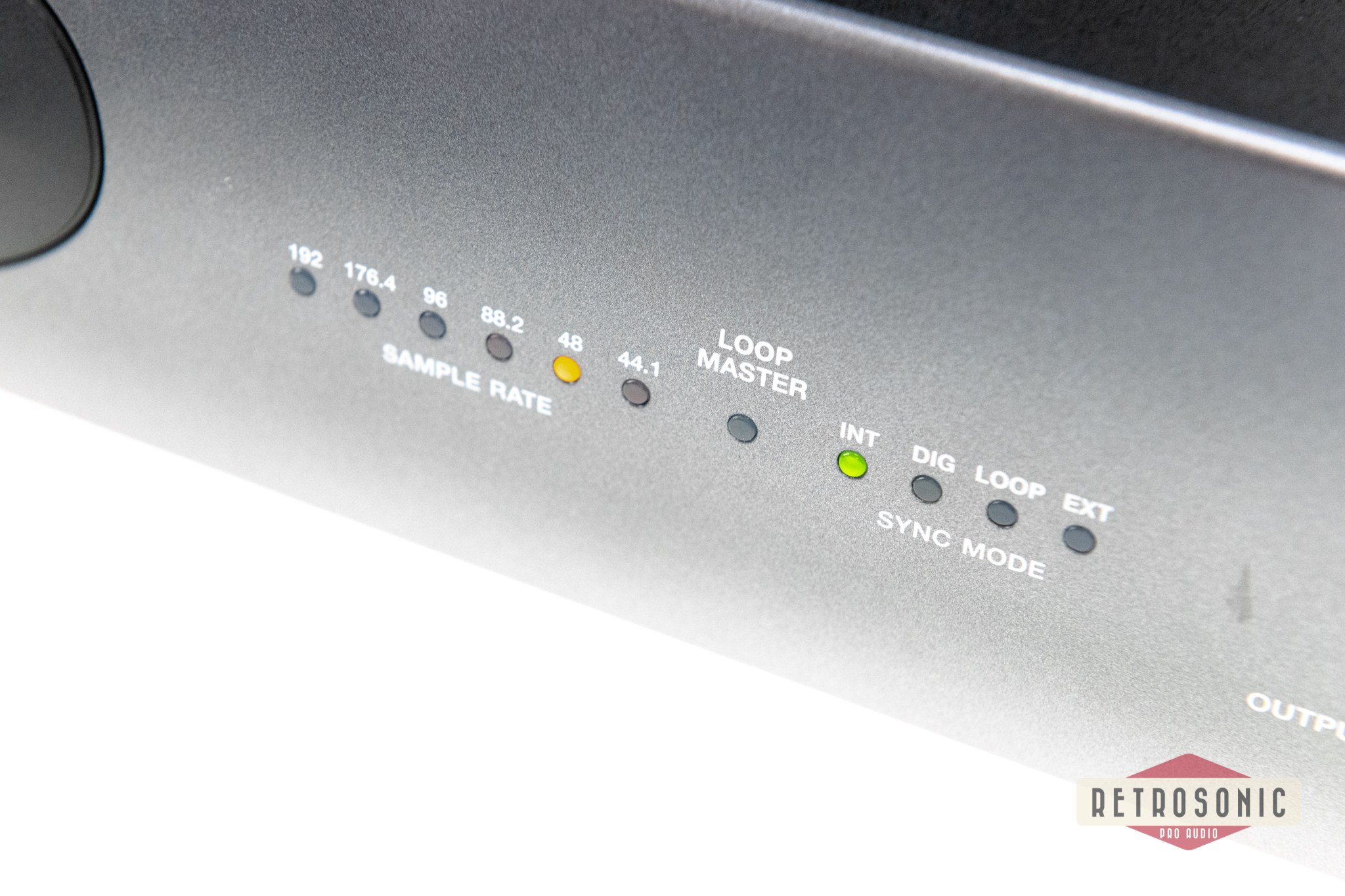

• Up to sixteen channels of 24-bit D/A and A/D converters for superior analog input and out- put at sample rates of 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz with Analog In and Analog Out HD I/O cards
• Soft Clip and Curv limiting circuits to protect against clipping on analog input

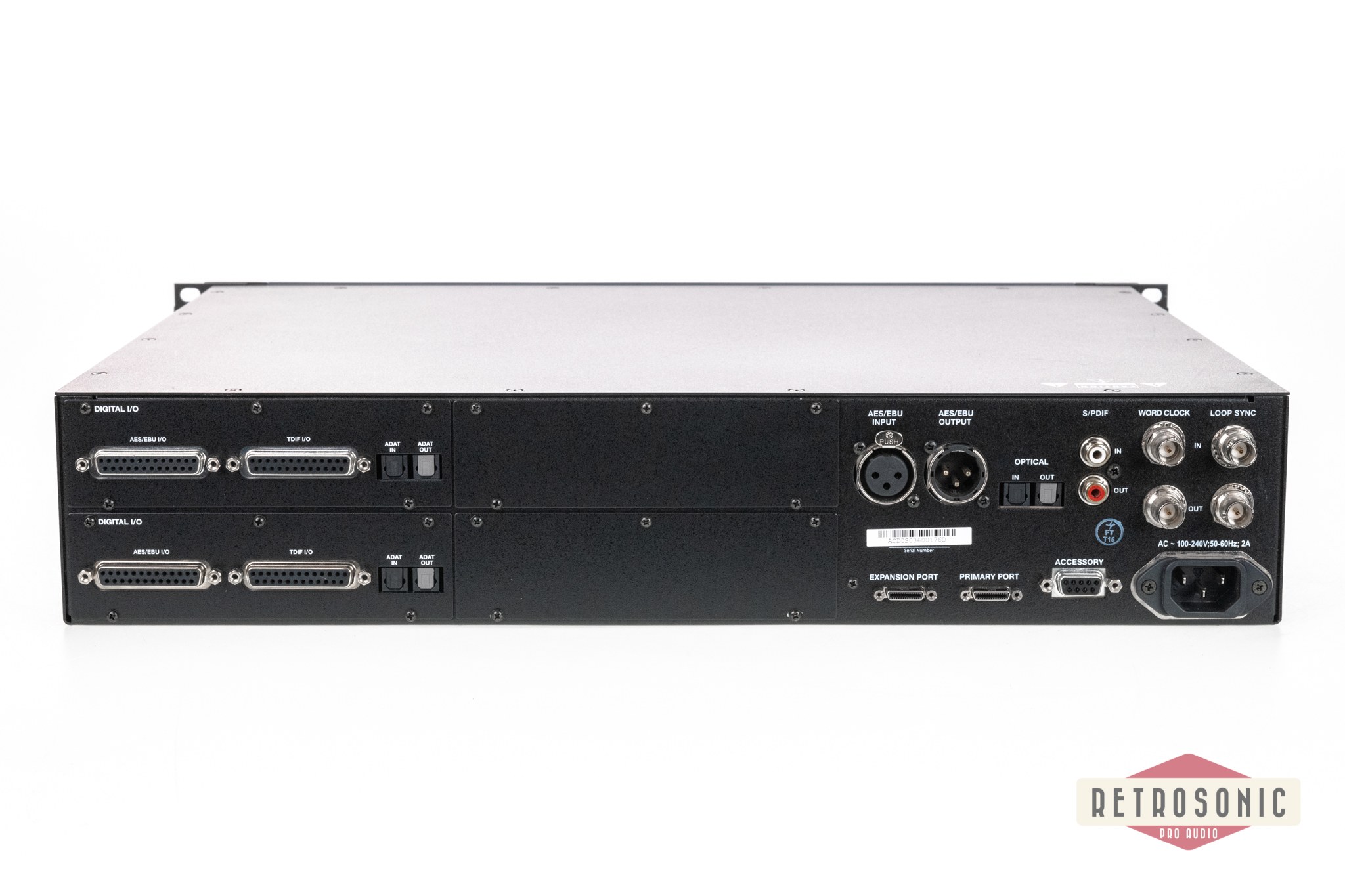

• Up to sixteen channels of 24-bit digital I/O, using AES/EBU, TDIF DB-25, or Optical at sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz with a Digital HD I/O card
• Real-time sample rate conversion on digital inputs with a Digital I/O card (up to sixteen channels of AES/EBU, Optical, or TDIF)
• SupportforS/MUXOpticalforsampleratesof 88.2 kHz and higher
• Support for 2 channels of S/PDIF Optical (en- closed) with sample rates of up to 96 kHz
• 2 channels of AES/EBU I/O (enclosed) with support for sample rates up to 192 kHz
• 2 channels of 24-bit-capable S/PDIF I/O (en- closed) with support for sample rates up to 192 kHz

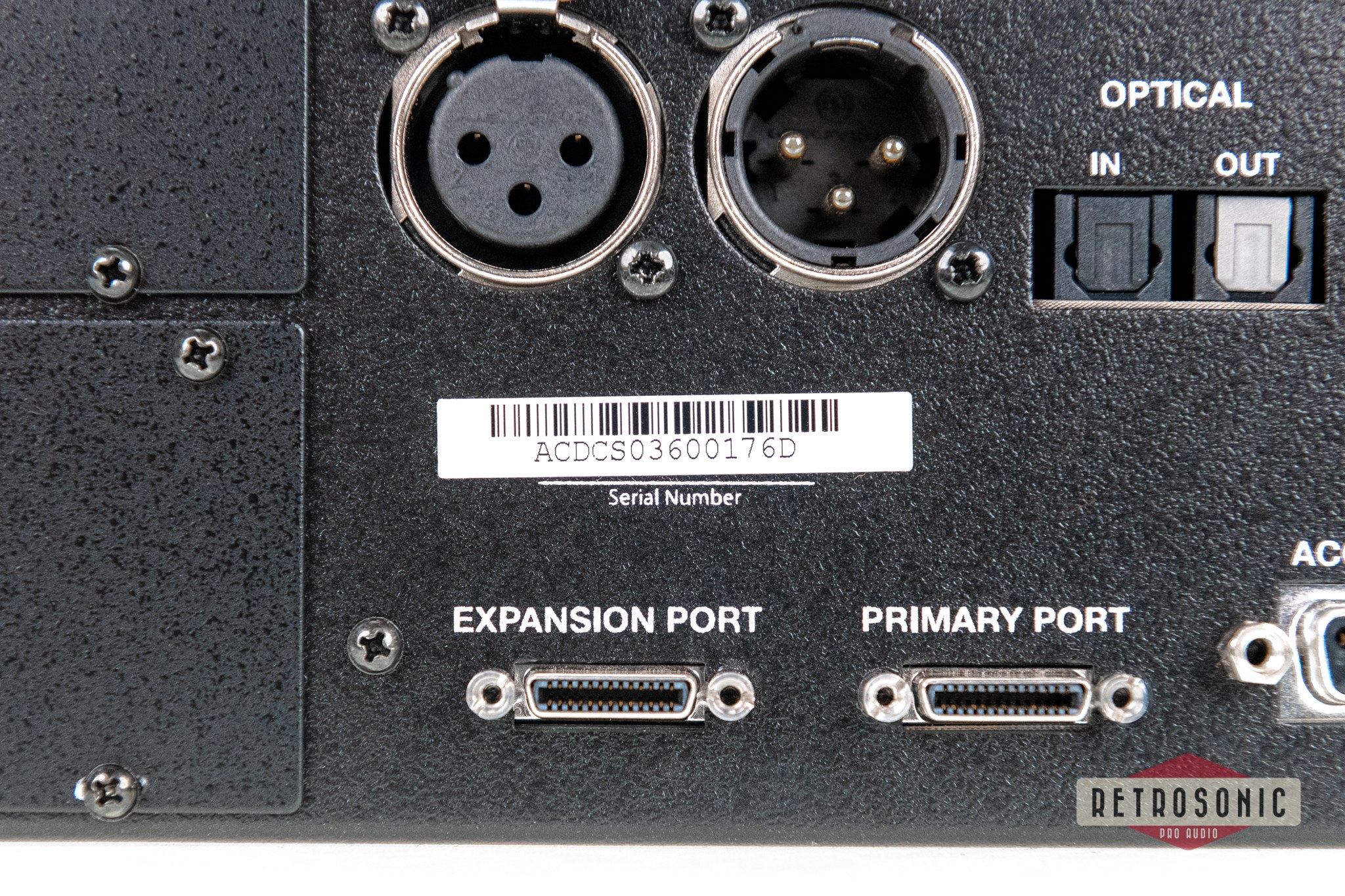

• Loop Sync input and output for connecting additional Pro Tools|HD interfaces and peripherals
• External Clock input and output for synchronizing HD I/O with external Word Clock devices
• Optional addition of I/O cards to expand analog or digital I/O
• Simultaneous use of multiple Pro Tools|HD audio interfaces to further expand system input and output

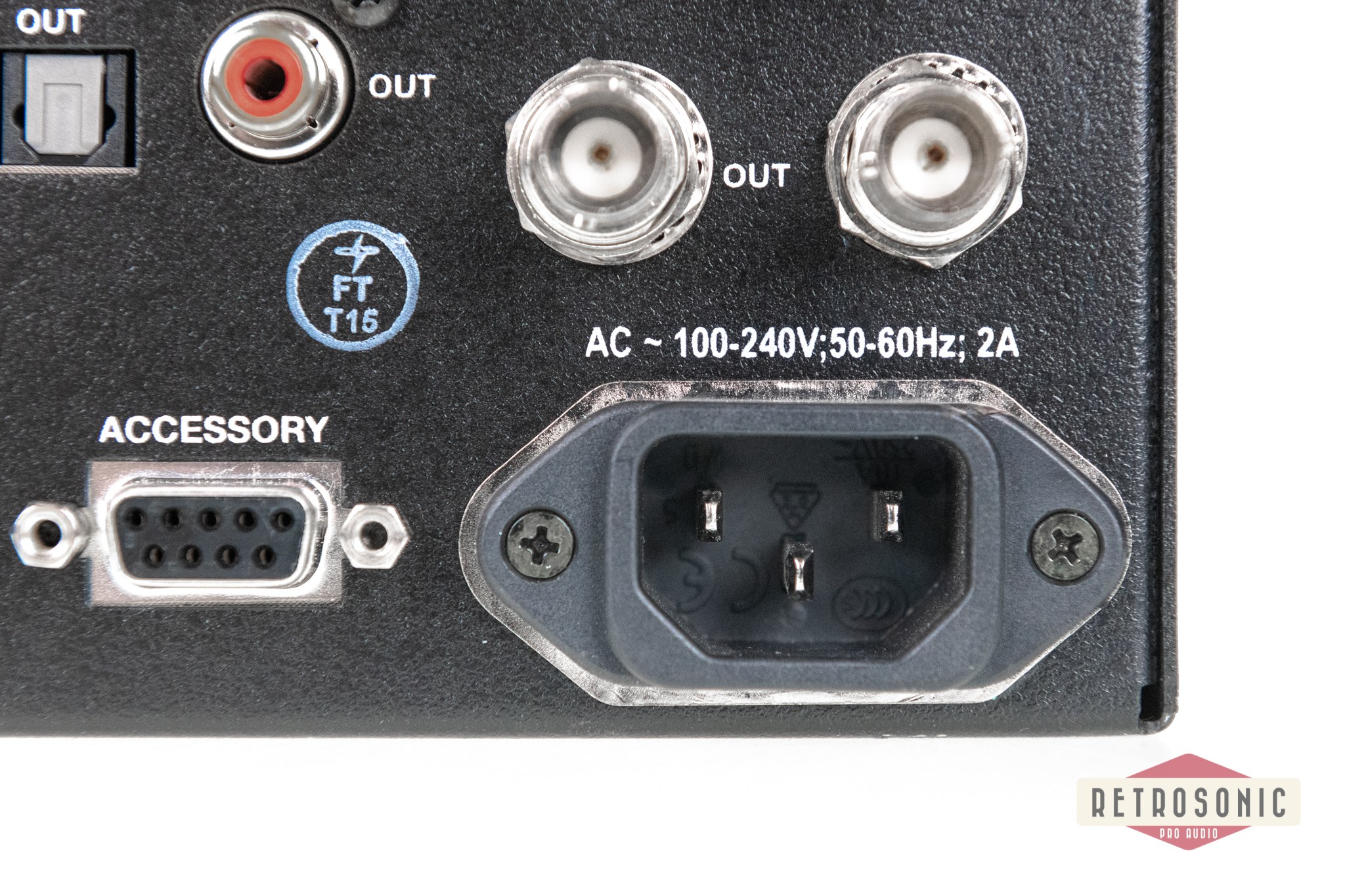

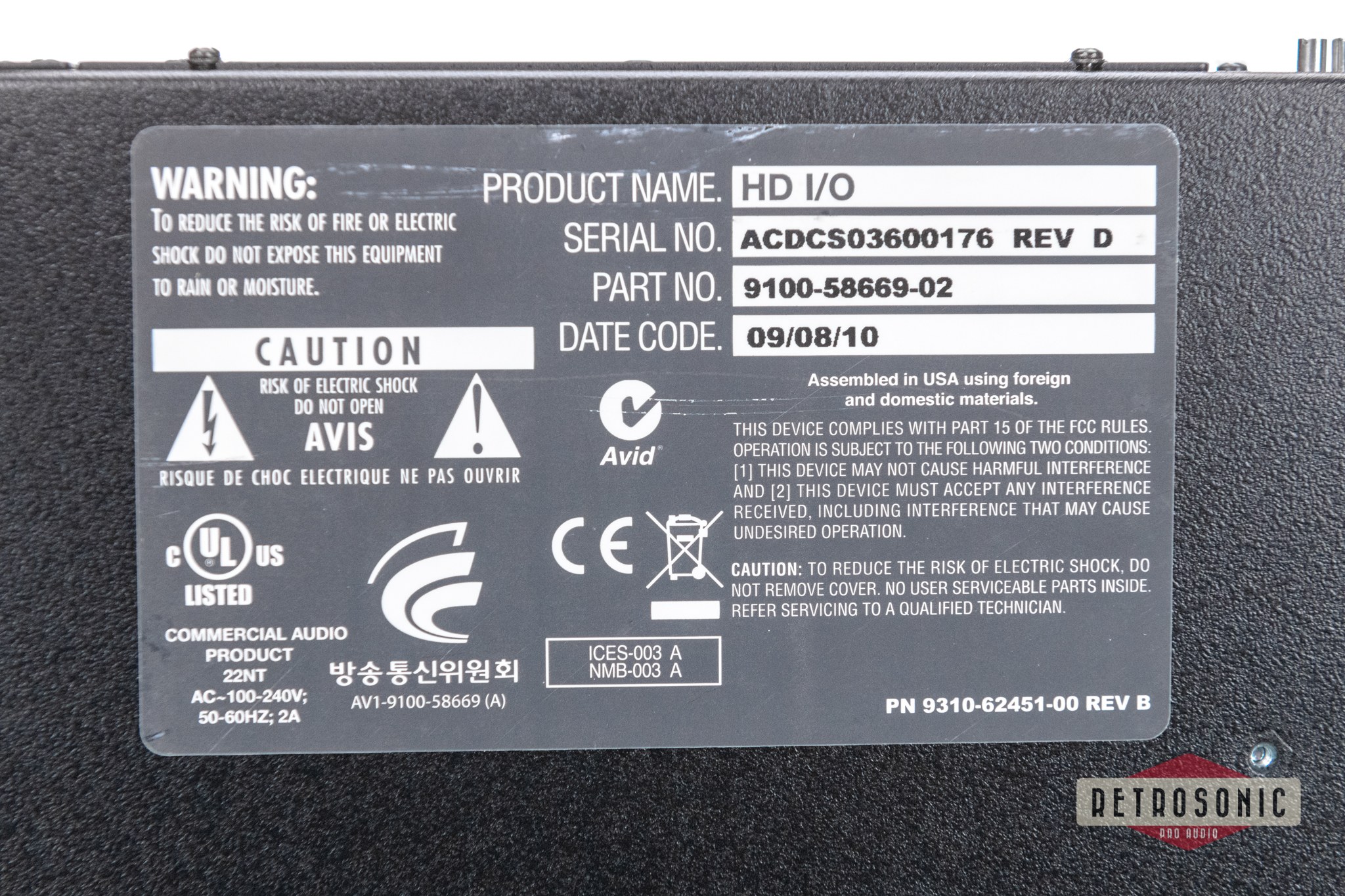

Excellent working condition, good visual condition. PSU works on 100-240V. EU power cord included.
