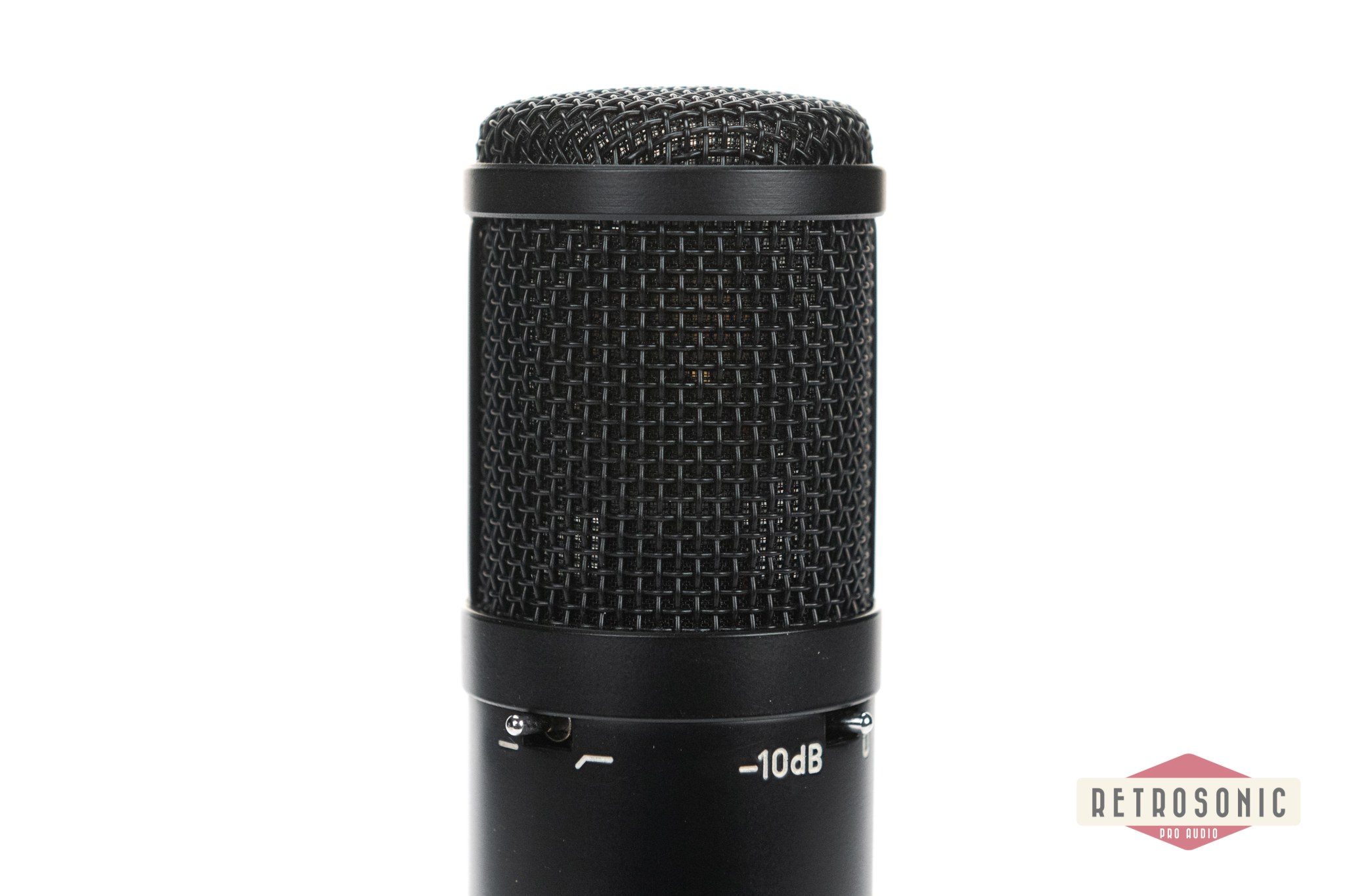

The CM800t uses a double-sided, dual back-plate 32mm K67 type capsule with a HF rise similar to the original capsule utilized in the c800g.

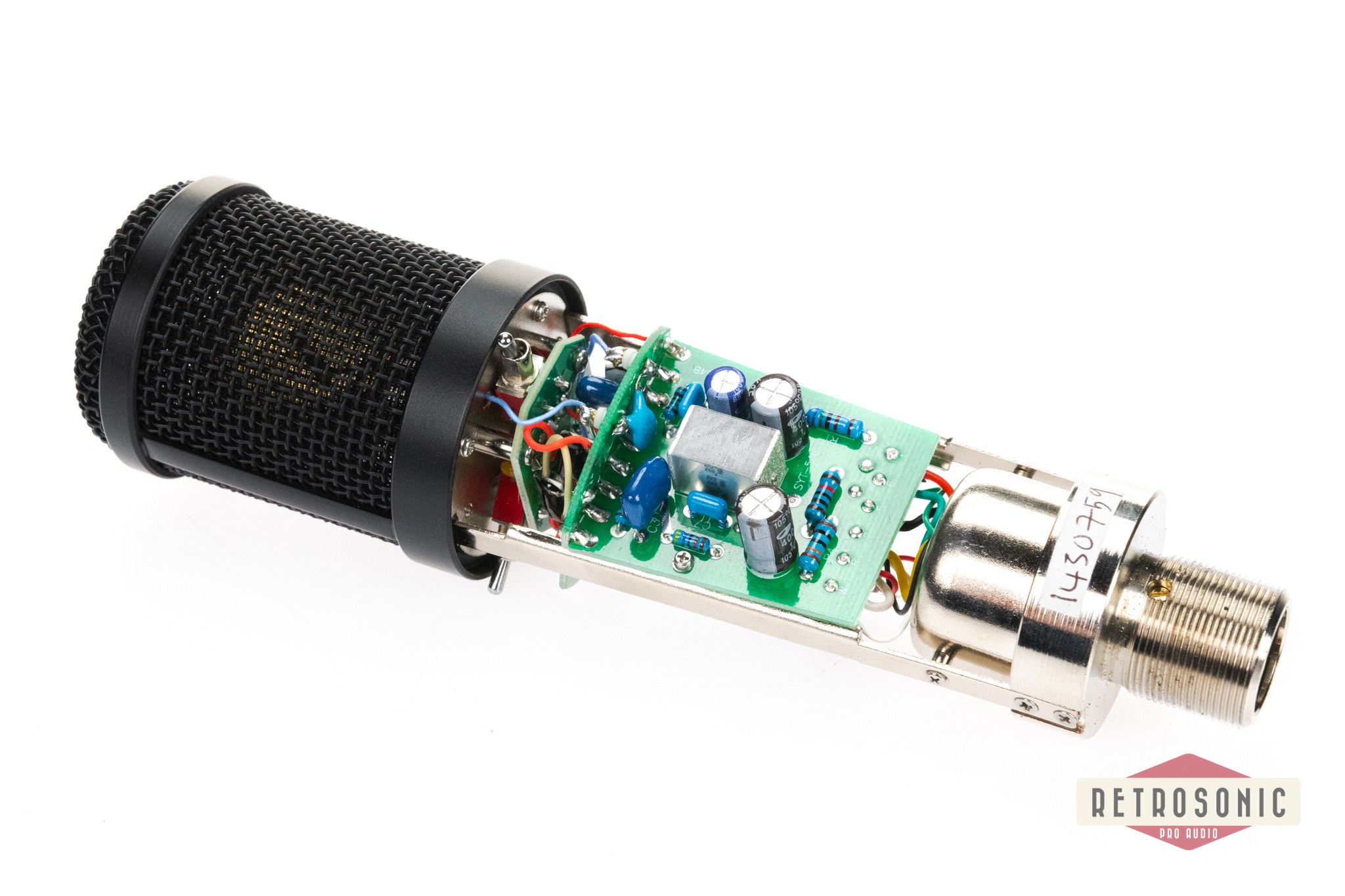

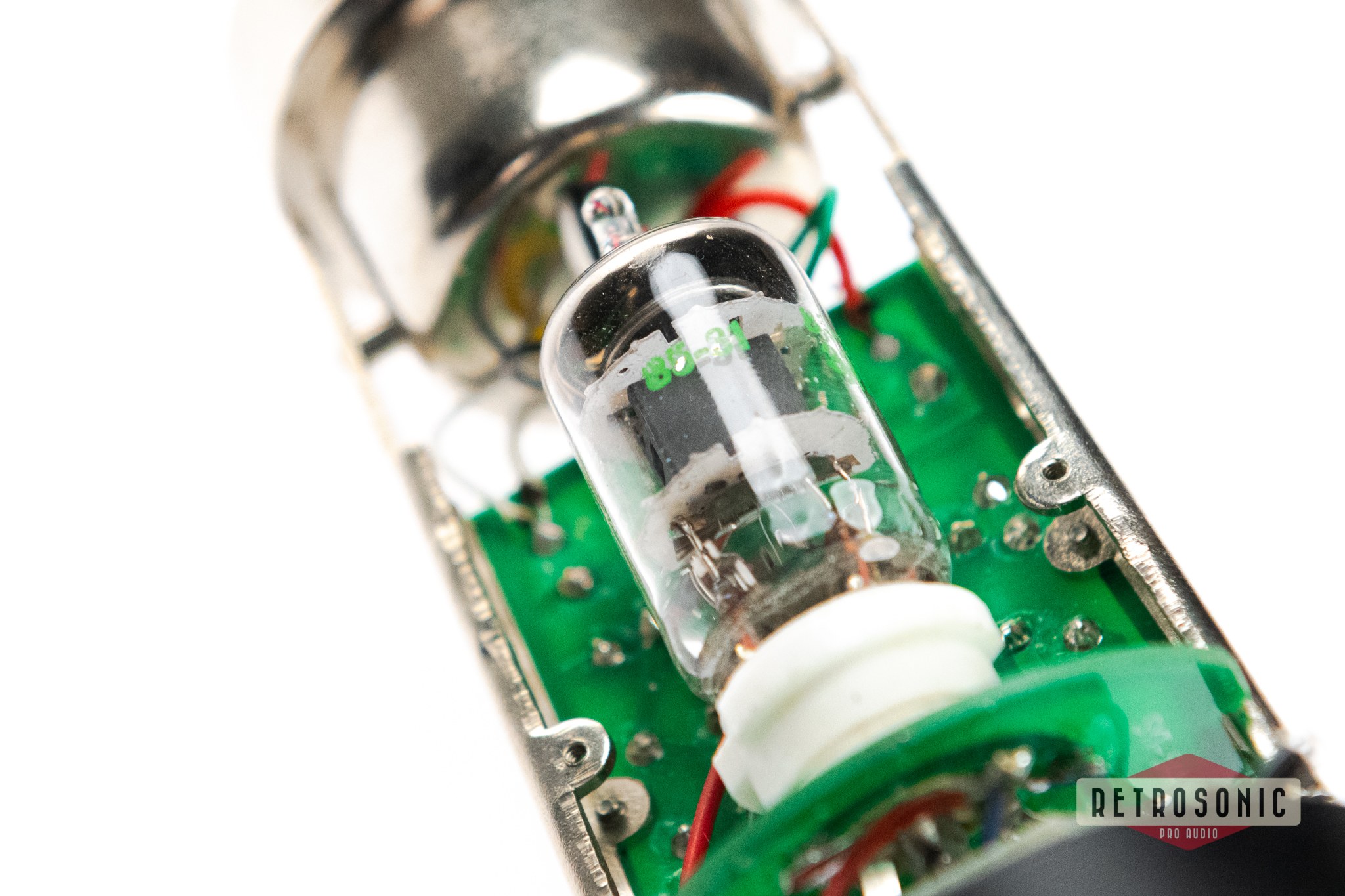

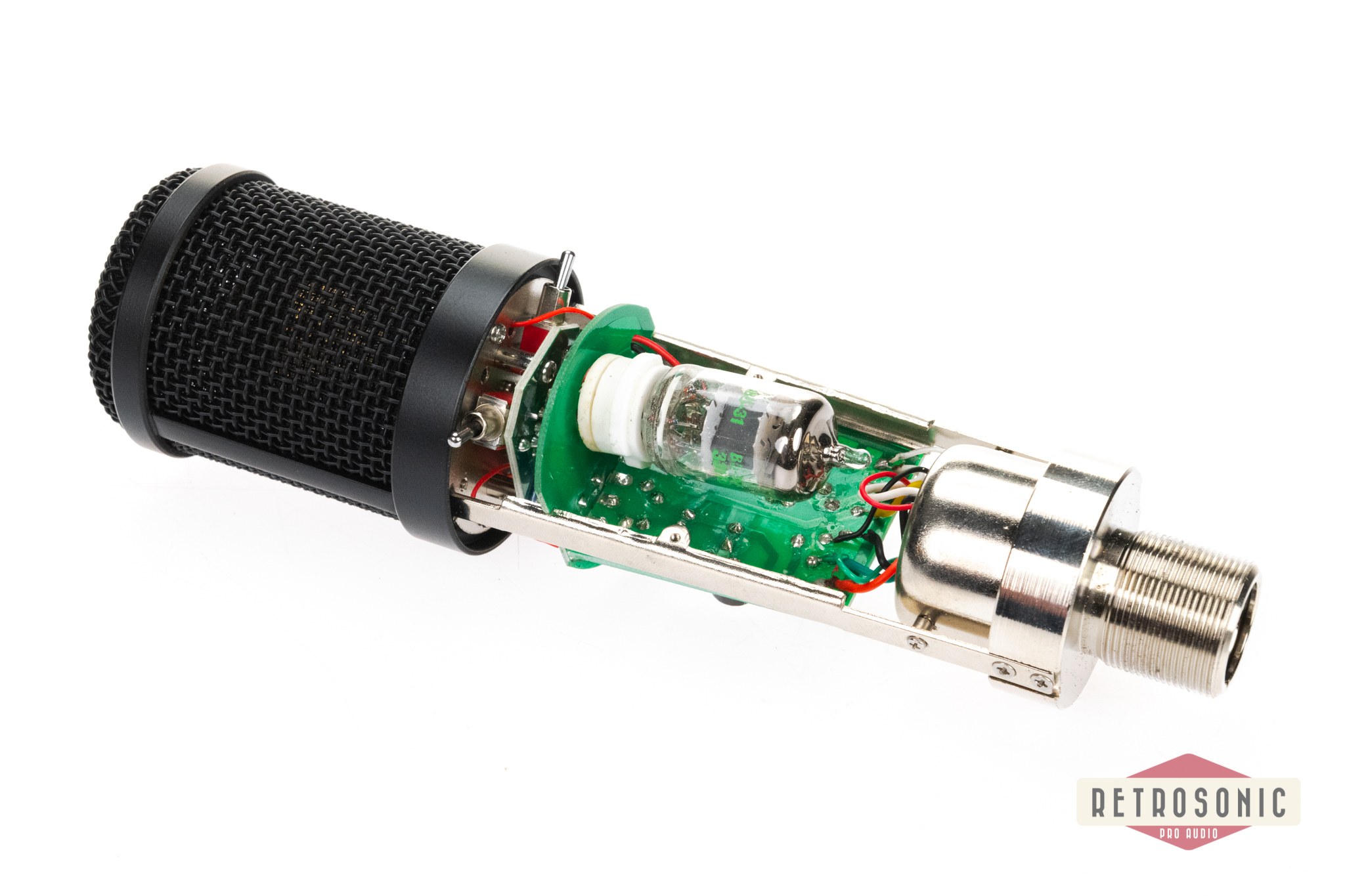

The circuit is designed around a military spec'd GE/JAN 5654W tube which is configured the same way as the C800G circuit that used a 6AU6a tube.

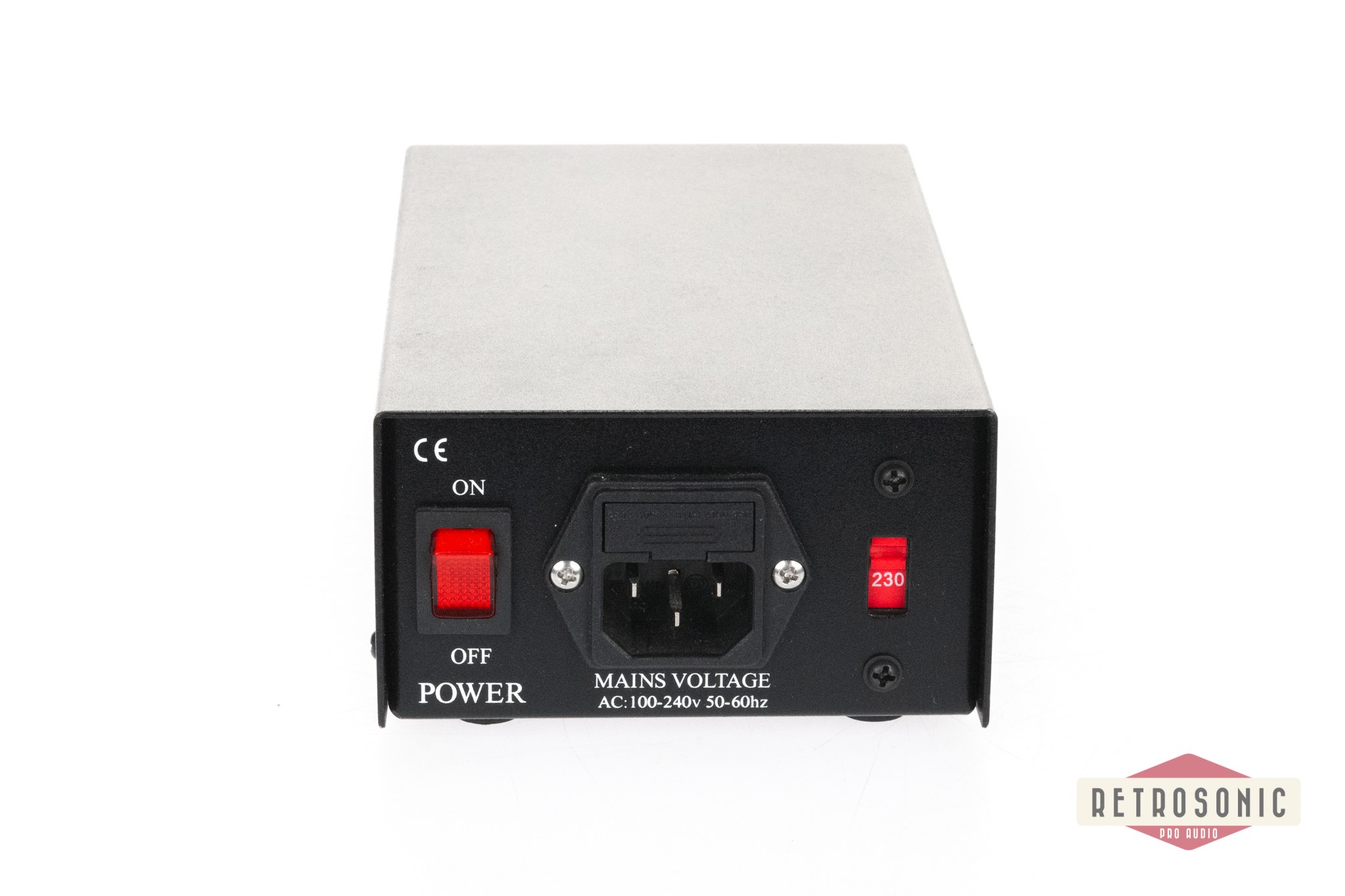

PSU works on 100-240V, 50-60Hz
32mm double-diaphragm K67-type capsule

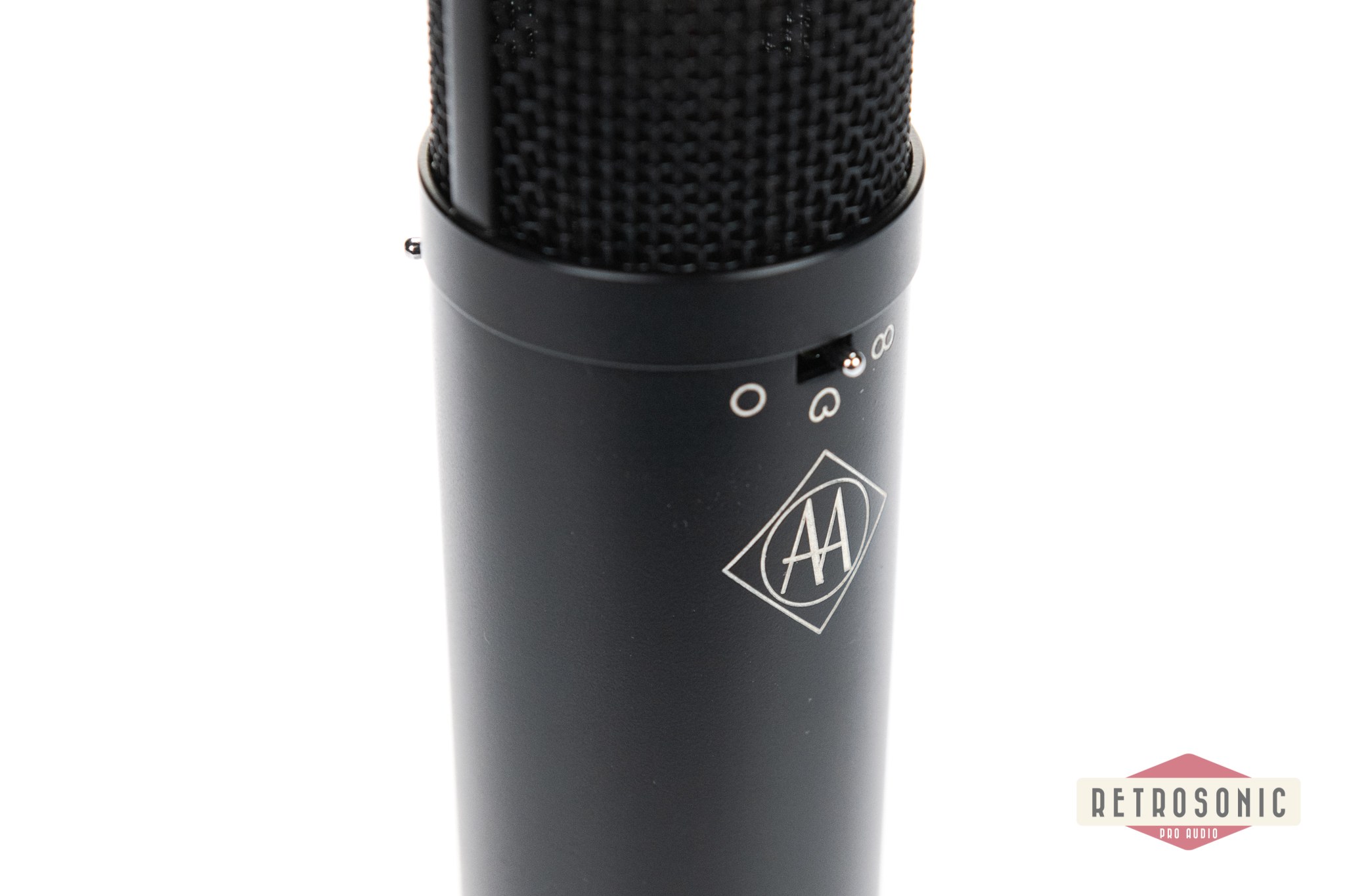

Selectable omni, cardioid and figure-eight pickup patterns
Class “A” single stage tube circuit coupled to a high quality dual bobbin transformer featuring bi-metal laminations that can handle the presence rise of K67 style capsule.

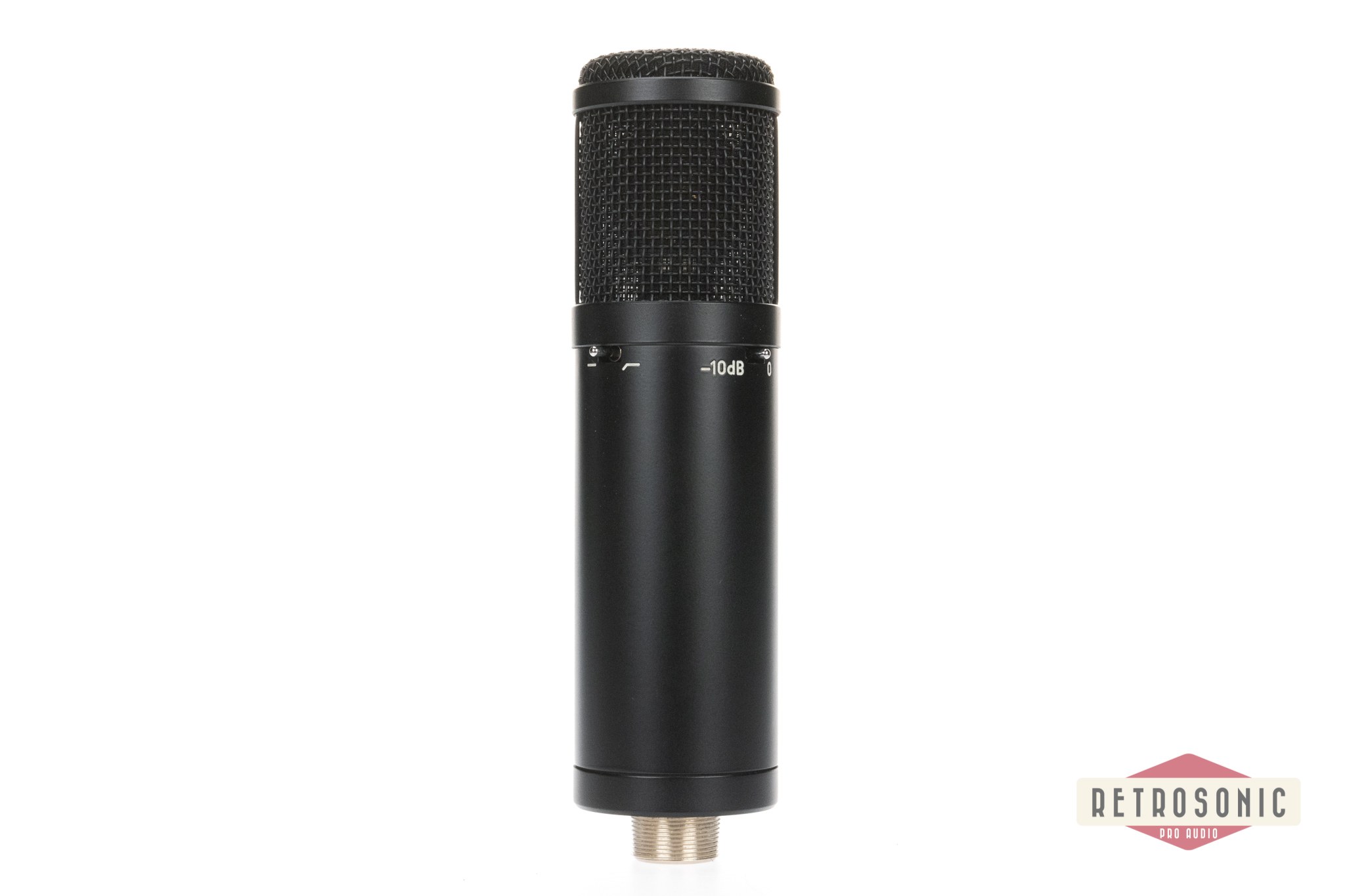

100Hz switchable roll-off (rumble filter)
Switched -10dB pad
Impedance: <200 ohms (load impedance <1.2K)
Noise: <14db (A-weighted)
Distortion: <1% @ 128dB without pad and 138dB with pad
Output: >10dBu with <0.5% distortion 20-20kHz

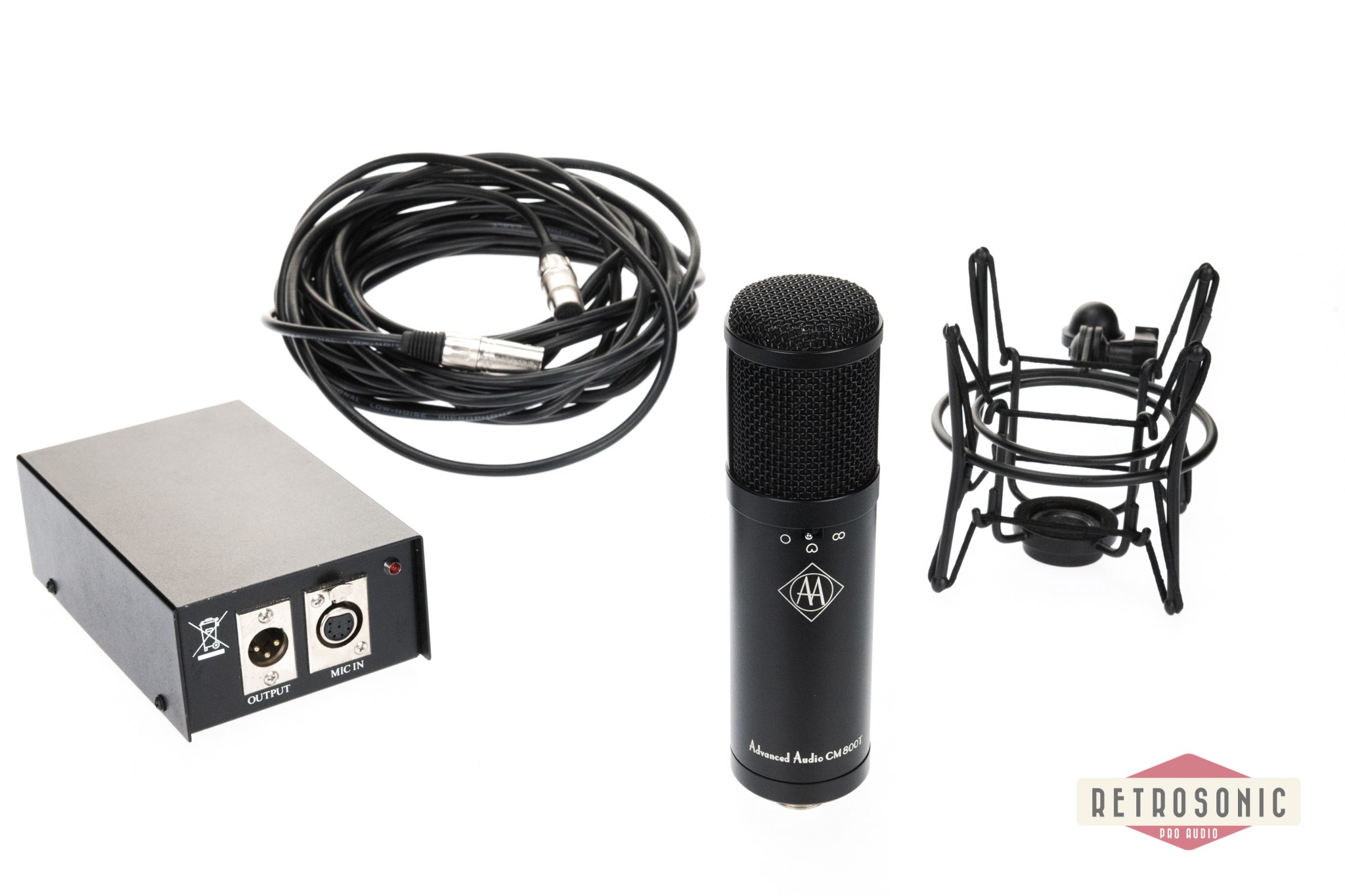

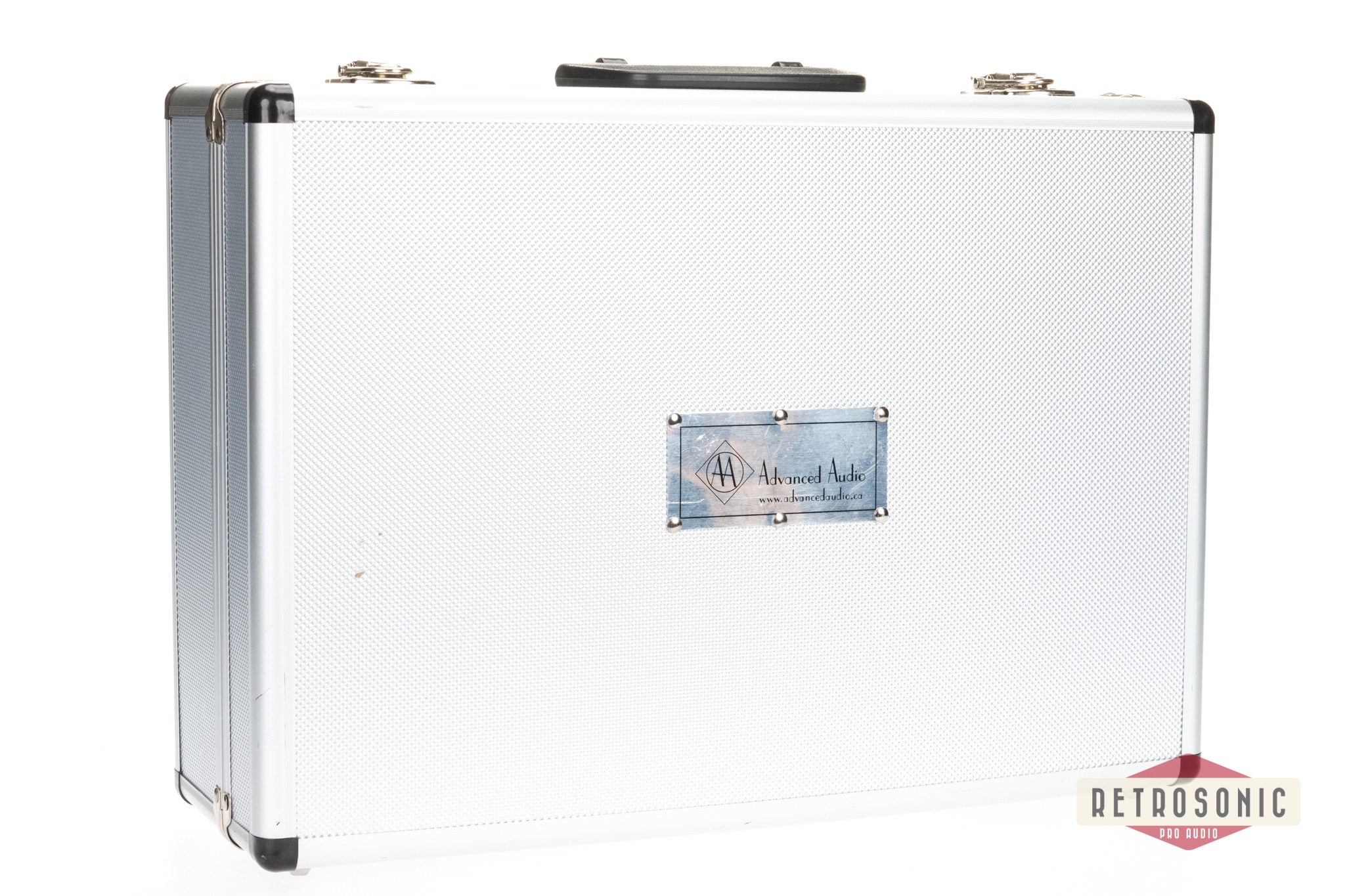

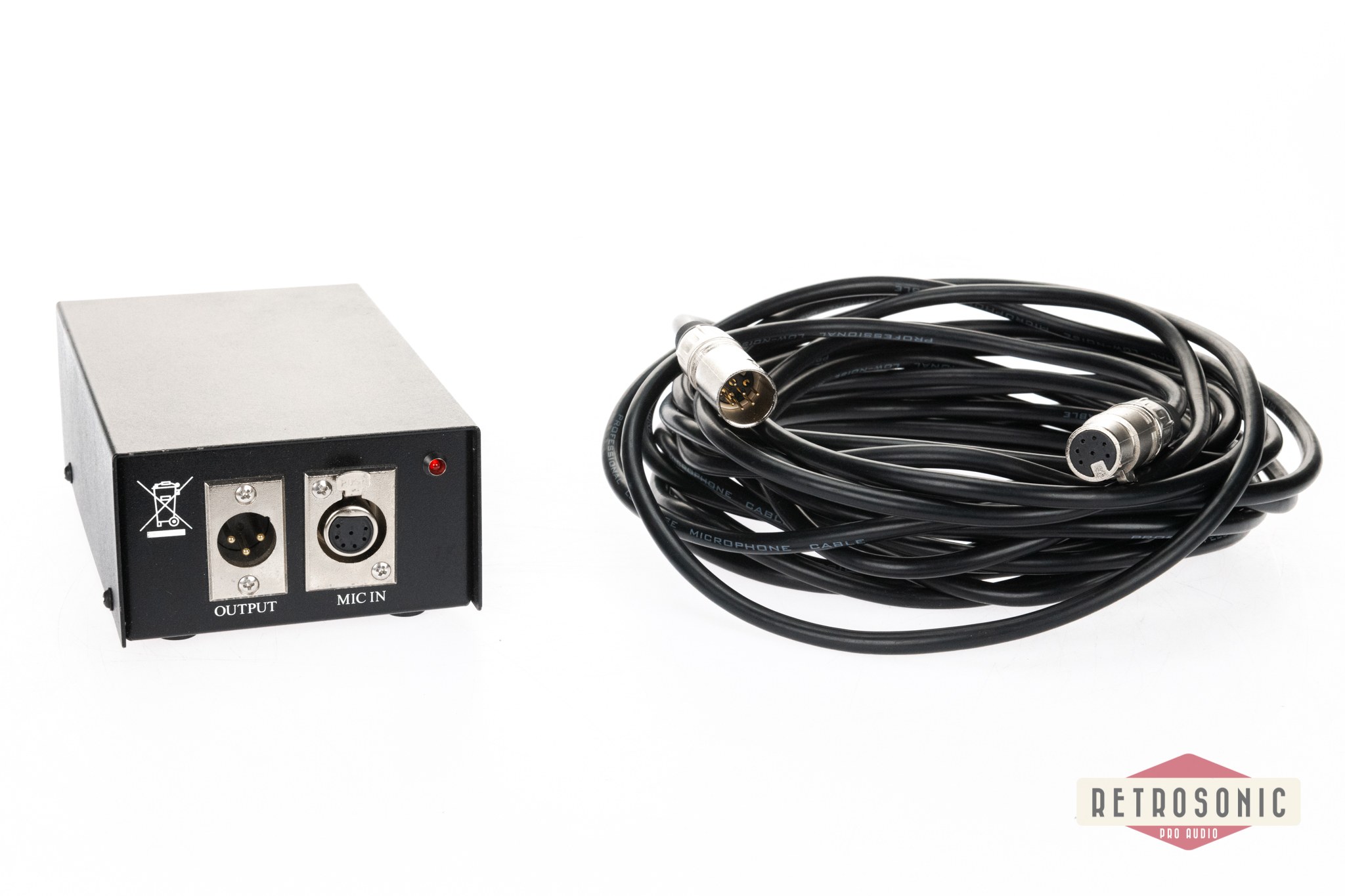

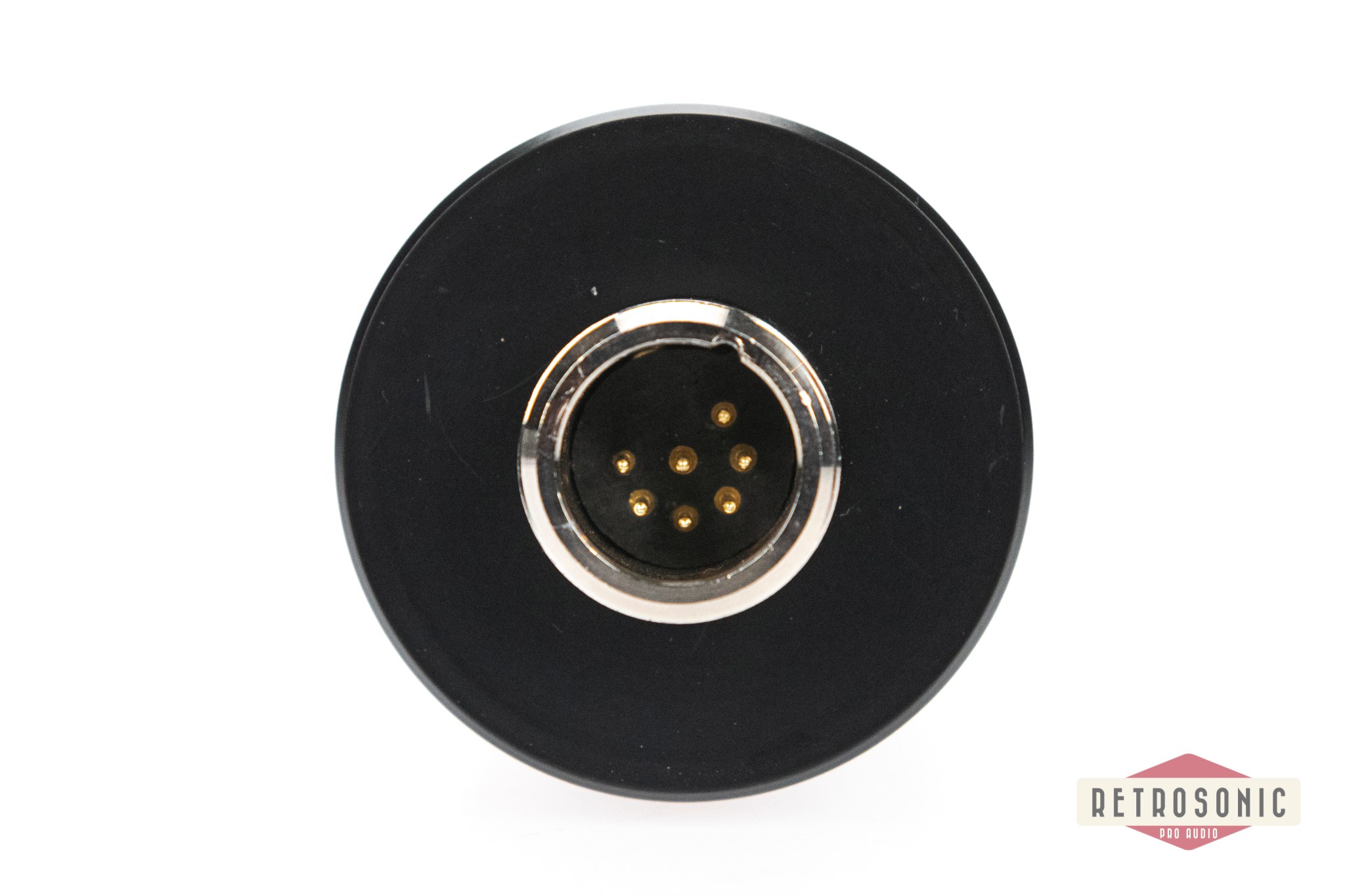

Aluminum road case, regulated power supply and 7 pin gold plated Neutrix cable
