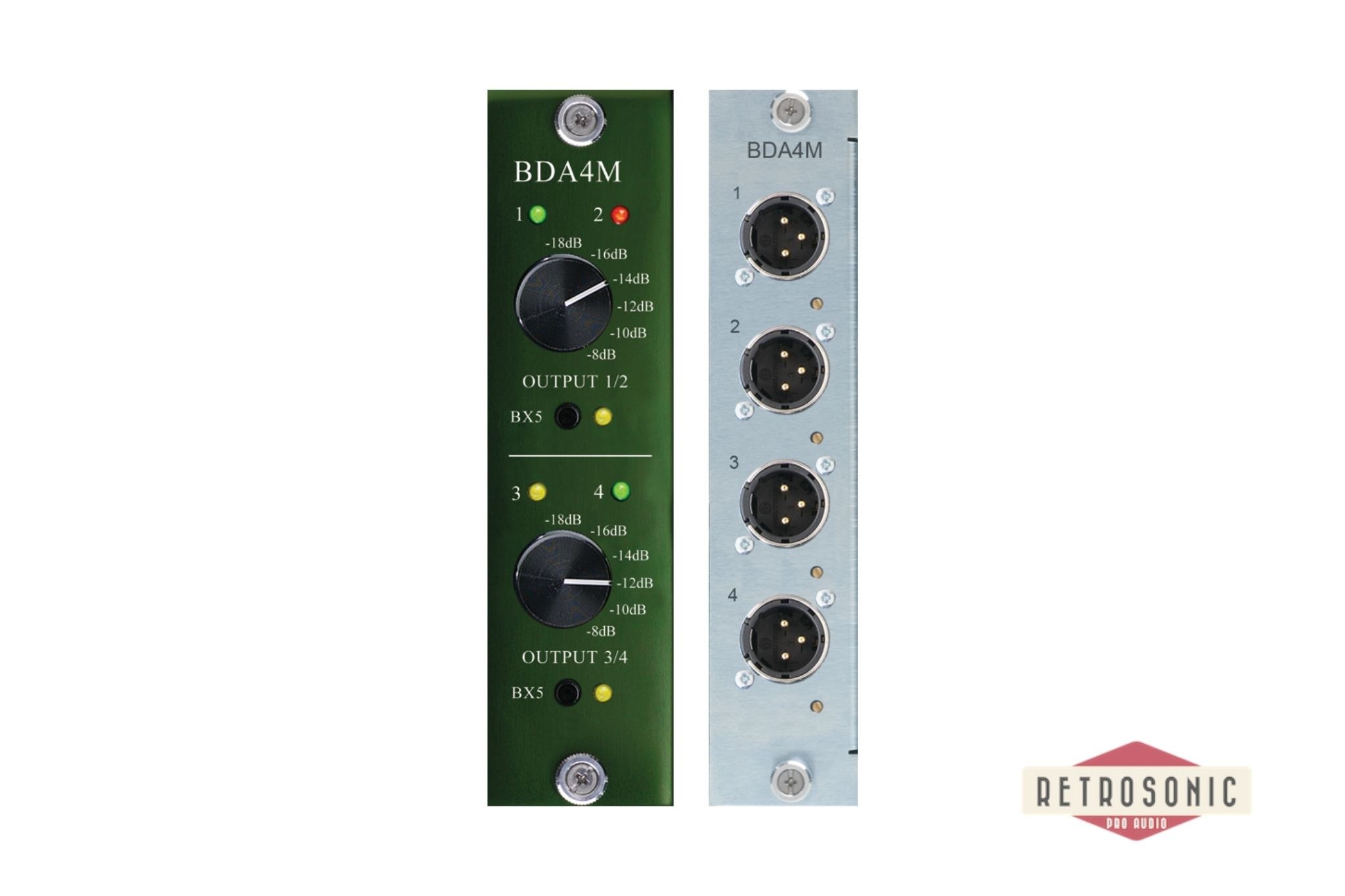

The BDA4M, switchable transformer coupled, 4-channel digital-to-analog converter Daughter Card for the B80 and B16 MOTHERSHIP is the result of over 25 years of R&D experience in pro audio digital and analog design.
Following on the success of the B2 BOMBER DAC and the BDA8 for the MOTHERSHIP, the BDA4M utilizes the newly developed BOPA14 with BURL Audio’s NextGen Analog. The BOPA14 is followed by the renowned BX5 output transformer used in the B32 VANCOUVER MIX BUS.
BDA4M Daughter Card Features:
• 4-channel MIX / MASTERING DAC
• 4-channel XLR connectivity
• All class-A, NextGen Analog BOPA14 or BOPA11 op-amps
• Switchable BX5 output transformers
• B2 DAC style stepped attenuator
• Avid delay matching
• DAC filter select
• Frequency response at 48kHz sample rate is 10Hz to 22kHz, +/- 0.1dB
• Frequency response at 96kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -0.3 dB @ 40kHz
• Frequency response at 192kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -1.5 dB @ 90kHz
• 115dB Dynamic Range
• -96dB THD+N, full scale output = +22dBU
• Rugged, Made in USA design
