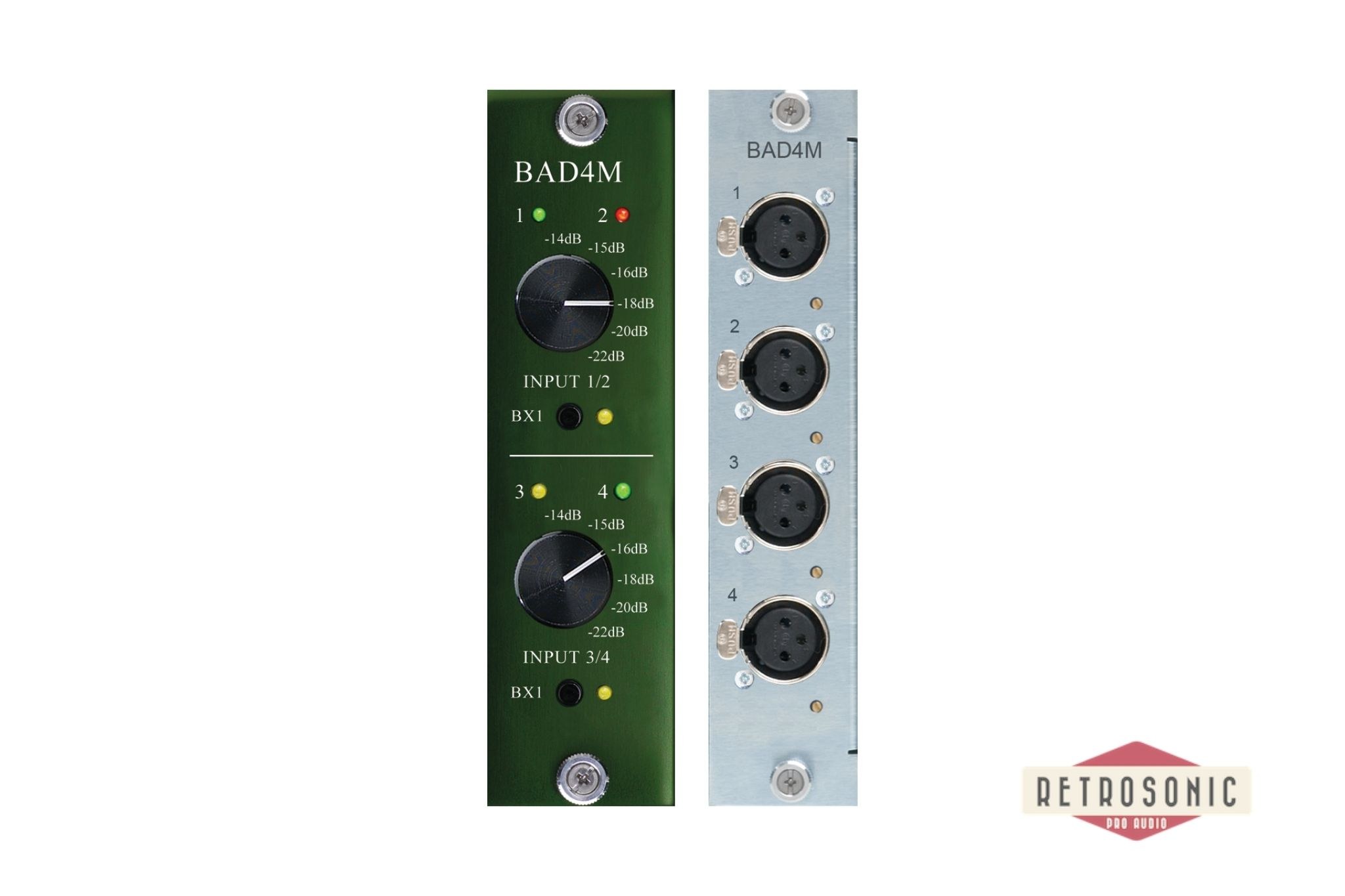

The BAD4M, a mastering grade, 4-channel ADC daughter card for the B80 and B16 MOTHERSHIP with stepped attenuators and switchable input transformers. Specifically designed for mixing and mastering, the BAD4M uses the latest BURL NextGen analog technology for superior fidelity and clarity.
BAD4M Daughter Card Features:
• 4-channel MIX / MASTERING ADC
• 4-channel XLR connectivity
• All class-A, NextGen Analog BOPA14 or BOPA11 op-amps
• Switchable BX1 input transformers
• B2 ADC style stepped attenuator
• Avid delay matching
• ADC filter select
• Frequency response at 48kHz sample rate is 10Hz to 22kHz, +/- 0.1dB
• Frequency response at 96kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -0.3 dB @ 40kHz
• Frequency response at 192kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -1.5 dB @ 90kHz
• 115dB Dynamic Range
• -96dB THD+N, full scale output = +22dBU
